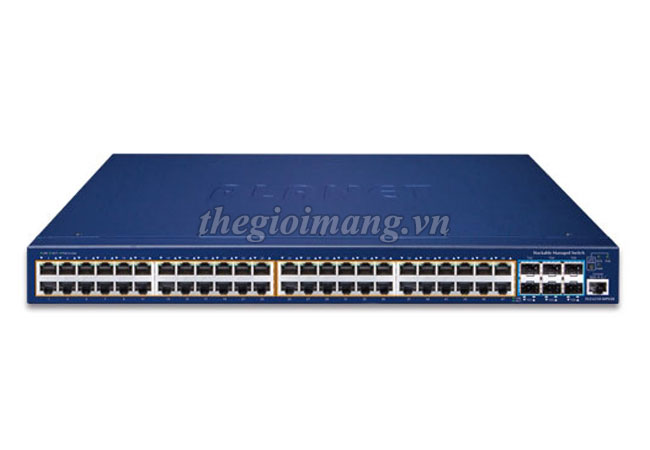

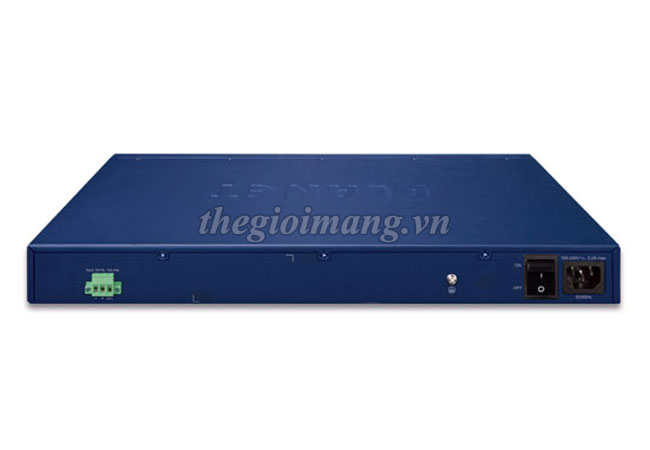

Bộ chuyển mạch L3 Stackable 48 cổng 1G PoE+ Planet SGS-6310-48P6XR
Planet SGS-6310-48P6XR là bộ chuyển mạch Layer 3 Stackable Managed Gigabit hoàn toàn mới với uplink 10Gbps, phù hợp cho nhiều ứng dụng mạng và triển khai linh hoạt, phù hợp cho các hệ thống mạng doanh nghiệp, camera IP, VoIP, hệ thống giám sát và trung tâm dữ liệu.
Thông số kỹ thuật
| Model | SGS-6310-48P6XR |
| Hardware Specifications | |
| Copper Ports | • 48 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| 10G SFP+ Ports | • 6 10GBASE-SR/LR SFP+ interface • Backward compatible with 1000BASE-X SFP transceiver |
| Console Port | • 1 x RJ45-to-RS232 serial port (9600, 8, N, 1) |
| DRAM | • 512Mbytes |
| Flash Memory | • 16Mbytes |
| Dimensions (W x D x H) | • 440 x 301 x 44mm |
| Weight | • 5200g |
| Power Consumption | • 48 watts/163.68 BTU (System) • 830 watts/2830.3 BTU (System+PoE) |
| Power Requirements- AC | • AC: 100~240V, 50/60Hz |
| Power Requirements- DC | • DC 55V |
| Fan | • 2 |
| LED | • System: SYS, PWR, PoE (Green) • Ports: 10/100/1000T RJ45 Port: LNK/ACT and PoE-in-Use (Green) 1/10G SFP+ Port: LNK/ACT (Green) |
| Switching Specifications | |
| Switch Architecture | • Store-and-forward |
| Switch Fabric | • 216Gbps/non-blocking |
| Switch Throughput | • 160.7Mpps |
| Address Table | • 32K MAC address table with auto learning function |
| ARP Table | • 2K |
| Routing Table | • 2040 |
| VLAN Interface | • 64 |
| IP Interface | • 64 |
| ACL Table | • 1024 |
| Shared Data Buffer | • 1.5MB |
| Jumbo Frame | • 9KBytes |
| Flow Control | • Back pressure for half duplex • IEEE 802.3x pause frame for full duplex |
| Power over Ethernet Specifications | |
| PoE Standard | • IEEE 802.3af/at PoE+ PSE |
| PoE Power Supply Type | • End-span |
| PoE Power Output | • Per port 54V DC, 30 watts (max.) |
| Power Pin Assignment | • 1/2(+), 3/6(-) |
| PoE Power Budget | • 370 watts (max.) AC • 740 watts (max.) DC • 740 watts (max.) AC + DC |
| IPv4 Layer 3 Functions | |
| IP Routing Protocol | • Static route • RIPv1/v2 • OSPFv2 • Hardware-based Layer 3 routing |
| Routing Features | • VRRP v1/v3 • ARP • ARP Proxy • IGMP Proxy |
| IPv6 Layer 3 Functions | |
| IP Routing Protocol | • RIPng • OSPFv3 • IPv6 LPM Routing • IPv6 Policy-based Routing (PBR) • IPv6 VRRPv3 • IPv6 RA (Router Advertisement) • Hardware-based Layer 3 routing |
| Routing Features | • Configured Tunnels • GRE Tunnel • ISATAP Tunnel,6 to 4 tunnel • Manual tunnel |
| Other | • ICMPv6, IPv6 ND |
| Layer 2 Functions | |
| Port Configuration | • Port disable/enable • Auto-negotiation 10/100/1000Mbps full and half duplex mode selection • Flow control disable/enable • Bandwidth control on each port • Port loopback detect |
| Port Status | • Display each port’s speed duplex mode, link status, flow control status and auto negotiation status |
| VLAN | • 802.1Q tagged VLAN, up to 4K VLAN groups • 802.1ad Q-in-Q (VLAN stacking) • GVRP for VLAN management • Private VLAN Edge (PVE) supported • Protocol-based VLAN • MAC-based VLAN |
| Spanning Tree Protocol | • STP, IEEE 802.1D (Classic Spanning Tree Protocol) • RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol) • MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN) • Supports BPDU and root guard |
| Multicast | • IPv4 IGMP v1/v2/v3 snooping • Querier mode support • IPv6 MLD v1 snooping • Multicast VLAN Register (MVR) • Up to 1024 multicast groups (IPv4 + IPv6) |
| Link Aggregation | • IEEE 802.3ad LACP/static trunk • Supports 64 groups with 8 ports per trunk group |
| Bandwidth Control | • TX/RX/Both • At least 64Kbps step |
| QoS | • 8 priority queues on all switch ports • Supports strict priority and Weighted Round Robin (WRR) CoS policies • Traffic classification: CAR, HQoS, MAC/IP/TCP/UDP IEEE 802.1p CoS/ToS IPv4/IPv6 DSCP Port-based WRR Tail-Drop, WRED, flow monitoring and traffic shaping |
| Ring | • Supports ITU-G G.8032 ERPS • Recovery time < 10ms @ 3units • Recovery time < 50ms @ 16units |
| Security Functions | |
| Access Control List | • Supports Standard and Expanded ACL • IP-based ACL/MAC-based ACL • Time-based ACL • Up to 1024 entries |
| Security | • Port isolation, Port security, • “IP+ MAC+ port” binding • MAC sticky DAI & IP source guard, PPPoE+ • L2/L3/L4 ACL flow identification • Filtration Anti-attack from DDo S, TCP’s SYN Flood, UDP Flood • Broadcast / multicast / unknown unicast storm-control • Supports MD5, SHA-256, RSA-1024, AES256 |
| AAA Authentication | • TACACS+ and IPv4/IPv6 over RADIUS |
| Network Access Control | • IEEE 802.1x port-based network access control • MAC-based authentication • RADIUS/TACACS authentication |
| Switch Management Functions | |
| System Configuration | • Console and Telnet • Web browser • SNMP v1, v2c |
| Secure Management Interfaces | • SSHv1/v2, TLSv1.2 and SNMPv3 |
| System Management | • Supports both IPv4 and Ipv6 addressing • Supports the user IP security inspection for Ipv4/Ipv6 SNMP • Supports MIB and TRAP • Supports RMON 1, 2, 3, 9 four groups • Supports IPv4/IPv6 FTP/TFTP • Supports IPv4/IPv6 NTP • Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password • The right configuration for users to adopt RADIUS server’s shell management • Supports Security IP safety net management function: avoid unlawful landing at nonrestrictive area • Supports IPv4 and IPv6 DHCP server |
| Event Management | • Supports Syslog server for IPv4 and IPv6 |
| Hardware Stacking | • 8 members max. • 2 10G SFP+ slots are functioned as Stacking Up and Down interfaces |
| Hardware Stacking Compatibility List | • SGS-6310-24T4X • SGS-6310-24P4X • SGS-6310-16S8C4XR • SGS-6310-48T6X • SGS-6310-48P6XR |
| SNMP MIBs | • RFC 1213 MIB-II • RFC 1215 Internet Engineering Task Force • RFC 1271 RMON • RFC 1354 IP-Forwarding MIB • RFC 1493 Bridge MIB • RFC 1643 Ether-like MIB • RFC 1907 SNMP v2 • RFC 2011 IP/ICMP MIB • RFC 2012 TCP MIB • RFC 2013 UDP MIB • RFC 2096 IP forward MIB • RFC 2233 if MIB • RFC 2452 TCP6 MIB • RFC 2454 UDP6 MIB • RFC 2465 IPv6 MIB • RFC 2466 ICMP6 MIB • RFC 2573 SNMP v3 notify • RFC 2574 SNMP v3 vacm • RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB) • RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB) |
| Standard Conformance | |
| Regulatory Compliance | • FCC Part 15 Class A, CE |
| Standards Compliance | • IEEE 802.3 10BASE-T • IEEE 802.3u 100BASE-TX • IEEE 802.3z Gigabit 1000BASE-SX/LX • IEEE 802.3ab Gigabit 1000BASE-T • IEEE 802.3ae 10Gb/s Ethernet • IEEE 802.3x flow control and back pressure • IEEE 802.3ad port trunk with LACP • IEEE 802.1D Spanning Tree Protocol • IEEE 802.1w Rapid Spanning Tree Protocol • IEEE 802.1s Multiple Spanning Tree Protocol • IEEE 802.1p Class of Service • IEEE 802.1Q VLAN tagging • IEEE 802.1X port authentication network control • IEEE 802.1ab LLDP • IEEE 802.3af Power over Ethernet • IEEE 802.3at Power over Ethernet PLUS • RFC 768 UDP • RFC 783 TFTP • RFC 791 IP • RFC 792 ICMP • RFC 2068 HTTP • RFC 1112 IGMP v1 • RFC 2236 IGMP v2 • RFC 3376 IGMP v3 • RFC 2710 MLD v1 • RFC 2328 OSPF v2 • RFC 1058 RIP v1 • RFC 2453 RIP v2 • ITU-T G.8032 ERPS Ring |
| Environment | |
| Operating | • Temperature: 0 ~ 50 degrees C • Relative Humidity: 10 ~ 90% (non-condensing) |
| Storage | • Temperature: -20 ~ 70 degrees C • Relative Humidity: 5 ~ 95% (non-condensing) |
