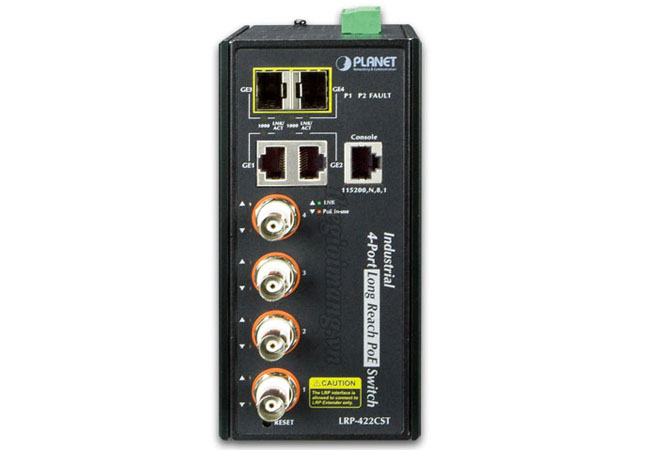

Thiết bị chuyển mạch Công nghiệp Planet LRP-422CST
| Model | LRP-422CST | ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hardware Specifications | |||||||||||||||||||||||||||||||
| Ethernet Interfaces | ■ Copper • 2 x 10/100/1000BASE-T RJ45 • Auto-negotiation/Auto-MDI/MDI-X ■ Fiber Optic • 2 x 100/1000BASE-X SFP slot • Supports 100/1000Mbps dual mode and DDM ■ Jumbo Frame • 10Kbytes with GE1 to GE4 |
||||||||||||||||||||||||||||||
| Long Reach PoE Interfaces | ■ Connectivity • 4 x BNC female connectors • Long Reach PoE over coaxial PSE (Power Source Equipment) - BNC center pole : DC+/Hi - BNC shield : DC -/Lo ■ Power Output • Per port 48~56V DC, 36 watts (max.) ■ Total Power Budget • 150 watts (max.) ■ Cabling • Coaxial cable: 75 ohm • RG-6/U cable (Recommended) ■ Maximum Distance • Max. 200m with PoE+ output (1,640ft.) • Max. 400m with PoE output (2,624ft.) • Max. 1200m without PoE output (3,937ft.) ■ Long Reach Ethernet Standard • IEEE 1901 ■ Modulation Type • Wavelet-OFDM ■ Security • 128-bit AES encryption ■ Frequency Band • 2 ~ 28MHz ■ Performance
** TX: The LRP-422CST to the LRP-101CE RX: The LRP-101CE to the LRP-422CST ■ Multiple Nodes • Up to 4 LRP extenders within 1km RG-6/U coaxial cable* * The actual extender nodes vary on the quality of the copper wire and environmental factors. ■ LRP Compatibility • LRP-101CE: 1-Port 10/100TX PoE PSE + 1-Port Coax Long Reach PoE Extender |
||||||||||||||||||||||||||||||
| Console | 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) | ||||||||||||||||||||||||||||||
| Switch Architecture | Store-and-Foward | ||||||||||||||||||||||||||||||
| Switch Fabric | 8.8Gbps/non-blocking | ||||||||||||||||||||||||||||||
| Address Table | 8K entries | ||||||||||||||||||||||||||||||
| Shared Data Buffer | 4.1 megabits | ||||||||||||||||||||||||||||||
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
||||||||||||||||||||||||||||||
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
||||||||||||||||||||||||||||||
| ESD Protection | 6KV DC | ||||||||||||||||||||||||||||||
| EST Protection | 6KV DC | ||||||||||||||||||||||||||||||
| Enclosure | IP30 aluminum case | ||||||||||||||||||||||||||||||
| Installation | DIN-rail kit and wall-mount ear | ||||||||||||||||||||||||||||||
| Connector | Removable 6-pin terminal block for power input - Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
||||||||||||||||||||||||||||||
| Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC | ||||||||||||||||||||||||||||||
| Dimensions (W x D x H) | 72 x 107 x 152 mm | ||||||||||||||||||||||||||||||
| Weight | 1150g | ||||||||||||||||||||||||||||||
| Power Requirements | 48 to 56V DC | ||||||||||||||||||||||||||||||
| Power Consumption | 9.5 watts/32.42 BTU (System on) 165 watts/563.0 BTU (Full loading) |
||||||||||||||||||||||||||||||
| Environments | |||||||||||||||||||||||||||||||
| Operating | Temperature: -20 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
||||||||||||||||||||||||||||||
| Storage | Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
||||||||||||||||||||||||||||||
| Data sheet Planet LRP-422CST | ||
|---|---|---|
 |
||
| Layer 2 Functions | ||
| Port Mirroring | TX / RX / both Many-to-1 monitor |
|
| VLAN | 802.1Q tagged-based VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs 802.1ad Q-in-Q tunneling Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP |
|
| Link Aggregation | IEEE 802.3ad LACP and static trunk Supports 4 groups with 4 ports per trunk |
|
| Spanning Tree Protocol | STP/RSTP/MSTP | |
| IGMP Snooping | IGMP (v2/v3) Snooping IGMP Querier Up to 256 multicast groups |
|
| MLD Snooping | MLD (v1/v2) Snooping, up to 256 multicast groups | |
| Access Control List | IPv4/IPv6 IP-based ACL / MAC-based ACL | |
| QoS | 8 mapping IDs to 8 level priority queues - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP field in IP packet Traffic classification based, strict priority and WRR |
|
| Security | IEEE 802.1X port-based authentication Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication IP-MAC port binding MAC filter Static MAC address DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard |
|
| Management Function | ||
| Basic Management Interfaces | Web browser/Telnet/SNMP v1, v2c Firmware upgrade by HTTP/TFTP protocol through Ethernet network Remote/Local Syslog System log LLDP protocol SNTP |
|
| Secure Management Interfaces | SSH, SSL, SNMP v3 | |
| Standards Conformance | ||
| Regulatory Compliance | FCC Part 15 Class A, CE | |
