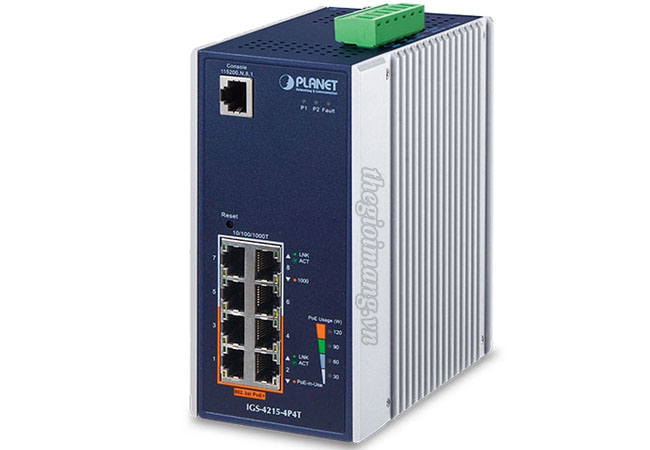

Planet IGS-4215-4P4T : Industrial 4-Port 10/100/1000T 802.3at PoE + 4-Port 10/100/1000T Managed Switch
Thiết bị chuyển mạch Công nghiệp Planet IGS-4215-4P4T
Model | IGS-4215-4P4T |
---|---|
Hardware Specifications | |
Copper Ports | Eight 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Ports 1 to 8) |
PoE Injector Port | Four ports with 802.3af/802.3at PoE+ injector function (Ports 1 to 4) |
Console | 1 x RS232-to-RJ45 serial port (115200,8, N, 1) |
Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
Connector | Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC |
Power Requirements | 48~54V DC, 6A (max.) (>51V DC for PoE+ output recommended) |
Power Consumption/ Dissipation | Max.4.32 watts/14.73BTU (system on) Max. 151 watts/514.91BTU (Full loading) |
Dimensions (W x D x H) | 76.8 x 107.3 x 152 mm |
Weight | 1000g |
Enclosure | IP30 alumium case |
Installation | DIN-rail kit and wall-mount ear |
ESD Protection | Contact Discharge 6KV DC Air Discharge 8KV DC |
Switching | |
Switch Architecture | Store-and-Forward |
Switch Fabric | 16Gbps/non-blocking |
Switch Throughput@64 bytes | 11.9Mpps@64 bytes |
MAC Address Table | 8K entries |
Shared Data Buffer | 4.1 megabits |
Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
Jumbo Frame | 10K bytes |
Power Over Ethernet | |
PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
PoE Power Supply Type | End-span |
Power Pin Assignment | 1/2(+), 3/6(-) |
PoE Power Output | IEEE 802.3af Standard Per port 48V~51V DC, max. 15.4 watts IEEE 802.3at Standard Per port 51V~54V DC, max. 36 watts |
PoE Power Budget | 144 watts (depending on power input) |
Environments & Standards | |
Operating Temperature | -40 ~ 75 degrees C |
Storage Temperature | -40 ~ 85 degrees C |
Humidity | 5 ~ 95% (non-condensing) |
Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
Regulatory Compliance | FCC Part 15 Class A, CE |
Data sheet Planet IGS-4215-4P4T
Software Funtions | IGS-4215-4P4T Industrial 4-Port 10/100/1000T 802.3at PoE + 4-Port 10/100/1000T Managed Switch (-40~75 degrees C) |
|
---|---|---|
PoE Management Functions | ||
PoE Management | PD Alive Check Scheduled Power Recycling PoE Schedule PoE Usage Monitoring PoE Extension |
|
Enhanced PoE Mode | Standard/Legacy/Force | |
Active PoE Device Live Detection | Yes | |
PoE Power Recycling | Yes, daily or predefined schedule | |
PoE Schedule | 4 schedule profiles | |
PoE Extend Mode | Yes, max. up to 250 meters | |
Layer 2 Function | ||
Port Mirroring | TX/RX/Both Many-to-1 monitor Up to 4 sessions |
|
VLAN | 802.1Q tagged VLAN 802.1ad Q-in-Q tunneling (VLAN stacking) Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Management VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs |
|
Link Aggregation | IEEE 802.3ad LACP and static trunk Supports 4 groups with 8 ports per trunk |
|
Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
|
IGMP Snooping | IPv4 IGMP snooping v2, v3 IGMP querier Up to 256 multicast groups |
|
MLD Snooping | IPv6 MLD snooping v2, v3, up to 256 multicast groups | |
Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE |
|
QoS | 8 mapping IDs to 8 level priority queues Port number 802.1p priority DSCP/IP precedence of IPv4/IPv6 packets Traffic classification based, strict priority and WRR Ingress/Egress Rate Limit per port bandwidth control |
|
Ring | Supports ERPS, and complies with ITU-T G.8032 Recovery time < 450ms |
|
Security Functions | ||
Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE Max. 256 ACL entries |
|
Port Security | IEEE 802.1X – Port-based authentication Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication |
|
MAC Security | IP-MAC port binding MAC filter Static MAC address, max. 256 static MAC entries |
|
Enhanced Security | DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard |
|
Management Functions | ||
Basic Management Interfaces | RS232 to RJ45 Console Web browser Telnet SNMP v1, v2c |
|
Secure Management Interfaces | SSHv2, TLS v1.2, SNMP v3 | |
System Management | irmware upgrade by HTTP/TFTP protocol through Ethernet network Configuration upload/download through HTTP/TFTP LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System/CloudViewer |
|
Event Management | Remote/Local Syslog System log |
