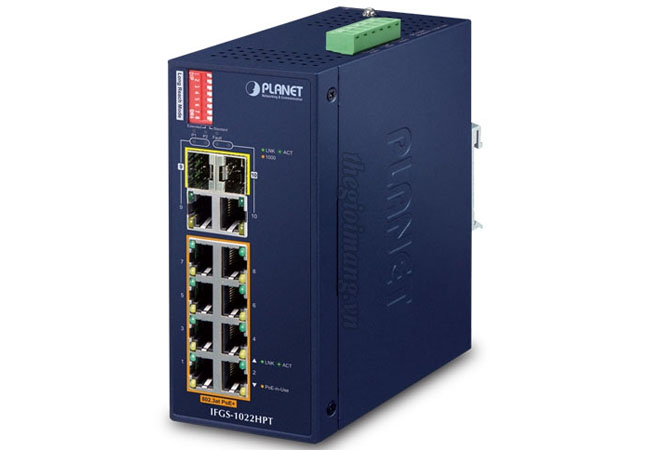

Planet IFGS-1022HPT : Industrial 8-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/ SFP combo Ethernet Switch (-40~75 degrees C)
Thiết bị chuyển mạch Công nghiệp Planet IFGS-1022HPT
Model | IFGS-1022HPT |
---|---|
Hardware Specifications | |
Fast Ethernet Copper Ports | 8 x 10/100BASE-T RJ45 auto-MDI/MDI-X ports (Port-1 to Port-8) |
Gigabit Ethernet Copper Ports | 2 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (shared with Port-9 and Port-10) |
SFP/mini-GBIC Slots | 2 x 1000BASE-SX/LX/BX SFP interfaces (Port-9 and Port-10) |
PoE Injector Port | 8-ports with 802.3af/802.3at PoE+ injector function (Port-1 to Port-8) |
Switch Architecture | Store-and-Foward |
Switch Fabric | 5.6Gbps/non-blocking |
Switch Throughput@64 bytes | 4.1Mpps @64 bytes |
MAC Address Table | 16K entries |
Shared Data Buffer | 4Mb SRAM |
Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
Jumbo Frame | 10 Kbytes |
DIP Switch (Port-1 to Port-8) | Standard mode: 30-watt PoE transmit distance of 100m at speed of 10/100Mbps Extend mode: 30-watt PoE transmit distance of 250m at speed of 10Mbps |
Connector | Removable 6-pin terminal block ■ Pin 1/2 for Power 1 ■ Pin 3/4 for power fault alarm ■ Pin 5/6 for Power 2 |
Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
Power Requirements | 48~56V DC, 5.5A (max.) (>51V DC for PoE+ output recommended) |
Power Consumption/ Dissipation | 6.4 watts, 21BTU (Standby without PoE function) at DC 56V power input 8.2 watts, 27BTU (Full loading without PoE function) at DC 56V power input 241 watts, 832BTU (Full loading with PoE function) at DC 56V power input |
Dimensions (W x D x H) | 66 x 107 x 152 mm |
Weight | 1034g |
ESD Protection | 6KV DC |
Enclosure | IP30 metal case |
Installation | DIN-rail kit and wall-mount kit |
Power over Ethernet | |
PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
PoE Power Supply Type | End-span |
Power Pin Assignment | 1/2 (+), 3/6 (-) |
PoE Power Output | IEEE 802.3af Standard - Per port 48V~51V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard - Per port 51V~56V DC (depending on the power supply), max. 30 watts |
PoE Power Budget | Dual power input: maximum 240W (depending on power input) |
Standards & Environments | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
Operating Temperature | -40 ~ 75 degrees C |
Storage Temperature | -40 ~ 85 degrees C |
Humidity | 5 ~ 95% (non-condensing) |
