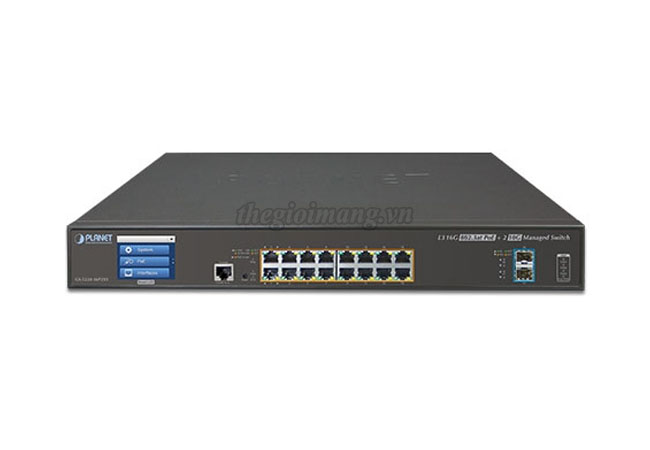

Thiết bị chuyển mạch Planet GS-5220-16P2XVR
| Model | GS-5220-16P2XVR |
|---|---|
| Hardware Specifications | |
| Copper Ports | 16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP+ Slots | 2 10GBASE-SR/LR SFP+ interfaces (Port-17 to Port-18) Compatible with 1000BASE-SX/LX/BX SFP transceiver |
| Console | 1x RS232-to-RJ45 serial port (115200, 8, N, 1) |
| Reset | < 5 sec: System reboot > 5 sec: Factory default |
| Memory Size | 512Mbytes SDRAM |
| Flash Memory | 64Mbytes |
| Dimensions (W x D x H) | 440 x 300 x 56 mm, 1.25U height |
| Weight | 4373g |
| Power Consumption | AC: Max. 271 watts/924.69 BTU DC: Max. 36.6 watts/124.88 BTU |
| Power Requirements - AC | AC 100~240V, 50/60Hz, 7A |
| Power Requirements - DC | DC 36~60V, 2A |
| ESD Protection | 6KV DC |
| Surge Protection | 4KV DC |
| Fan | 3 smart fans |
| Switching Specifications | |
| Switch Architecture | Store-and-Foward |
| Switch Fabric | 72Gbps/non-blocking |
| Throughput | 53.57Mpps@64Bytes |
| Shared Data Buffer | 32M bits |
| Power over Ethernet | |
| PoE Standard | IEEEE 802.3 af/802.3at PoE PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 53V DC, 36 watts (max.) |
| Power Pin Assignment | End-span: 1/2(-), 3/6(+) |
| PoE Power Budget | 220 watts (max.) |
| Environments | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Data sheet Planet GS-5220-16P2XVR | ||
|---|---|---|
 |
||
|
PoE Functions
|
||
| PoE Device Alive | ✔ | |
| PoE Recycled | ✔, daily or pre-schedule | |
| PoE Schedule | 4 schedule profiles | |
| Layer 2 Management Functions | ||
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable |
|
| Port Status | Display each port’s speed duplex mode, link status, flow control status and auto-negotiation status, trunk status | |
| Port Mirroring | TX/RX/Both Many-to-1 monitor |
|
| VLAN | 802.1Q tagged VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Muticast VLAN registration) Up to 255 VLAN groups, out of 4095 VLAN IDs |
|
| Link Aggregation | IEEE 802.3ad LACP/static trunk 9 groups with 2 ports per trunk |
|
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) |
|
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching: - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP/ToS field in IP packet |
|
| IGMP Snooping | IPv4 IGMP (v1/v2/v3) snooping IPv4 IGMP querier mode support Supports 255 IGMP groups |
|
| MLD Snooping | IPv6 MLD (v1/v2) snooping, IPv6 MLD querier mode support Supports 255 MLD groups |
|
| Access Control List | IP-based ACL/MAC-based ACL ACL based on: - MAC Address - IP Address - Ethertype - Protocol Type - VLAN ID - DSCP - 802.1p Priority Up to 256 entries |
|
| Bandwidth Control | Per port bandwidth control Ingress: 100Kbps~1000Mbps Egress: 100Kbps~1000Mbps |
|
| Layer 3 Functions | ||
| IP Interfaces | Max. 128 VLAN interfaces | |
| Routing Table | Max. 128 routing entries | |
| Routing Protocols | IPv4 OSPFv2 IPv4 hardware static routing IPv6 hardware static routing |
|
| Management | ||
| Basic Management Interfaces | Console, Telnet, Web browser, SNMP v1, v2c; 2.40unch color LCD touch screen | |
| Secure Management Interfaces | SSHv1/v2, TLS v1.2, SSL, SNMPv3 | |
