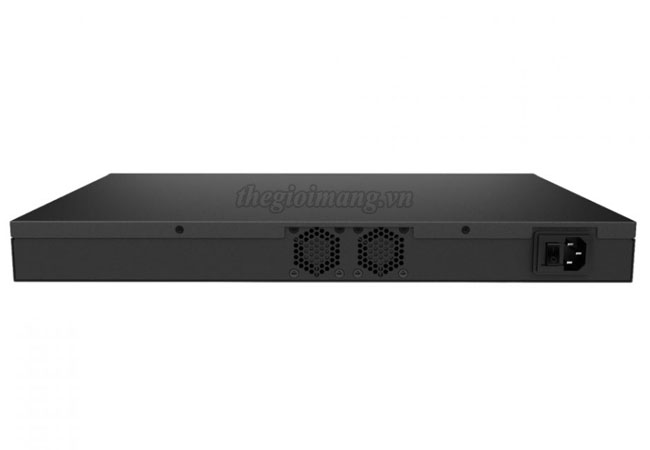

Peplink Balance 580X (BPL-580X)

Thiết bị Router Cân bằng tải Peplink Balance 580X (BPL-580X): 5x GE WAN ports and 3x GE LAN ports. SpeedFusion capable ● 1x USB WAN, 1x Expansion Module ● Hỗ trợ LTE và 5G để dự phòng hoặc cân bằng tải lưu lượng ● Hỗ trợ LAN WAN bypass cùng với công nghệ SpeedFusion ● Dùng cho hệ thống: 30-1000 users.
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị Router Cân bằng tải Peplink Balance 580X (BPL-580X)

Product Code BPL-580X
Ethernet WAN Ports 5 (GE)
LAN Ports 3 (GE)
USB WAN Modem Port 1
Expansion Modules (option) 1
Recommended Users 300-1000
Stateful Firewall Throughput 4Gbps
Load Balancing/Failover
Drop-In Mode
Inbound Load Balancing
SpeedFusion Bandwidth Bonding
Number of PepVPN SpeedFusion Peers 50 / 100License Add-on
SpeedFusion Throughput (Encryption/
No Encryption)
500Mbps/
500Mbps
L2TP / PPTP VPN Server
IPsec VPN (Network-to-Network)
Manage Pepwave AP
Maximum Number of AP Supported 100
Manage Remote AP & Multiple Config Pro YesAdd-on
Bandwidth Usage Monitor Yes
QoS for VoIP and E-commerce Yes
User Groups Bandwidth Control Yes
Web blocking Yes
Web Filtering Blacklist Full
1U Rackmount Yes
High Availability Yes
LAN Bypass Yes
Power Input AC Input: 100V − 240V
Power Consumption 35W (for the main chassis)
Dimensions (H x W x D) 17.3 x 10.4 x1.73 inches / 440 x 265 x 44 mm
Weight 7.3 pounds / 3.3 kg
Operating Temperature 32° – 104°F | 0° – 40°C
Humidity 10% - 85% (non-condensing)
Certifications FCC, CE, RoHS

Data sheet  Peplink Balance 580X


Tùy chọn Module mở rộng cho Peplink Balance 580X

Expansion LTE-A Module (EXM-MINI-1LTEA)
Interface 1x Embedded LTE-A Cellular Modems with Redundant SIM Slots
Antenna Connector 2x SMA Cellular Antenna Connectors
Downlink/Uplink Datarate 300Mbps/50Mbps (CAT-6)
600Mbps/150Mbps (CAT-12)
Power Consumption 10W
Weight 0.83 pounds | 375 grams
Không bao gồm Antenna đi kèm
  LTE-A Module (EXM-MINI-1GLTE-G)
Interface
1x Embedded LTE-A Cellular Modems with Redundant SIM Slots
Antenna Connectors
4x SMA Cellular Antenna Connectors
Downlink/Uplink Datarate 1.2 Gbps/150 Mbps (CAT-18)
Power Consumption 10W
Weight 0.83 pounds | 375 grams
Không bao gồm Antenna đi kèm
  VDSL Module (EXM-MINI-1VDSL)
Interface 1x RJ11 Connector, 1x Status LED
Power Consumption 9W
Weight 0.44 pounds | 200 grams
  5G Cellular Modem (1x5G Module)
Interface 1x Embedded 5G Cellular Modem with Redundant SIM Slots
Antenna Connectors 4x SMA Cellular Antenna Connectors
Downlink/Uplink Datarate 5G: 4 Gbps / 700 Mbps
LTE CAT-20: 2 Gbps / 150 Mbps
Power Consumption 10W
Weight 0.83 pounds (375 grams)
Data shhet Peplink FlexModule Mini

License tính năng cho Peplink Balance 580X

Producet Code Description
SFN-LC-100 Up to 100 SpeedFusion Bonding License Key
PSC-BPL-580X-1Y 1-Year SmartCare for Balance 580X
PSC-BPL-580X-3Y 3-Year SmartCare for Balance 580X
SVL-BPL-580X-1Y 1-Year EssentialCare for Balance 580X
SVL-BPL-580X-2Y 2-Year EssentialCare for Balance 580X
