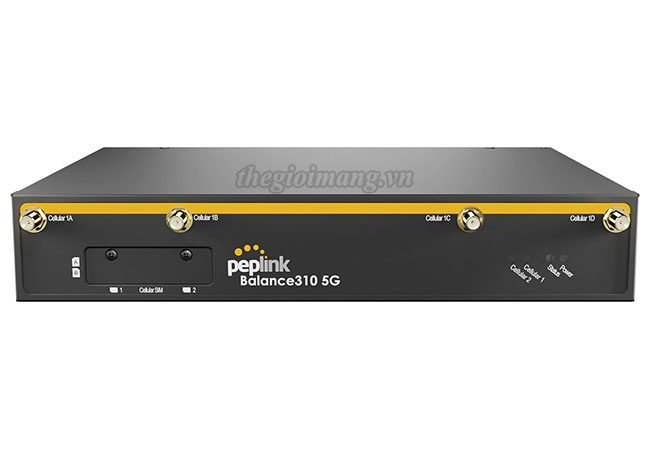

Product	BPL-310-5GD-D-T-PRM

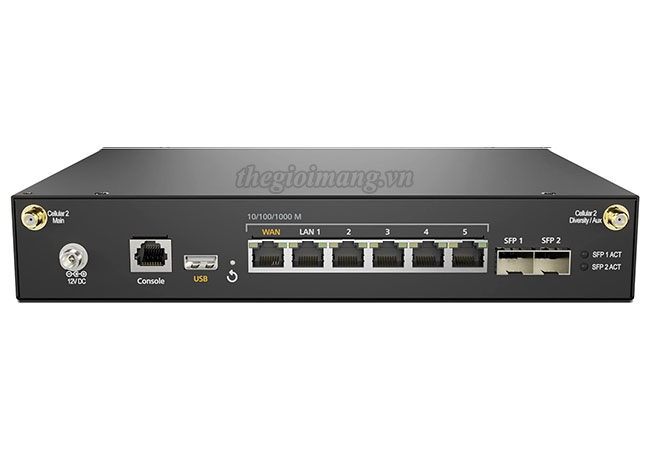

WAN Interface	1x10/100/1000M Ethernet 1x USB Interface 2x Embedded Cellular Modems with Redundant SIM Slots
LAN Interface	5x10/100/1000M Ethernet 2x SFP
Router Throughput	1 Gbps
PepVPN Throughput	No Encryption: 600 Mbps 256-bit AES: 500 Mbps
Cellular 1 Data Rate (Downlink/Uplink)	5G: 4 Gbps / 700 Mbps LTE CAT-20: 2 Gbps / 150 Mbps
Cellular 2 Data Rate (Downlink / Uplink)	LTE CAT-12: 600 Mbps / 150 Mbps
SpeedFusion Features	Hot Failover, WAN Smoothing, Bandwidth Bonding
Number of PepVPN SpeedFusion Peers	2/30
Recommended Users	50-500
Cellular Antenna Connector	6x SMA Cellular Antenna Connectors
Power Input	12V DC Connector
Power Consumption	17W (nominal), 40W (max.)
Dimensions	252 x 180 x 50 mm
Weight	1.65 kg
Operating Temperature	0°– 40°C
Humidity	10%–85% (non-condensing)
Certifications	FCC, CE, RoHS
Package Content	1x Balance 310 5G 1x 12V5A PSU 1x Power Cord (ACW-614) 6x LTE/5G Antennas (ACW-235) Rubber Foot Pad Set
Featured Add-on
PRM-E-1Y / PCP-E-1Y	1-Year PrimeCare Subscription / 1-Year PrimeCare+ Subscription
PRM-E-2Y / PCP-E-2Y	2-Year PrimeCare Subscription / 2-Year PrimeCare+ Subscription
PRM-E-4Y / PCP-E-4Y	4-Year PrimeCare Subscription / 4-Year PrimeCare+ Subscription
ACW-782	Rack Mount for Balance 310 5G / Balance 310 Fiber 5G

Data sheet Peplink Balance 310 5G

PEPLINK BALANCE 310 5G FEATURES

WAN
- Support for PPPoE, Static IP, DHCP
- WAN Link Health Check
  - PING
  - IPv6 Support
  - DNS Lookup
  - HTTP
- Bandwidth Allowance Monitor
- USB 4G/3G Modem Support
- Intelligent Failover
- Support for Dynamic DNS services
  - changeip.com
  - dyndns.org
  - tzo.com
  - DNS-O-Matic
LAN
- DHCP Server for LAN Clients
- Extended DHCP Option
- DHCP Reservation
- DNS Proxy for LAN Clients
- VLAN on LAN Support
Load Balancing
- Intelligent Failover
- Session Persistence
- Per-Service Load Distribution
- Multiple Algorithms
  - Weighted
  - Enforced
  - Persistence
  - Priority
  - Overflow
  - Least Used
  - Lowest Latency
  - Fastest Response Time
Security
- DoS Prevention
- Stateful Firewall
- Web Blocking
- Web Filtering Blacklist
Complete VPN Solution
- SpeedFusion VPN
- Site-to-Site VPN
  - Bandwidth Bonding
  - Hot Failover
  - 256-bit AES Encryption
  - Pre-shared Key Authentication
  - Dynamic Routing
- PPTP/L2TP/OpenVPN Server
  - Local User Active Directory Authentication
- IPsec VPN (Network-to-Network)
  - X.509 Certificate Support
- GRE Tunnel (Network-to-Network)
Advanced QoS
- User Groups
  - Bandwidth Reservation
  - Individual Bandwidth Limit
- Application Prioritization
  - By User Groups
  - SIP, HTTPS, VPN QoS
  - Custom Application QoS
Networking
- NAT and IP Forwarding
- Static Routes
- Port Forwarding
- Many to One, One to One NAT
- NAT Pool
- SIP ALG, H.323 ALG
- UPnP, NAT-PMP
- WINS Server
- VRRP HA Support
- BGP, OSPFv2 and RIPv2 Support
AP Controller
- Support for Pepwave AP Series
- Auto AP Discovery
- Auto AP Firmware Management
- AP Profile Configuration
- Wi-Fi Usage Statistics
Captive Portal
- Support for Wired and Wireless LAN Clients
- Support RADIUS Authentication
- Support LDAP Authentication
- Time and Usage Quotas on Open Access Mode
- Built-in Customizable Splash Page
DNS
- Built-in Authoritative DNS
- Support for A, CNAME, NS, MX, PTR, SOA, SRV, TXT records
Device Management
- Web Administrative Interface
- Command Line Interface
- InControl Cloud Management
- Email Notification
- Active Client and Session Lists
- Bandwidth Usage Statistics
- Syslog Service
- SNMP v1, v2c and v3
