Alcatel-Lucent OmniSwitch OS6900-T48-R :
Thiết bị chuyển mạch Switch Alcatel-Lucent OmniSwitch OS6900-T48-R
| Model | OS6900-T48-R |
| Port count | 48 10GBASE-T and 6 QSFP28 |
| Out-of-band Ethernet port | 1 |
| USB port | 1 |
| Console port | 1 |
| Primary slide-in PSU | 1 |
| Backup slide-in PSU | 1 |
| Redundant fans | 4+1 |
| CPU Model | Intel Atom® C3558 |
| CPU Frequencies/Type | 2.2GHz/quad-core |
| Flash Storage | 32GB |
| SDRAM | 8 GB |
| Data buffer | 32 MB |
| Max switching | 2.16 Tb/s |
| Capacity | Non-blocking |
| Forwarding rates | 1607 Mpps |
| Latency | <650 ns |
| Power consumption | 323 W |
| Heat Dissipation | 1101 Btu/h |
| Mean time Between failures (MTBF) with AC power Supply | 372,562 h |
| MTBF with DC power supply | 385,000 h |
| Width | 44.3 cm |
| Depth | 47.33 cm |
| Height | 4.4 cm |
| Weight (chassis & fan) | 7.438 kg |
| Shipping weight | 10.7 kg |
| Operating Temperature | 0°C to 45°C |
| Front-to-rear Airflow | 55°C shutdown |
| Rear-to-front Airflow | 55°C shutdown |
| Storage Temperature | -10°C to 70°C |
| Humidity (operating) | 5% to 95% non-condensing |
| Humidity (storage) | 5% to 95% non-condensing |

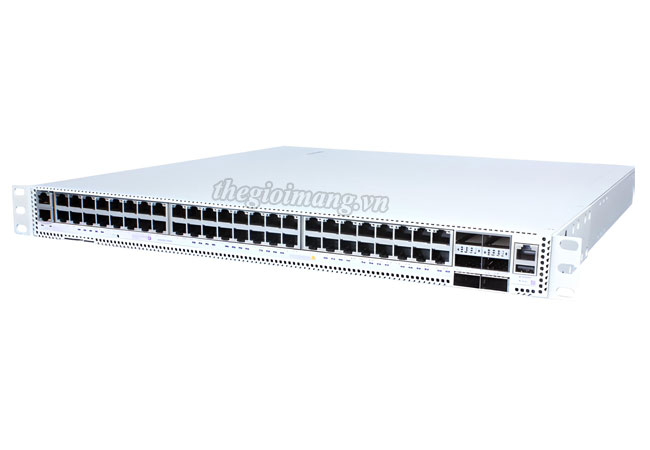

OS6900-T48-R : OS6900-T48C6 10Gigabit/100Gigabit Ethernet L3 fixed configuration chassis in a 1RU form factor with 48 1/10G 10GBASET ports and 6 40/100G QSFP28 ports. All QSFP28 ports operate as single 40/100GE port and 2 ports support splitter mode to 4x10GE or 4x25GE. Console and Ethernet management ports are RJ45. Rear to Front cooling. The chassis includes two 400W AC power supplies. The bundle ships with user manuals access card and rack mounts.
Data sheet Alcatel-Lucent OmniSwitch 6900 Core and Data Centre LAN Switches
