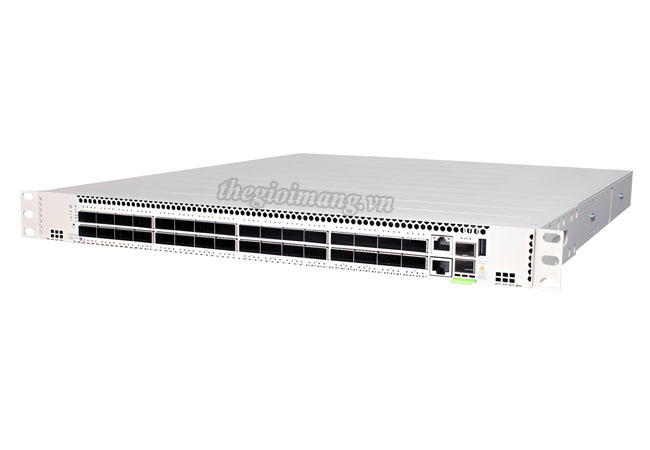

Alcatel-Lucent OmniSwitch OS6900-C32E-D-F :
Thiết bị chuyển mạch Switch Alcatel-Lucent OmniSwitch OS6900-C32E-D-F
| Model | OS6900-C32E-D-F |
| Port count | 32 (QSFP28) |
| Out-of-band Ethernet port | 1 |
| USB port | 1 |
| Console port | 1 |
| Primary slide-in PSU | 1 |
| Backup slide-in PSU | 1 |
| Redundant fans | 5+1 |
| CPU Model | Intel Xeon® D-1518 |
| CPU Frequencies/Type | 2.2GHz/quad-core |
| Flash Storage | 32GB |
| SDRAM | 8 GB |
| Data buffer | 32 MB |
| Max switching | 6.4 Tb/s |
| Capacity | Non-blocking |
| Forwarding rates | 4761 Mpps |
| Latency | <600 ns |
| Power consumption | 360 W |
| Heat Dissipation | 1228 Btu/h |
| MTBF with DC power supply | 382,763 h |
| Width | 43.8 cm |
| Depth | 51.5 cm |
| Height | 4.4 cm |
| Weight (chassis & fan) | 6.663 kg |
| Shipping weight | 10.48 kg |
| Operating Temperature | 0°C to 45°C |
| Front-to-rear Airflow | 55°C shutdown |
| Rear-to-front Airflow | 55°C shutdown |
| Storage Temperature | -10°C to 70°C |
| Humidity (operating) | 5% to 95% non-condensing |
| Humidity (storage) | 5% to 95% non-condensing |
OS6900-C32E-D-F : OS6900-C32E 100 Gb Ethernet L3 fixed configuration chassis in a 1RU form factor with 32 QSFP28 ports. Ports operate as single 40/100GigE port or Quad-10/25GigE. Front-to-back cooling. The chassis includes two modular DC power supplies. The bundle ships with a user manuals access card, and rack mounts.
Data sheet Alcatel-Lucent OmniSwitch 6900 Core and Data Centre LAN Switches
