Thiết bị chuyển mạch Alcatel-Lucent OmniSwitch OS6865-U12XD
| Model | OS6865-U12XD |
| Gigabit ports (RJ45) | 4 |
| SFP ports | 6 |
| 1G/10G SFP+ ports | 2 |
| 75W HPOE/POE+ ports | 4 |
| Operating temperature* | -40° C to 74° C (-40° F to 165° F) |
| Fans | 0 |
| File system flash | 2 GB |
| RAM | 2 GB |
| Altitude | 13,000 ft |
| Storage temperature | -40° C to 85° C (-40° F to 185° F) |
| Humidity (operating & storage) | 5% to 95% non-condensing |
| USB port | 1 |
| Console port | 1 |
| Max raw fabric capacity | 224 Gb/s |
| Switching capacity | 60 Gb/s |
| Weight (no PS attached) | 5.17 Kg (11.40lb) |
| Height | 8.81 cm (3.47 in) |
| Width | 21.56 cm (8.49 in) |
| Depth (no PS attached) | 26 cm (10.24 in) |
| 1588v2 Capable Ports | 12 |
| 20G QSFP+ VFL ports | 0 |
| Maximum PoE Budget** | 300 W |
| Installation Options | DIN/wall/panel, 19” rack |
| Power Consumption (idle)*** | 29 W |
| Power Consumption (full load)*** | 35.9 W |
| Heat Dissipation (BTU/hr)*** | 98.9 |
| Maximum surge protection on ports**** | 6 KV |
| MTBF (with 1 AC power supply) | 827, 848 h |
| MTBF (with 2 AC power supply) | 1,141,692 h |
| * With airflow. In a sealed enclosure, without airflow, -40° C to +65 ° C ** With 2 x AC or 2 x DC (48 V input) power supplies operating at -40° C to 60° C. Please refer to HW user’s guide for more information on PoE budget. *** Power consumption measured at 120 VAC input. Full L2 traffic load measurement does not include PoE power consumption. Heat dissipation measured at idle: 1 watt ≈ 3.41214 BTU/h **** On copper ports |
|

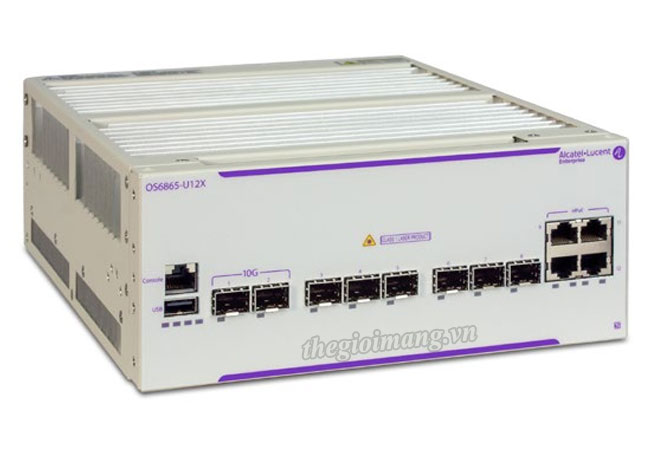

OS6865-U12XD : Hardened Gigabit Ethernet L3 fixed configuration fan-less chassis with four 100/1000 Base-X SFP ports, two 1000 Base-X SFP ports, four 10/100/1000 Base-T 75W HPoE ports, two SFP+ (1G/10G) ports, RS-232 Console (RJ45) and USB port. The bundle includes the chassis pre-installed with fully featured AOS software & advanced IP routing SW (IPv4/IPv6), one DC power supply, user manuals access card, power tray and hardware for mounting in a 19” rack.
Data sheet Alcatel-Lucent OmniSwitch 6865 Hardened Ethernet switches
