OmniSwitch OS6860E-U28

Bộ chuyển mạch quang Alcatel-Lucent OmniSwitch OS6860E-U28 :

  • 28 100/1000 Base-X SFP ports,
  • four fixed SFP+ (1G/10G) ports
  • USB, EMP, and two 20G VFL/stacking ports.
  • one AC power supply
  • mounting in a 19” rack
  • and a micro-USB-to-USB console adapter
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị chuyển mạch quang Alcatel-Lucent OmniSwitch OS6860E-U28

Model Product OS6860E-U28
Gigabit port count  28
1G/10G SFP+  4
20G QSFP+ VFL ports  2
USB port  1
Out-of-band EMP port  1
RS-232 port  1
Console port  1
Primary slide-in PSU slot 1
Backup slide-in PSU slot 1
Fans  0
File system flash  2 GB
RAM  2 GB
Max raw fabric capacity 224 Gb/s
Throughput (at 64-byte packet) 160.9 Mpps
Power consumption (idle)** 70.1 W
Power consumption (full load)** 72.2 W
Heat dissipation (idle)** 239.2 BTU/h
MTBF with AC power supply 292,509 h
Acoustic noise (dB) at 25C 42,4
Height  4.4 cm (1.73 in)
Width  44 cm (17.33 in)
Depth  35 cm (13.78 in)
Weight (chassis and fan) 4.58 kg (10.1 lb)
Weight (fully populated)*** 5.26 kg (11.6 lb)
Altitude  13,000 ft
Operating temperature  0°C to 45°C
(32°F to 113°F)
Storage temperature  -40°C to 85°C
(-40°F to 185°F)
Humidity (operating)  5% to 95%
non-condensing
Humidity (storage)  5% to 95%
non-condensing
Power supplies  OS6860-BP
OS6860-BP-D
IEEE 802.3at PoE ports -
60 W of PoE ports  -
Air flow  Front to back

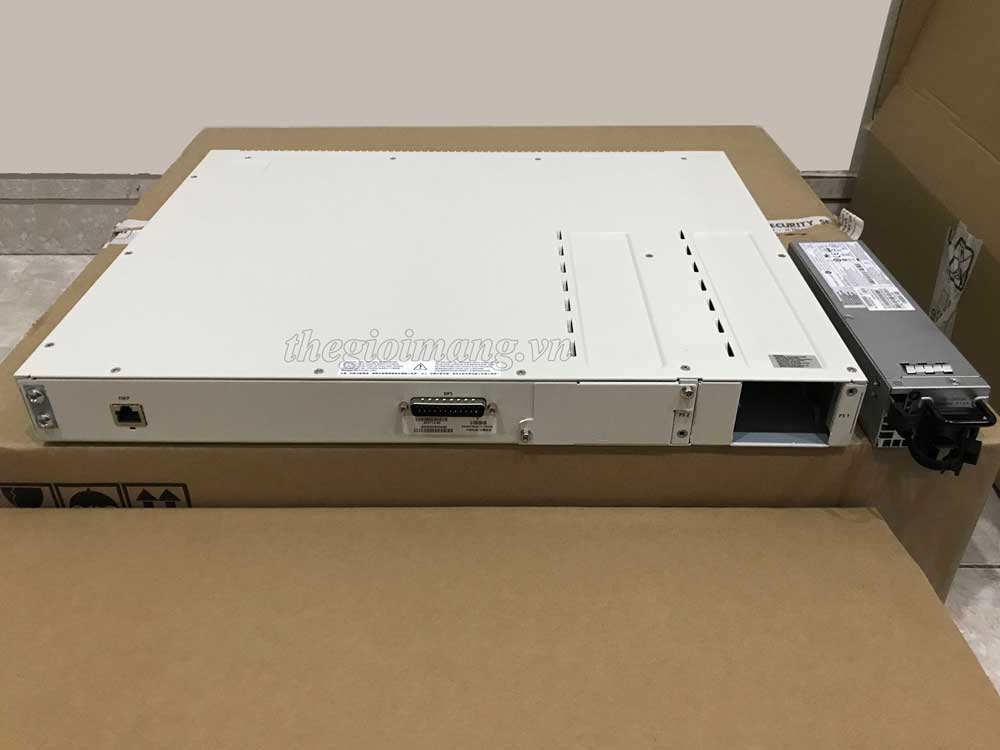

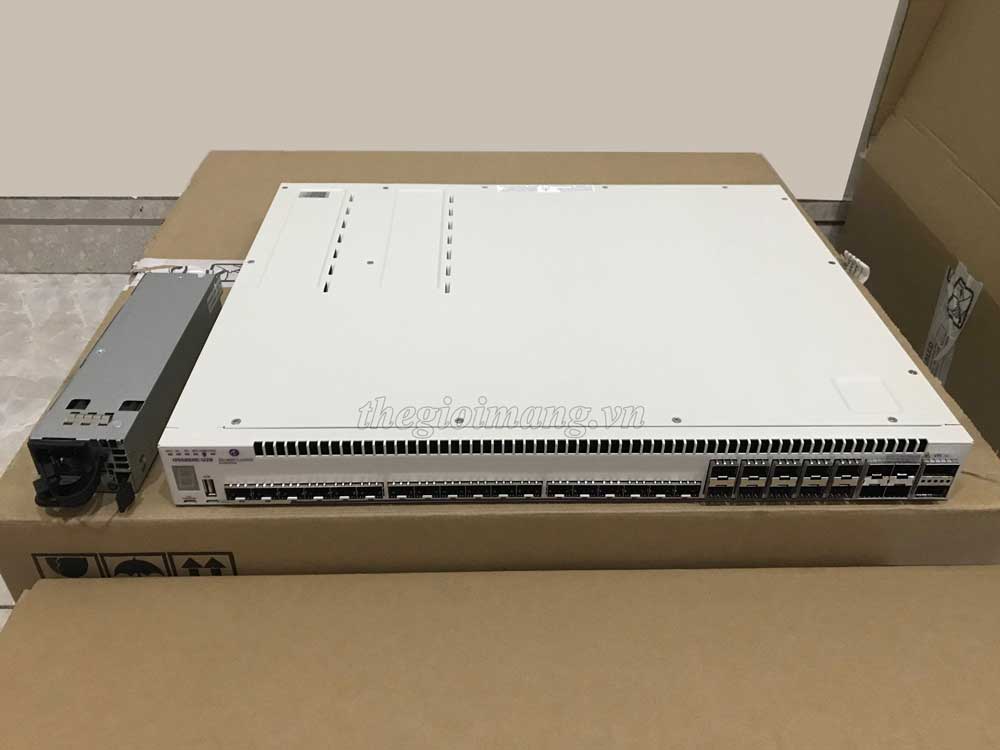

OS6860E-U28: Gigabit Ethernet L3 fixed configuration chassis in a 1U form factor with 28 100/1000 Base-X SFP ports, four fixed SFP+ (1G/10G) ports, USB, EMP, and two VFL/stacking ports. Includes a built-in co-processor for Enhanced network services. The bundle includes one AC power supply, country-specific power cord, user manuals access card, hardware for mounting in a 19” rack and a micro-USB-to-USB console adapter.

Data sheet Alcatel-Lucent OmniSwitch 6860
