Thiết bị chuyển mạch Alcatel-Lucent OmniSwitch OS6860-48D
Model | OS6860-48D |
Gigabit copper and fiber ports | 48 RJ45 |
Uplinks | 4 x 1/10G SFP+, MACsec |
USB port | 1 |
Out-of-band EMP port | None |
RS-232 port | 1 |
Console port (micro-USB) | 1 |
Fans | 0 |
Altitude | 13,000 ft |
Operating temperature | 0°C to 45°C (32°F to 113°F) |
Storage temperature | -40°C to 85°C (-40°F to 185°F) |
Humidity (operating and storage) | 5% to 95% non-condensing |
Air flow | Front-to-back |
Dimensions (H x W x D) | 4.4 cm x 44 cm x 35 cm 1.73 in x 17.32 in x 13.78 in |
Max raw fabric capacity (Aggregated) | 264 Gb/s |
Switching capacity (Aggregated) | 256 Gb/s |
Throughput | 190.6 Mpps |
File system flash | 2 GB |
DRAM | 2 GB |
VLANs | 4,000 |
MAC addresses | 48 K |
Max IPv4 routes | 64 K |
Max IPv6 routes | 6 K |
Jumbo frames | 9216 bytes |
VFL ports capacity | 42 GB/s or 84 GB/s aggregate |
Maximum number of units in a virtual chassis | 8 |
Power consumption (idle) | 41.7W |
Power consumption (full load) | 57.2W |
Heat dissipation | 195.2 BTU/h |
Acoustic noise (dB) @ 25°C | 45.8 |
MTBF | 385,181 h |
Weight (chassis and fan) | 4.67 kg (10.3 lb) |
Weight (fully populated) | 5.40 kg (11.9 lb) |

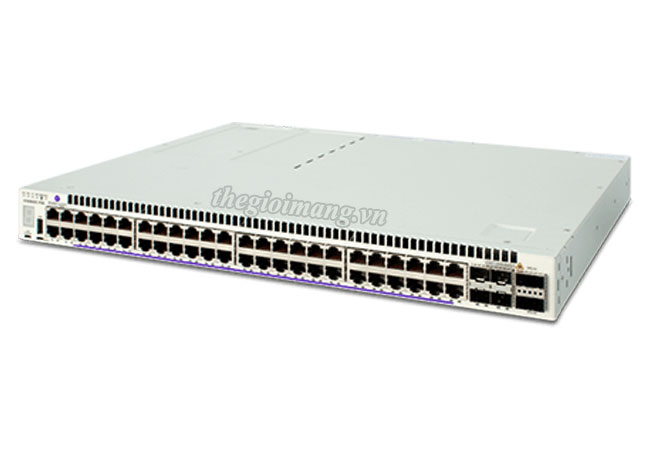

OS6860-48D : Gigabit Ethernet L3 fixed configuration chassis in a 1U form factor with 48 RJ-45 10/100/1000 Base-T ports, four fixed SFP+ (1G/10G) ports, USB, and two VFL/stacking ports. The bundle includes one DC power supply, user manuals access card, hardware for mounting in a 19” rack and a micro-USB-to-USB console adapter.
Data sheet Alcatel-Lucent OmniSwitch 6860 Stackable LAN switches
