Thiết bị chuyển mạch Switch Alcatel-Lucent OmniSwitch OS6450-10M
| Model | OS6450-10M |
| RJ-45 10/100 ports | 0 |
| RJ-45 10/100/1000 ports | 8 |
| RJ-45/SFP 10/100/1000 combo ports | 2 |
| SFP uplink/stacking ports | 2 |
| PoE ports | 0 |
| Maximum units stackable | 4 |
| Dimensions | |
| Switch width | 8.50 in. (21.5 cm) |
| Switch height | 1.73 in. (4.4 cm) |
| Switch depth | 11.5 in.(29.21 cm) |
| Performance (Aggregated) | |
| Switch capacity (with 2GigE uplinks) | 20 Gb/s |
| Switch capacity (with 4GigE uplinks) | 24 Gb/s |
| Max frame rate (4GigE or 2GigE uplinks) | 35.70 Mp/s |
| Stacking capacity (2x5Gbs stacking) | 10/20 Gb/s |
| Operating conditions | |
| Operating temperature | 0°C to +45°C 32°F to +113°F |
| Storage temperature | -40°C to +75°C -40°F to +167°F |
| Humidity (operating and storage) | 5% to 95% |
| MTBF (hours) | 695,192 |
| Power supply efficiency | 85.6% |
| Fan-less design (Yes/No) | Yes |
| Acoustic (dB) | Silent |
| PoE power budget | N/A |
| Max PoE power/port (up to the power budget) | N/A |
Transceivers
| SFP-GIG-LH70 | 1000Base-LH transceiver with an LC interface for single mode fiber over 1550 nm wavelength. Typical reach of 70 km |
| SFP-GIG-LH40 | 1000Base-LH transceiver with an LC interface for single mode fiber over 1310 nm wavelength. Typical reach of 40 km |
| SFP-GIG-LX | 1000Base-LX transceiver with an LC interface for single mode fiber over 1310 nm wavelength. Typical reach of 10 km |
| SFP-GIG-SX | 1000Base-SX transceiver with an LC interface for multimode fiber over 850 nm wavelength. Typical reach of 300 m |
| SFP-GIG-BX-D | 1000Base-BX bidirectional transceiver with an LC type interface for use over single mode fiber optic on a single strand link up to 10 km point to point. Transmits 1490 nm and receives 1310 nm optical signal |
| SFP-GIG-BX-U | 1000Base-BX bidirectional transceiver with an LC type interface for use over single mode fiber optic on a single strand link up to 10 km point to point. Transmits 1310 nm and receives 1490 nm optical signal |
| SFP-100-MM | 100Base-FX transceiver with an LC interface for multimode fiber optic cable |
| SFP-100-SM15 | 100Base-FX transceiver with an LC type interface for single mode fiber optic cable up to 15 km |
| SFP-100-SM40 | 100Base-FX transceiver with an LC type interface for single mode fiber optic cable up to 40 km |
| SFP-100-BX-U | 100Base-BX bidirectional transceiver with an SC type interface for use over single mode fiber optic on a single strand link up to 20 km point to point, where the client (ONU) transmits 1310 nm and receives 1550 nm optical signal |
| SFP-100-BX-D | 100Base-BX bidirectional transceiver with an SC type interface for use over single mode fiber optic on a single strand link up to 20 km point to point, where the client (OLT) transmits 1550 nm and receives 1310 nm optical signal |

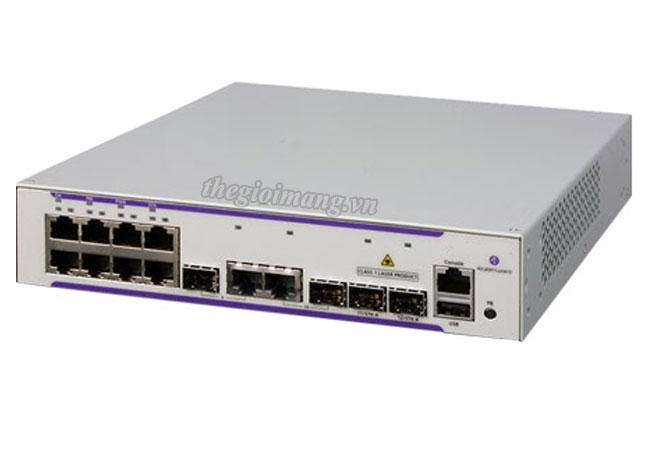

OS6450-10M : Gigabit Ethernet chassis in a 1 RU form factor with eight 10/100/1000Base-T, two 10/100/1000 RJ-45/SFP combo and two fixed SFP uplink/stacking ports. Metro ethernet services enabled by default.
Data sheet Alcatel-Lucent OmniSwitch 6450-10 Gigabit Ethernet LAN Switch
