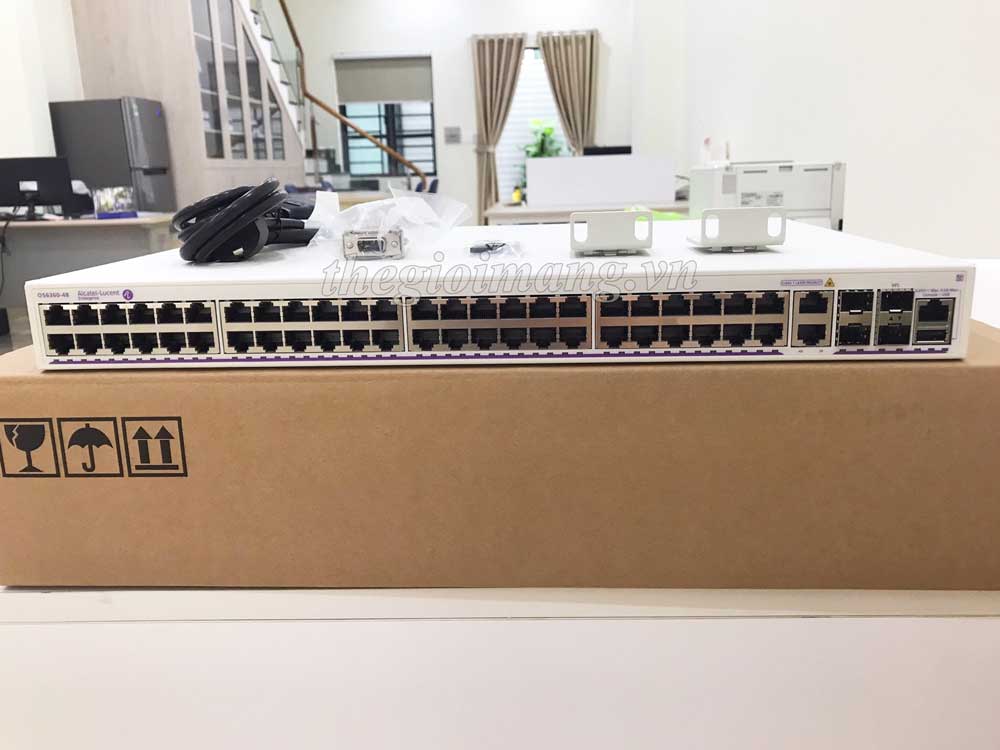

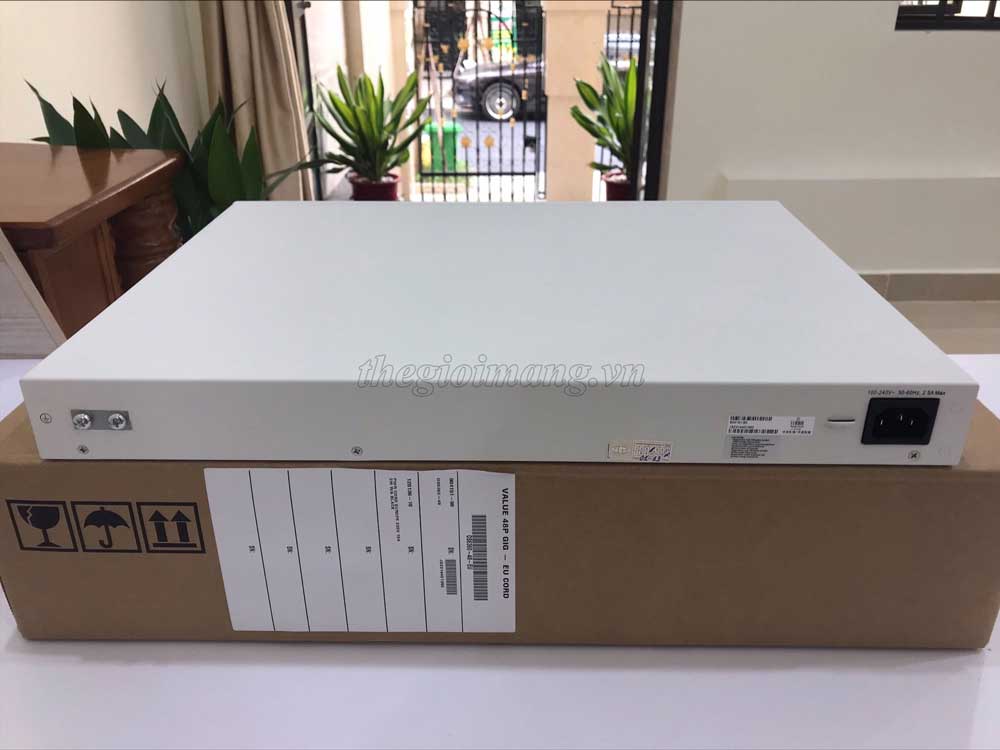

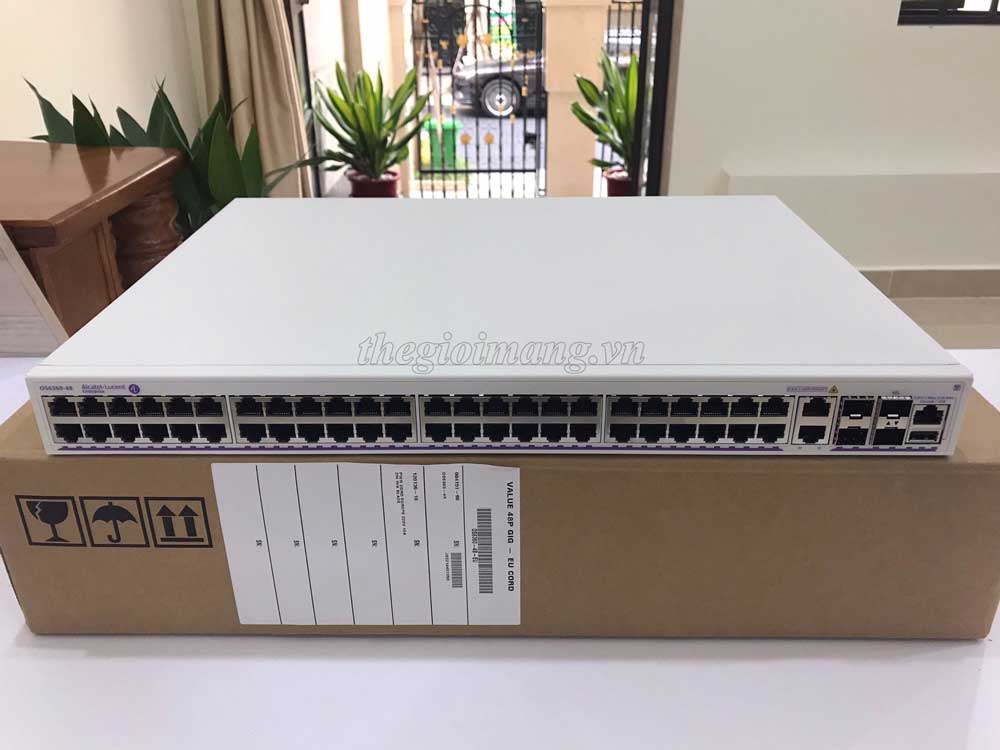

OmniSwitch OS6360-48

Bộ chuyển mạch 48 cổng Alcatel-Lucent OmniSwitch OS6360-48

  • 48 RJ-45 10/100/1G Base-T
  • 2 RJ45/SFP combo (1G)
  • 2 SFP+ (1G/10G) uplink/stacking ports.
  • CPU :  800MHz ARMv7
  • File system flash :  1 GB
  • RAM :  1 GB



  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị chuyển mạch Switch Alcatel-Lucent OmniSwitch OS6360-48

Model OS6360-48
Gigabit RJ-45 ports  48
Combo Gigabit RJ-45/SFP ports 2
Fixed SFP/SFP+ uplink or VFL ports 2 x SFP+
Console port  1
USB/OoB management port 1
Primary power  Internal
Backup power  N/A
Fans  1
CPU  800MHz ARMv7
File system flash  1 GB
RAM  1 GB
Packet buffers  1.5MB
Performance aggregated
Max switching ASIC capacity 140 Gb/S
Switch capacity with all ports (full duplex + stacking) 140 Gb/s
Switch frame rate @ 64-byte packet 208 Mpps
2x10GE VFL capacity  40 Gb/s
System power consumption - Idle : 29 W
- 100% traffic all ports (max) : 49 W
System heat dissipation 167 (BTU/h)
Power consumption w/PoE N/A
Heat dissipation w/PoE N/A
Power supply efficiency (max load) 89,40%
Acoustics (dB) @27C*  <42 db(A)
# of fans  1
MTBF (hours) @ 25C  832 k
Height  4.4 cm (1.73 in)
Width  44 cm (17.33 in)
Depth  33 cm (13 in)
Weight  4.6 kg (10.1 lbs)
Operating temperature 0°C to 45°C (32°F to 113°F)
Storage temperature  -40°C to 85°C (-40°F to 185°F)
Humidity (operating)  5% to 95% non-condensing

Transceivers and cables

SFP-GIG-T  1000Base-T Gigabit Ethernet Transceiver (SFP MSA). SFP works at 1000 Mb/s speed and full-duplex mode.
SFP-GIG-SX  1000Base-SX Gigabit Ethernet optical transceiver (SFP MSA).
SFP-GIG-LX  1000Base-LX Gigabit Ethernet optical transceiver (SFP MSA).
SFP-GIG-LH40  1000Base-LH Gigabit Ethernet optical transceiver (SFP MSA). Typical reach of 40 km on 9/125 µm SMF
SFP-GIG-LH70  1000Base-LH Gigabit Ethernet optical transceiver (SFP MSA). Typical reach of 70 km on 9/125 µm SMF
OS6360-CBL-60CM  10 Gigabit direct attached uplink/stacking copper cable (60 cm, SFP+).
OS6360-CBL-C1M  10 Gigabit direct attached uplink/stacking copper cable (1 m, SFP+)
OS6360-CBL-C3M  10 Gigabit direct attached uplink/stacking copper cable (3 m, SFP+)
SFP-10G-SR  10 Gigabit optical transceiver (SFP+). Supports multimode fiber over 850 nm wavelength (nominal) with an LC connector. Typical reach of 300 m
SFP-10G-LR  10 Gigabit optical transceiver (SFP+). Supports single mode fiber with an LC connector. Typical reach of 10 Km.
SFP-10G-ER  10 Gigabit optical transceiver (SFP+). Supports single-mode fiber over 1550 nm wavelength (nominal) with an LC connector. Typical reach of 40 km
SFP-10G-BX-D  10 Gigabit optical transceiver (SFP+) with an LC type of interface. This bi-directional transceiver is designed for use over single mode fiber optic on a single strand link up to 10 km. Transmits 1270 nm and receives 1330 nm optical signal.
SFP-10G-BX-U  10 Gigabit optical transceiver (SFP+) with an LC type of interface. This bi-directional transceiver is designed for use over single mode fiber optic on a single strand link up to 10 km. Transmits 1330 nm and receives 1270 nm optical signal

OS6360-48 : Fixed 1RU chassis 48 RJ-45 10/100/1G BaseT, 2 RJ45/SFP combo (1G), 2 SFP+ (1G/10G) uplink or VFL ports.

Data sheet Alcatel-Lucent OmniSwitch 6360 Stackable Gigabit Ethernet LAN Switch Family
