Model	AP1451 (OAW-AP1451-RW)
Radio specification	• AP type: Indoor Wi-Fi 6E (802.11ax) • Tri Radio, 6 GHz High 4x4:4, 5 GHz 8x8:8, and 2.4 GHz 4x4:4 ¬ 6 GHz High: 4x4:4 up to 4.8 Gbps wireless data rate to individual 4SS HE160 802.11ax client devices. ¬ 5 GHz: 8x8:8 up to 4.8 Gbps wireless data rate to individual 8SS HE80 or 4SS HE160(80+80) 802.11ax client devices. ¬ 2.4 GHz: 4x4:4 up to 1147 Mbps wireless data rate to individual 4SS HE40 802.11ax client devices. • 2.4/5 GHz 1x1 radio, dedicated for scanning • Bluetooth 5/Zigbee: up to 6 dBm transmit power (class 1) and -93 dBm receive sensitivity • 2x multi-Gigabit 1/2.5/5/10 Gig autosensing RJ-45 ports, Eth0-Eth1, Power over Ethernet (PoE) 802.3bt compliant • 1x USB 3.0 Type A (5V, 500mA) • Console • Reset button: Factory reset
Security	• Integrated Trusted Platform Module (TPM 2.0) for secure storage of credentials and keys • 802.11i, WPA2, WPA3, Enterprise with CNSA Option, Personal (SAE) • 802.1X • WEP, Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP) • Firewall: ACL, wIPS/wIDS and DPI application policy enforcement with OmniVista • Portal page authentication
Antenna	• Integrated omni-directional antennas with maximum antenna gain of 3.9 dBi in 2.4 GHz, 3.9 dBi in 5 GHz, 3.9 dBi in 6 GHz and 3.5 dBi in BLE
Power	• Supports direct DC power and Power over Ethernet (PoE) • When both power sources are available, DC power takes priority over PoE • Direct DC source: • 48V DC nominal, +/- 5% • Power over Ethernet (PoE): • IEEE 802.3bt compliant source • Maximum (worst case) power consumption: • 49W (input IEEE 802.3bt POE); Unrestricted functionality • 45W (input dual IEEE 802.3at POE); The USB port is disabled • 24W (input IEEE 802.3at POE); The USB port is disabled, Eth1 is disabled, tri radio downgrade to 2 x 2
Mounting	• Ceiling/wall mounting (Mount kit needs to be ordered separately)
Environment	• Operating: ¬ Temperature: 0°C to 45°C ¬ Humidity: 10% to 90% non-condensing • Storage and transportation: ¬ Temperature: -40°C to +70°C ¬ Humidity: 5% to 95% non-condensing
Dimension	• Single AP excluding packing box and accessories: ¬ 260mm (W) x 260mm (D) x 60mm (H) ¬ 2370 g • Single AP including packing box and accessories: ¬ 298mm (W) x 317mm (D) x 111mm (H) ¬ 2830 g
Reliability	• MTBF: 572,332h (65.33 years) at +25º C operating temperature
Capacity	• Up to 8 SSID/Radio (24 BSSID/AP), hardware ready for 16 SSID per radio (48 SSID/AP) • Support for up to 1536 associated client devices
Software feature	• Up to 4K APs when managed by OmniVista 2500. No limit on number of AP groups • Up to 255 APs per web managed (HTTP/ HTTPS) cluster • Auto channel selection • Auto transmit power control • Bandwidth control per SSID • L2 roaming • L3 roaming with OmniVista 2500 • Captive portal (Internal/External) • Guest self-registration optional SMS notification) with OmniVista 2500 • Internal user database • RADIUS client • Guest social-login with OmniVista 2500 • RADIUS proxy authentication with OmniVista 2500 • LDAP/AD proxy authentication with OmniVista 2500 • Wireless QoS • Band steering • Client smart load balance • Client sticky avoidance • User behavior tracking • White/Block list • Zero-touch provisioning (ZTP) • NTP Client • ACL • DHCP/DNS/NAT • Wireless MESH P2P/P2MP • Wireless Bridge • Rogue AP location and containment • Dedicated Scanning AP • System log report • SSHv2 • SNMPv2, SNMPv3 • Wireless attack detection with OmniVista 2500 • Floor plan and heat map with OmniVista 2500 • Stanley Healthcare/Aeroscout RTLS support
IEEE standard	• IEEE 802.11a/b/g/n/ac/ax • IEEE 802.11e WMM, U-APSD • IEEE 802.11h, 802.11i, 802.11e QoS • IEEE 802.1Q (VLAN Tagging) • 802.11k Radio Resource Management • 802.11v BSS Transition Management • 802.11r Fast roaming • 802.11w Protected Management Frames

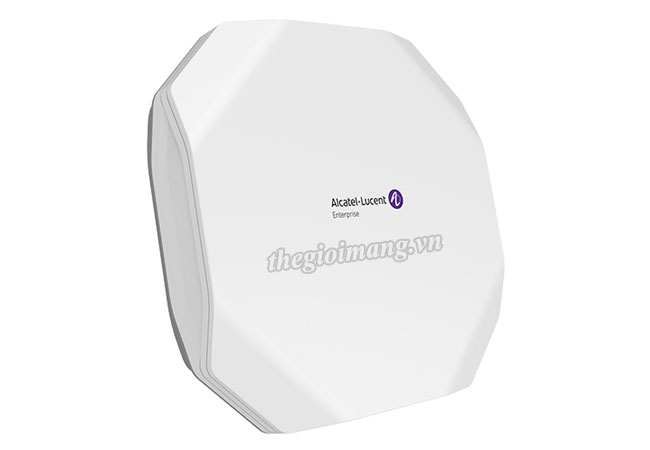

OAW-AP1451-RW : OmniAccess Stellar Indoor AP1451. Tri radio 2.4+5+6GHz 4x4+8x8+4x4 Wi-Fi6E, integrated omni antenna. 1x1 scanning, BLE/Zigbee radio. 2x 10GE up, 1x RS-232 Console, USB, 48V DC. AP mount to be ordered separately.

Data sheet Alcatel-Lucent OmniAccess Stellar AP1451
