Model	AP1331 (OAW-AP1331-RW)
Radio specifications	• AP type: Indoor Wi-Fi 6（802.11ax) • Dual Radio, 5 GHz 4x4:4 and 2.4 GHz 4x4:4 ¬ 5 GHz Low: 4x4:4 up to 2.4Gbps wireless data rate to individual 4SS HE80 or 2SS HE160/80+80 802.11ax client devices ¬ 2.4 GHz: 4x4:4 up to 1.147Gbps wireless data rate to individual 4SS HE40 802.11ax client devices
Interfaces	• 2x multi-Gigabit 1/2.5/5 Gig autosensing (RJ-45) ports, Eth0-Eth1, Power over Ethernet (PoE) 802.3bt/at compliant • 1x USB 3.0 Type A (5V, 500mA) • Management Console RJ-45 • Reset button: Factory reset
Visual indicators (Tri-colour LED)	• For system and radio status ¬ Red flashing: System abnormal, link down ¬ Red light: System startup ¬ Red and blue rotate flashing: System running, OS upgrading ¬ Blue light: System running, dual bands working ¬ Green flashing: System running, no SSID created ¬ Green light: System running, single band working ¬ Red, blue and green rotate flashing ¬ System running, use for location of an AP
Security	• Integrated Trusted Platform Module (TPM 2.0) for secure storage of credentials and keys • 802.11i, WPA2, WPA3, Enterprise with CNSA Option, Personal (SAE) • 802.1X • WEP, Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP) • Firewall: ACL, wIPS/wIDS and DPI application policy enforcement with OmniVista • Portal page authentication
Antenna	• Integrated omni-directional antennas with peak antenna gain of 3.9dBi in 2.4 GHz 4.6dBi in 5 GHz ¬ Built-in antennas are optimised for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees • Integrated BLE antenna with peak gain 3.7dBi
Power	• Supports direct DC power and Power over Ethernet (PoE) • When both power sources are available, DC power takes priority over PoE • Direct DC source: 48 V DC nominal, +/- 5% • Power over Ethernet (PoE): IEEE 802.3bt/at compliant source • Maximum (worst case) power consumption: ¬ 28W (input IEEE 802.3bt or dual IEEE 802.3at POE); Unrestricted functionality ¬ 25W (input IEEE 802.3at POE); The USB port is disabled ¬ 23W (input dual IEEE 802.3af POE); The USB port is disabled, Eth1 port is disabled ¬ 12.5W (input IEEE 802.3af POE); The USB port is disabled, Eth1 port is disabled, and dual radio downgrade to 1*1
Mounting	• Ceiling/wall mounting (Mount kit needs to be ordered separately)
Environmental	• Operating: ¬ Temperature: 0°C to 45°C ¬ Humidity: 5% to 95% non-condensing • Storage and transportation: Temperature: -40°C to +70°C
Dimensions/Weight	• Single AP excluding packing box and accessories: ¬ 210mm (W) x 210mm (D) x 40mm (H) ¬ 985g • Single AP including packing box and accessories: ¬ 238mm (W) x 237mm (D) x 69mm (H) ¬ 2828g
Reliability	• MTBF: 572,332h (65.33 years) at +25ºC operating temperature
Capacity	• Up to 16 SSID per radio (total 32 SSID) • Up to 1024 associated client devices
IEEE standard	• IEEE 802.11a/b/g/n/ac/ax • IEEE 802.11e WMM, U-APSD • IEEE 802.11h, 802.11i, 802.11e QoS • IEEE 802.1Q (VLAN Tagging) • 802.11k Radio Resource Management • 802.11v BSS Transition Management • 802.11r Fast roaming

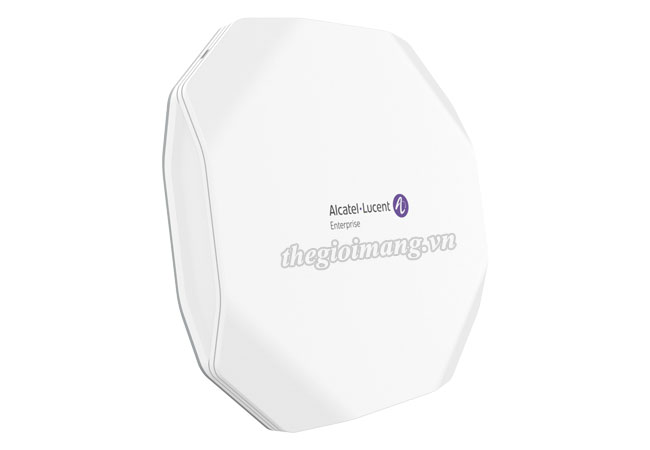

OAW-AP1331-RW : OmniAccess Stellar Indoor AP1331. Dual radio 2.4 & 5Ghz, 4x4+4x4 802.11ax, integrated omni antenna. 1x1 scanning and BLE/Zigbee radio. 2x 5GE up, 1x RS-232 Console, USB, 48V DC. AP mount to be ordered separately

Data sheet Alcatel-Lucent OmniAccess Stellar AP1331 WLAN Access Points - Indoor 802.11 ax (Wi-Fi 6)
