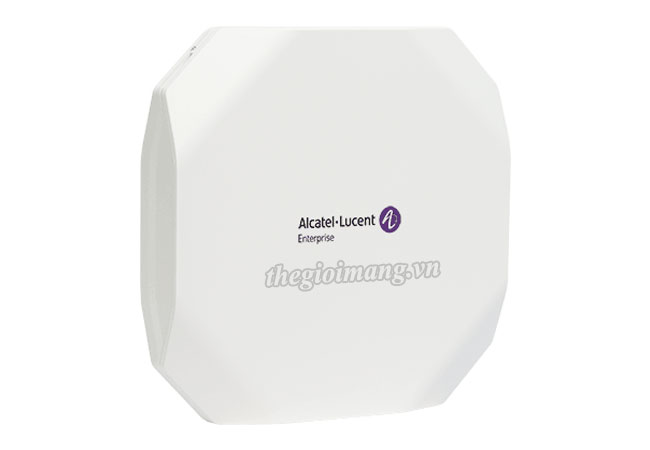

OAW-AP1301-RW - Alcatel-Lucent AP1301 Wi-Fi 6 Indoor Access Point :
Thiết bị Wi-Fi 6 Alcatel-Lucent OmniAccess Stellar AP1301 Indoor Access Point (OAW-AP1301-RW)
| Model | AP1301 (OAW-AP1301-RW) |
| Radio Specifications | • AP type: Indoor • Dual Radio, 5 GHz 802.11ax 2x2:2 and 2.4 GHz 802.11ax 2x2:2 ¬ 5 GHz: 2x2:2 up to 1.2 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices ¬ 2.4 GHz: 2x2:2 up to 573 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices |
| Interfaces | • 2x 10/100/1000Base-T autosensing (RJ-45) port, Power over Ethernet (PoE) 802.3af compliant • 1x USB 2.0 Type C (5V, 500mA) • Reset button: Factory reset |
| Visual Indicators (Tri-color LED) | • For system and radio status ¬ Red flashing: System abnormal, link down ¬ Red light: System startup ¬ Red and blue rotate flashing: System running, OS upgrading ¬ Blue light: System running, dual bands working ¬ Green flashing: System running, no SSID created ¬ Green light: System running, single band working ¬ Red, blue and green rotate flashing ¬ System running, use for location of an AP |
| Security | • 802.11i, WPA2, WPA3, Enterprise with CNSA Option, Personal (SAE) • 802.1X • WEP, Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP) • Firewall: ACL, wIPS/wIDS and DPI application policy enforcement with OmniVista • Portal page authentication |
| Antenna | • 2×2:2 @ 2.4 GHz, 2x2:2 @ 5 GHz ¬ Integrated omni-directional antennas with maximum antenna gain of 3.3 dBi in 2.4 GHz and 3.3 dBi in 5 GHz |
| Power | • Supports direct DC power and Power over Ethernet (PoE) • When both power sources are available, DC power takes priority over PoE • Direct DC source: 48 V DC nominal, +/- 5% • Power over Ethernet (PoE): IEEE 802.3af source • Maximum (worst case) power consumption: 13.1W (input IEEE 802.3af POE); Unrestricted functionality |
| Mounting | • Ceiling/wall mounting (Mount kit needs to be ordered separately |
| Environmental | • Operating: ¬ Temperature: 0°C to 45°C ¬ Humidity: 5% to 95% non-condensing • Storage and transportation: Temperature: -40°C to +70°C |
| Dimensions/Weight | • Single AP excluding packing box and accessories: ¬ 180mm (W) x 180mm (D) x 36mm (H) ¬ 574g • Single AP including packing box and accessories: ¬ 228mm (W) x 198mm (D) x 66mm (H) ¬ 780g |
OAW-AP1301-RW : OmniAccess Stellar Indoor AP1301. Dual radio 2.4/5 Ghz 2x2:2 802.11ax, integrated omni antenna. 2x 1GbE uplink, 1x RS-232 Console, USB, 48V DC. AP mount kit to be ordered separately.
Data sheet Alcatel-Lucent OmniAccess Stellar AP1301 WLAN Access Point - Indoor 802.11 ax (Wi-Fi 6)
