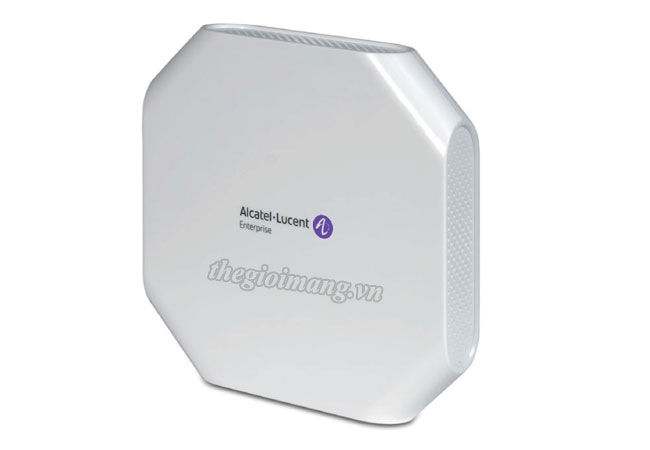

Thiết bị phát sóng Wifi OmniAccess Stellar AP1101
Model | OAW-AP1101-RW |
Interfaces | • 1× 10/100/1000 Mb/s full/half-duplex Ethernet (RJ-45) • PoE-PD: 48 V DC (nominal) 802.3af or 802.3at PoE • Security lock slot • Reset button: Factory reset |
Antenna | • Built-in 2×2:2, 3.4 dBi @ 2.4 GHz, 2.55 dBi @ 5 GHz |
Power | • Maximum (worst case) power consumption: ¬ 10 W (802.3at PoE or DC) • Direct DC source: ¬ 48 V DC nominal, ± 5% • Power over Ethernet (PoE): ¬ 48 V DC (nominal) 802.3af/802.3at compliant source ¬ When both power sources are available, DC power takes priority |
Mounting | Wall mount, ceiling tile and desktop |
Environmental | • Operating: ¬ Temperature: 0°C to 45°C (+32°F to +113°F) ¬ Humidity: 5% to 95% non-condensing • Storage and transportation: ¬ Temperature: -40°C to +70°C (-40°F to +158°F) |
Dimensions/weight | • Single AP excluding packing box and accessories: ¬ 155 mm (W) x 155 mm (D) x 28 mm (H) ¬ 6.10 in (W) x 6.10 in (D) x 1.10 in (H) ¬ 270 g (0.6 lb) • Including AP, packing box and accessories: ¬ 185mm (W) x 172mm (D) x 57mm (H) ¬ 7.28” in (W) x6.77 in (D) x 2.24 in (H) ¬ 467 g (1.0 lb) |
OAW-AP1101-RW : OmniAccess Stellar AP1101 wireless access point. Dual radio 2x2 802.11a/b/g/n/ac wireless access point with support for 802.11 b/g/n and 802.11 a/n/ac operation, dual-band integral antenna, 1 x 10/100/1000Base-T (RJ-45) Ethernet interface (supports 802.3af Power over Ethernet), 1 x 48V DC power interface, console port.
Data sheet Alcatel-Lucent OmniAccess Stellar AP1101 Indoor wireless access point
