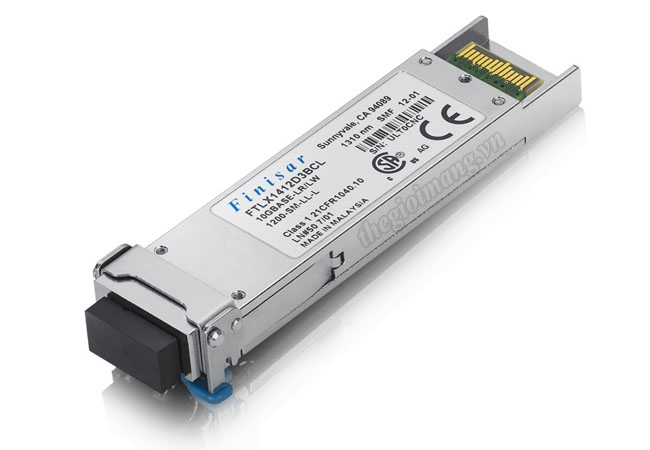

Module ZYXEL XFP-LR (FTLX1412D3BCL) Tranceiver
Module | XFP-LR (FTLX1412D3BCL) | |
Transceiver Class | 10GbE Transceiver Modules | |
10 Gigabit XFP | ||
Connector | LC | |
Wavelength (nm) | 1310 | |
Max transmission distance (km/yd) | 10/ 10936 | |
Optical fiber type | Single mode | |
Receiver Characteristics | ||
Optical Receiver Sensibility | -12.6 dBm | |
Maximum Input Power | +0.5 dBm | |
Operational Ranges | ||
Supply voltage | 3.1 - 3.5 V | |
Max current (mA) | 600 | |
Physical Specifications | ||
Dimensions (WxDxH)(mm/in.) | 22.15 x 77.95 x 13.30/0.87 x 3.07 x 0.52 | |
Weight (g/lb.) | 42/ 0.09 | |
Environmental Specifications | ||
MTBF (hr) | 2,143,000 | |
With DDMI features | ✔ |
