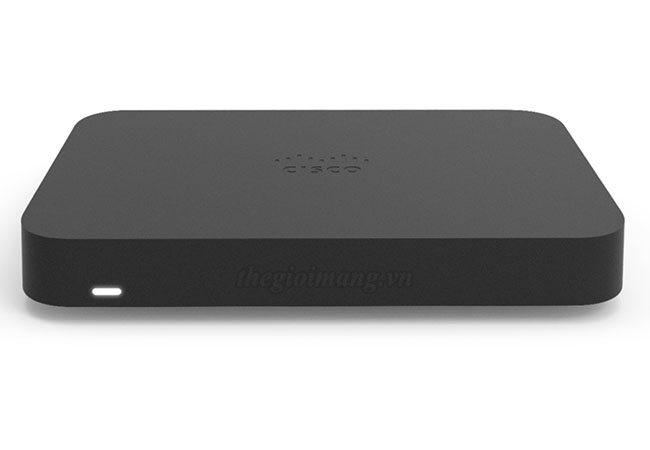

Z4-HW Cisco Meraki Z4 Cloud Managed Teleworker Gateway

Meraki Z4-HW

Giá bán : Liên hệ để có giá tốt

Tình trạng : Còn hàng

Interfaces
- WAN: 1 × 1 GbE
- LAN: 4 × 1 GbE
- PoE: 1 × 802.3at PoE enabled port
Network and Security Services
- Stateful firewall, 1:1 NAT, DMZ
- Auto VPN™ self-configuring site-to-site VPN
- Client VPN (IPSec L2TP), limit 2 authorized users (with Meraki-hosted authentication only)
- VLAN and DHCP services
- 802.1x wired port authentication
- Static routing
- User and device quarantine
Integrated Wireless
- 4 SSIDs
- 802.11a/b/g/n/ac/ax (2.4Ghz or 5 Ghz), 2x2 MU-MIMO with 2 spatial streams
- Max data rate 1.5 Gbit/s
- 4 × interal dipole antennas (gain: 3 dBi @ 2.4 GHz, 4 dBi @ 5 GHz)
- WPA2-PSK authentication
- Regulatory: FCC (US), IC (Canada), C-Tick (Australia / New Zealand), RoHS
Monitoring and Reporting
- Throughput, connectivity monitoring, and email alerts
- Detailed historical per-port and per-client usage statistics
- Application usage statistics
- Org-level change logs for compliance and change management
- VPN tunnel and latency monitoring
- Network asset discovery and user identification
- Periodic emails with key utilization metrics
- Syslog integration
Remote Diagnostics
- Live remote packet capture
- Real-time diagnostic and troubleshooting over the web
- Aggregated event logs with instant search
WAN Performance Management
- Automatic Layer 3 failover (including VPN connections)
- Application level (Layer 7) traffic analysis and shaping

Management
- Managed via the web using the Meraki dashboard
- Single pane-of-glass management of wired and wireless networks
- Zero-touch remote deployment (no staging needed)
- Automatic firmware upgrades and security patches
- Centralized policy management
- Org-level two-factor authentication and single sign-on
- Role-based adminstration with change logging and alerts
Performance
- Stateful firewall throughput: 500 Mbps
- VPN throughput: 250 Mbps
- Recommended for teleworker (up to 5 clients)
Physical and Environmental Specifications
- Dimensions: 7.25 x 4.84 x 1.10 in / 184.2 x 123 x 28 mm
- Weight: 0.86 lbs (0.391 kg)
- Power: single 50W (54 V / 0.9 A) power supply included, power cord sold separately
- Operating temperature: 32°F to 113°F (0°C to 45°C)
- Humidity: 5 to 95% non-condensing
- Desktop or Wall mount (Wall mounting hardware included)
Regulatory
- FCC (US)
- CB (IEC)
- CISPR (Australia / New Zealand)
Warranty
- Full lifetime warranty with next-day advanced replacement included
Ordering Information
- Available with Enterprise license or Secure Teleworker license

Meraki Model	Z4-HW
Recommended Use Cases	Teleworker with VoIP or PoE, IoT, and M2M
Recommended Clients	Up to 5 devices
Stateful Firewall Throughput	500 Mbps
Maximum VPN Throughput	250 Mbps
Security Throughput	200 Mbps
WAN Interfaces	1x Dedicated GbE RJ45
LAN Interfaces	4 x Dedicated GbE RJ45
PoE Capabilities	1 x GbE RJ45 LAN Ports (802.3at)
802.11 Wireless Interface	802.11a/b/g/n/ac/ax 2.4 or 5Ghz) 2x2 MU-MIMO w. 2 spatial streams
Maximum Wireless Data Rate	1.5 Gbps
Mount Type	Desktop / Wall Mount
Dimensions (H x D x W)	7.25 x 4.84 x 1.10 in / 184.2 x 123 x 28 mm
Weight	0.86 lbs (0.391 kg)
Power Supply	50W DC
Power Load (idle/max)	11W / 42W
Operating Temperature	32°F to 113°F (0°C to 45°C)
Humidity	5% to 95% non-condensing
Package contents (Thiết bị đi kèm gồm)	1 x Z4-HW 1 x Power Adapter (No power Cable) 1 x Cat5 Ethernet Cable 1 x Wall Screws and Anchors

License	Description
LIC-Z4-ENT-1Y	Meraki Z4 Enterprise License and Support, 1YR
LIC-Z4-ENT-3Y	Meraki Z4 Enterprise License and Support, 3YRs
LIC-Z4-ENT-5Y	Meraki Z4 Enterprise License and Support, 5YRs
LIC-Z4-ENT-7Y	Meraki Z4 Enterprise License and Support, 7YRs
LIC-Z4-ENT-10Y	Meraki Z4 Enterprise License and Support, 10YRs
LIC-Z4-SEC-1Y	Meraki Z4 Secure Teleworker License and Support, 1 Year
LIC-Z4-SEC-3Y	Meraki Z4 Secure Teleworker License and Support, 3 Years
LIC-Z4-SEC-5Y	Meraki Z4 Secure Teleworker License and Support, 5 Years
LIC-Z4-SEC-7Y	Meraki Z4 Secure Teleworker License and Support, 7 Years
LIC-Z4-SEC-10Y	Meraki Z4 Secure Teleworker License and Support, 10 Years

Meraki Z4-HW
