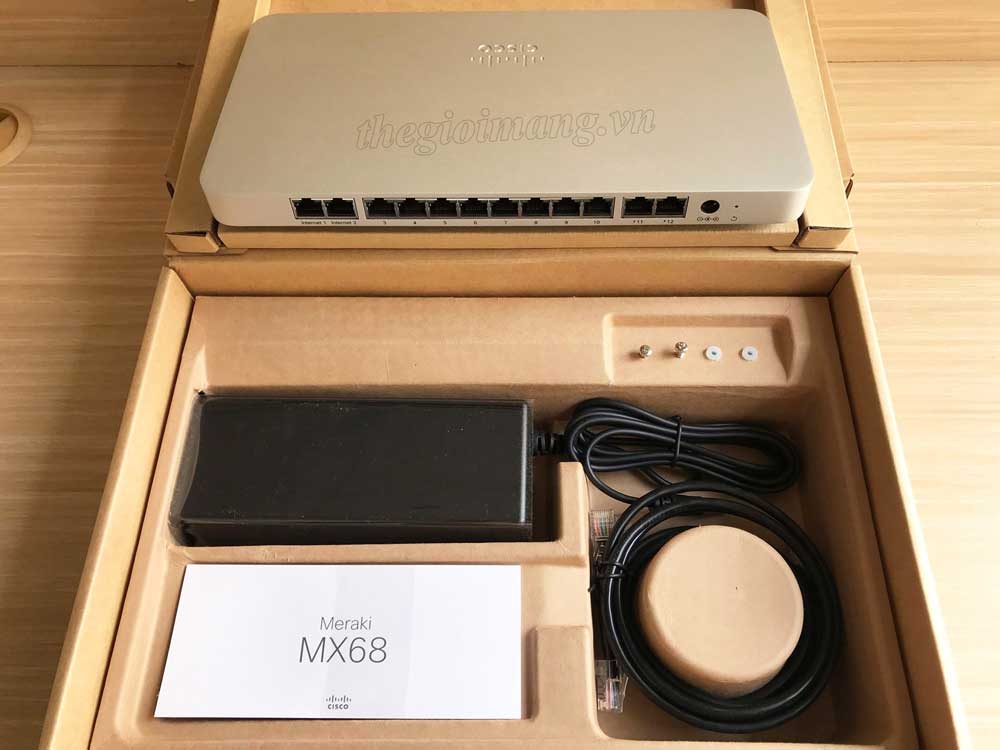

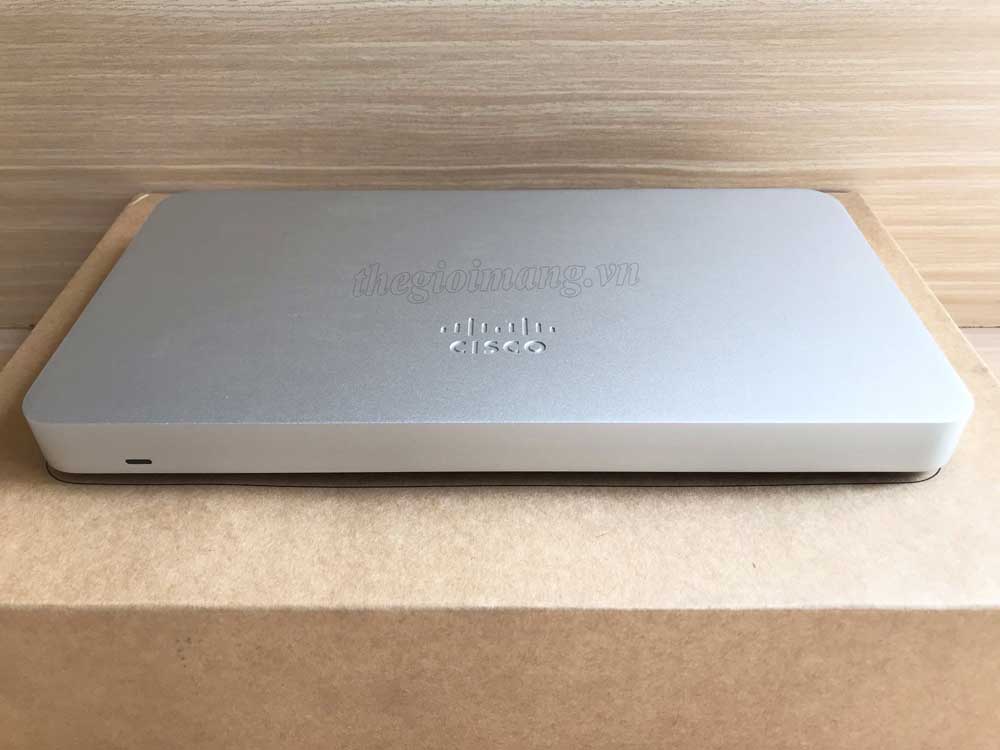

MX68-HW Cisco Meraki MX68 Router/Security Appliance

Mô tả sản phẩm

Tường lửa Meraki MX68 là thiết bị bảo mật doanh nghiệp có khả năng có thể triển khai dễ dàng, các model cơ bản của MX68 không tích hợp sẵn cổng uplink di động cần thiết. Bảng điều khiển (Dashboard) Meraki cho phép triển khai MX68 đơn giản và dễ dàng với cấu hình trước tối thiểu ở hầu hết mọi vị trí.

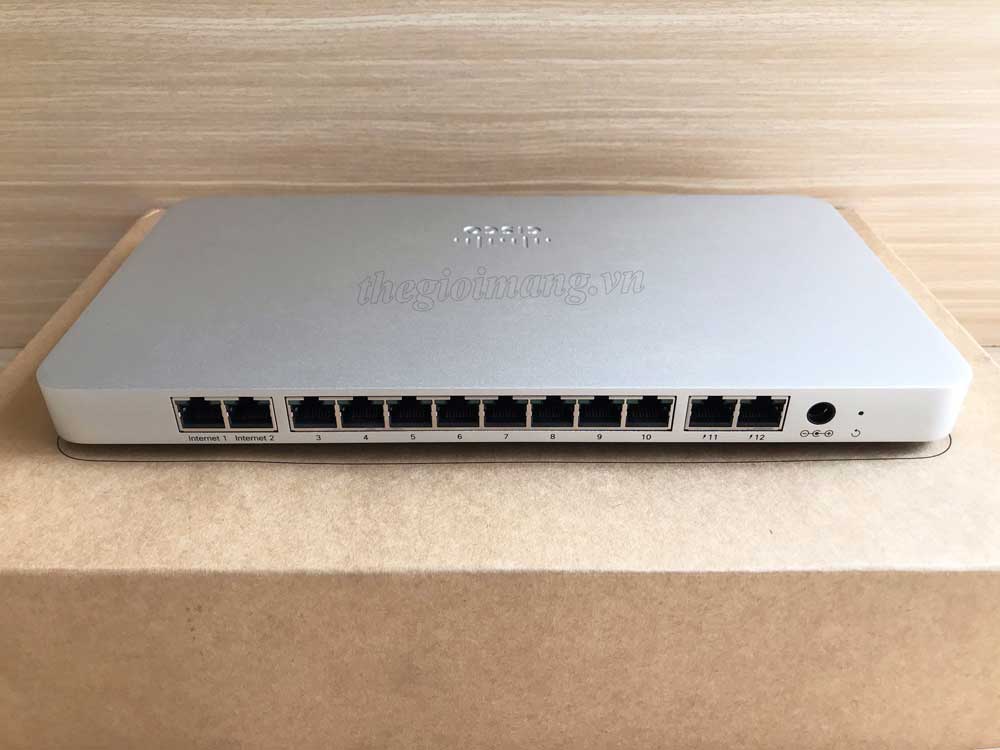

Meraki MX68 có 2 đường WAN (2xGE WAN RJ45), 10 cổng LAN (10xGE RJ45 với 2 cổng hỗ trợ PoE+) bao gồm. MX68 phù hợp để triển khai trong môi trường doanh nghiệp cỡ nhỏ hoặc văn phòng cá nhân.

Meraki MX68 cung cấp các tính năng sau:

Được quản lý thông qua Bảng điều khiển Cisco Meraki
Tự động nâng cấp Firmware
Cân bằng liên kết WAN
Tự động chuyển đổi dự phòng WAN
SD-WAN qua Meraki AutoVPN
Tường lửa trạng thái L3/L7
Quy tắc tường lửa dựa trên địa lý
NAT 1:1 và 1: Many
Hỗ trợ VLAN / DHCP có thể định cấu hình
Định tuyến tĩnh
Điểm cuối VPN máy khách
Điểm cuối Meraki AutoVPN và L2TP/IPSec VPN
Tích hợp Active Directory
Lọc nội dung
Bảo vệ phần mềm độc hại (AMP) với tích hợp Threat Grid tùy chọn
Bảo vệ IDS/IPS
Định hình lưu lượng truy cập tùy chỉnh
Thống kê sử dụng khách hàng trong lịch sử
Hỗ trợ luồng mạng
Tích hợp nhật ký hệ thống
Công cụ chụp gói từ xa

Thông số kỹ thuật Meraki MX68

Meraki Model	MX68
Recommended Use Cases	Small branch with up to 50 users
NGFW throughput	700 Mbps
Advanced security services throughput	700 Mbps
Maximum site-to-site VPN Throughput	300 Mbps
Maximum Concurrent site-to-site VPN Tunnels	50
WAN interfaces (dedicated)	2 x GbE RJ45
LAN interfaces (fixed)	10x GbE RJ45 (2x PoE+)
Mounting	Desktop or wall mount
Dimensions (W x D x H)	11.2 in x 5.8 in x 1.1 in (284 mm x 148 mm x 27 mm)
Weight	2.46 lb (1.12 kg)
Power Supply	100W DC
Power Load (idle/max)	11W / 79W
Operating Temperature	32°F to 113°F (0°C to 45°C)
Humidity	5% to 95%

Tùy chọn License cho Cisco Meraki MX68

License	Description
Enterprise License and Support
LIC-MX68-ENT-1YR	Cisco Meraki MX68, 1-year Enterprise License and Support
LIC-MX68-ENT-3YR	Cisco Meraki MX68, 3-year Enterprise License and Support
LIC-MX68-ENT-5YR	Cisco Meraki MX68, 5-year Enterprise License and Support
Advanced Security License and Support
LIC-MX68-SEC-1YR	Cisco Meraki MX68, 1-year Advanced Security License and Support
LIC-MX68-SEC-3YR	Cisco Meraki MX68, 3-year Advanced Security License and Support
LIC-MX68-SEC-5YR	Cisco Meraki MX68, 5-year Advanced Security License and Support
Secure SD-WAN Plus License and Support
LIC-MX68-SDW-1YR	Cisco Meraki MX68, 1-year Secure SD-WAN Plus License and Support
LIC-MX68-SDW-3YR	Cisco Meraki MX68, 3-year Secure SD-WAN Plus License and Support
LIC-MX68-SDW-5YR	Cisco Meraki MX68, 5-year Secure SD-WAN Plus License and Support

Xem thêm

Thông số kỹ thuật

MX68-HW : Cisco Meraki MX68 Router/Security Appliance

Data sheet Meraki MX Series

Thông số kỹ thuật:

Management
- Managed via the web using the Cisco Meraki dashboard
- Single dashboard management of wired and wireless networks
- Zero-touch remote deployment (no staging needed)
- Automatic firmware upgrades and security patches
- Template-based multi-network management
- Org-level two-factor authentication and single sign-on
- Role-based administration with change logging and alerts
Network and firewall services
- NGFW, 1:1 NAT, DMZ
- Identity-based policies
- Auto VPN: automated site-to-site (IPsec) VPN for
- hub-and-spoke or mesh topologies
- Client (IPsec L2TP) VPN
- Multiple WAN IP, PPPoE, NAT
- VLAN support and DHCP services
- Static routing
- User and device quarantine
Advanced security services
- Content filtering (Webroot BrightCloud CIPA-compliant
- URL database)
- Web-search filtering (including Google/Bing SafeSearch)
- YouTube for Schools
- Intrusion-prevention sensor (Cisco SNORT®-based)
- Cisco Advanced Malware Protection (AMP)
- AMP Threat Grid
Monitoring and reporting
- Throughput, connectivity monitoring, and email alerts
- Detailed historical per-port and per-client usage statistics
- Application usage statistics
- Org-level change logs for compliance and change management
- VPN tunnel and latency monitoring
- Network asset discovery and user identification
- Periodic emails with key utilization metrics
- Device performance and utilization reporting
- Netflow support
- Syslog integration
WAN Performance Management
- WAN link aggregation
- Automatic layer 3 failover (including VPN connections)
- 3G/4G USB modem failover or single uplink
- Application-level (layer 7) traffic analysis and shaping
- Ability to choose WAN uplink based on traffic type
- SD-WAN: dual-active VPN with policy-based routing and dynamic path selection
Monitoring and Management
- Web based management and configuration
- Throughput, connectivity monitoring and alerts
- Network asset discovery and user identification
- Built-in network-wide reporting, monitoring and alerts
- Centralized policy management
- Real-time diagnostic and troubleshooting over the web
- Automatic firmware upgrades and security patches
- Searchable network-wide event logs
Management
- Live remote packet capture
- Real-time diagnostic and troubleshooting tools
- Aggregated event logs with instant search
Interfaces
- WAN: 2 × 1 GbE
- LAN: 10 × 1 GbE (2 PoE+)
Performance
- Stateful firewall throughput: 700 Mbps
- VPN throughput: 300 Mbps
- Recommended for small branches (up to 50 users)
Power over Ethernet
- 2x PoE+ (802.3at) LAN ports
- 30 W maximum per port
Power
- Single 100W power supply
Environment
- Operating temperature: 32°F to 104°F (0°C to 40°C)
- Humidity: 5 to 95% non-condensing
Warranty
- Lifetime hardware warranty with advanced replacement included

Tùy chọn Phụ kiện / SFP Transceivers

Product ID	Description
MA-PWR-100WAC	Meraki MX Replacement Power Adapter (MX68 / 68W / 68CW) (100 Watts AC)
MA-PWR-CORD-EU	1x AC Power Cable, EU plug

Xem thêm thông số kỹ thuật
