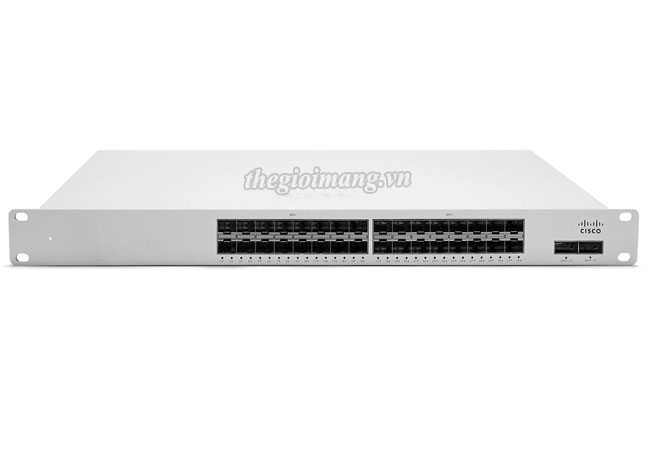

| Mã sản phẩm |
MS425-32-HW |
| Interface |
• 32 x 10G SFP+ fiber
• 2 × 40G QSFP+ uplink/stacking ports
• RJ45 Management port |
| Switching Capacity |
800 Gbps |
| Stacking Bandwidth |
160 Gbps |
| Physical Dimensions (H x W x D) |
1.72” x 19.07” x 20.67” (4.42cm x 48.44cm x 48.69cm) |
| Weight |
14.00 lbs (6.35 kg) |
| Idle / Full Load Power |
98 / 136 W |
| Power Supply Configuration |
Hot-swappable |
| Supported Power Supply |
2 x 250W PSU* |
| Management |
- Managed via the Web with the Meraki cloud management platform
- Integrated with Meraki Wireless and complete portfolio of IT products and solutions
- Zero-touch remote provisioning (no staging needed)
- Detailed historical per-port and per-client usage statistics
- Operating system, device, and hostname fingerprinting
- SNMP and SYSLOG support for integration with other network management solutions
- Automatic firmware upgrades with scheduling control |
| Remote Diagnostics |
- Email, SMS and Mobile push notification alerts 1
- Ping, traceroute, cable testing, and link failure detection with alerting
- Remote packet capture
- Dynamic and interactive network discovery and topology
- Combined event and configuration change logs with instant search |
| Stacking |
- Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
- Physically stack of up to 8 switches with 80 Gbps of stacking bandwidth
- Flexible stacking on all interfaces and SFP+/QSFP+ accessory types, up to 8 switches |
| Ethernet Switching Capabilities |
- 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
- 802.1Q VLAN and trunking support for up to 4,094 VLANs
- 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
- STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD
- Broadcast storm control
- 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
- 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
- Port mirroring
- IGMP snooping for multicast filtering
- MAC Forwarding Entries: 228K |
| Layer 3 capabilities |
- Static routing, OSFPv2
- Multicast routing
- Warm Spare (VRRP) 2
- DHCP Relay, DHCP Server |
| Mounting |
- Rack-mountable with included rack mount hardware
- Front-to-back airflow |
| Performance |
- Non-blocking fabric
- 480/800Gbps switching capacity on the MS425-16/32
- 1.2 microsecond latency
- Jumbo frame support (9578 ethernet frame) |
| Power |
- Power input: 100 - 240 VAC, 47-63 Hz
- Power consumption: 98-136W |
| Environment |
Operating temp: 0°C to 40°C, Humidity: 5 to 95% non-condensing |
| Warranty |
Full lifetime hardware warranty with next-day advanced replacement included |
