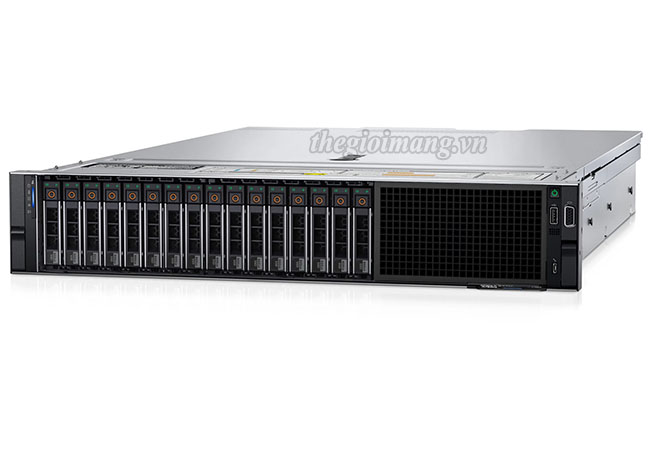

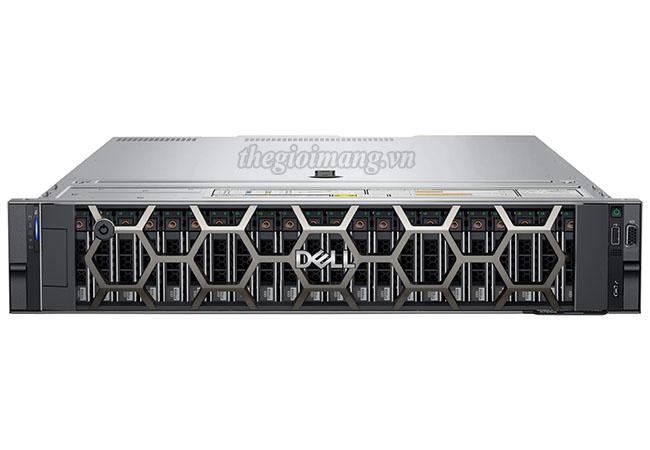

Máy chủ Dell PowerEdge R750xs - 8 x 3.5"

Máy chủ Dell PowerEdge R750xs - 8 x 3.5" Hot Plug

  • Processor: Intel Xeon Silver 4310 (12C/24T, 2.10 GHz)
  • Memory: 4x 32GB DDR4 RDIMM, 3200MTs
  • Hard Drive: 4x Dell 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5” Hot-plug
  • Raid Controller: RAID Controller H755
  • Network Controller: DP 1GbE LOM + BC5720QP OCP
  • Power Supply: 2x 800W
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Máy Chủ Dell PowerEdge R750xs – 8×3.5″ Hot Plug

  • Processor: Intel Xeon Silver 4310 (12C/24T, 2.10 GHz)
  • Memory: 4x 32GB DDR4 RDIMM, 3200MTs
  • Hard Drive: 4x Dell 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5” Hot-plug
  • Raid Controller: RAID Controller H755
  • Management: iDRAC9 Enterprise, 15G
  • Optical drive: DVD Ext
  • Network Controller: DP 1GbE LOM + BC5720QP OCP
  • Power Supply: 2x 800W
  • Form Factor: 2U rackmount

Bảo hành 36 tháng

Data sheet Dell PowerEdge R750xs


Cấu hình kỹ thuật chung PowerEdge R750xs

Server PowerEdge R750xs
Idear for • Virtualization
• Medium VM density or VDI
• Software-defined storage node
Processor Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores
Memory • 16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s
• Supports registered ECC DDR4 DIMMs only
Storage controllers • Internal controllers: PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i, S150
• Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, USB
• External PERC (RAID): PERC H840, HBA355E
Drive bays Front bays:
• 0 drive bay
• Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB
• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB
• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
• Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB
• Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB

Rear bays:
• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB
Power supplies • 600W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
• 800W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
• 1100W Titanium Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
• 1400W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
Cooling options Air cooling
Fans • Standard fan/High performance Silver fan/High performance GOLD fan
• Up to six hot swap fans
Dimension • Height – 86.8 mm (3.41 inches)
• Width – 482.0 mm (18.97 inches)
• Depth – 707.78 mm (27.85 inches) - without bezel
                 721.62 mm (28.4 inches) - with bezel
Form Factor 2U rack server
Embedded management • iDRAC9
• iDRAC Service Module
• iDRAC Direct
• Quick Sync 2 wireless module
Bezel Optional LCD bezel or security bezel
OpenManage Software • OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage SupportAssist plugin
• OpenManage Update Manager plugin
Mobility OpenManage Mobile
Integrations and Connections • BMC Truesight
• Microsoft System Center
• OpenManage Integrations
• Red Hat Ansible Modules
• VMware vCenter and vRealize Operations Manager
• IBM Tivoli Netcool/OMNIbus
• IBM Tivoli Network Manager IP Edition
• Micro Focus Operations Manager
• OpenManage Connections
• Nagios Core
• Nagios XI
Security • Cryptographically signed firmware
• Secure Boot
• Secure Erase
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC 2 x 1 GbE LOM
Network Options 1 x OCP 3.0
Ports Front Ports:
• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 2.0
• 1 x VGA

Internal Ports:
 • 1 x USB 3.0 (optional)

Rear Ports:
• 1 x USB 2.0
• 1 x Serial (optional)
• 1 x USB 3.0
• 2 x Ethernet
• 1 x VGA
PCIe Up to 5 x PCIe Gen4 slots + 1 x PCIe Gen3 slots
• 3 x16 Gen4 low profile
• 2 x16 Gen4 low profile (optional)
• 1 x8 Gen3 (x4 lane) low profile
Operating System and Hypervisors • Canonical Ubuntu Server LTS
• Citrix Hypervisor
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi
