SSR1200 - Juniper SSR1000 Session Smart Router :

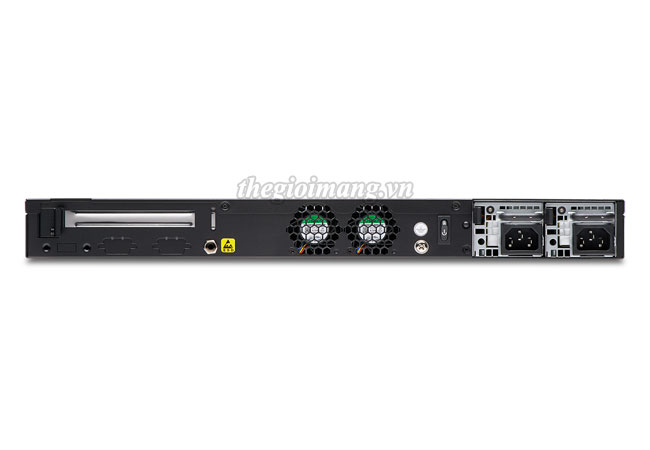

Thiết bị định tuyến Router Juniper SSR1200
| Model | SSR1200 |
| Connectivity | |
| Onboard RJ-45 ports | • 7 x 1GbE RJ-45 (NICs/ports are not field configurable/replaceable) |
| Onboard SFP transceiver ports | • 4 x 1GbE/10GbE SFP+ (NICs/ports are not field configurable/replaceable) |
| Onboard management port | • 1 x 1GbE RJ-45 |
| LTE modules | • Not supported |
| Console | • 1 x 1GbE RJ-45 |
| USB | • 2 x USB 3.0 |
| PoE+ ports | • Not supported |
| Memory and Storage | |
| Memory (RAM) | • 64 GB |
| Storage (SSD) | • 256 GB |
| Dimensions and Power | |
| Form factor | • 1 U • Rackmount kit (SSR1200-RMK) included |
| System size (W x D x H) | • 438 mm x 431 mm x 44 mm |
| System weight | • 16.5 kg |
| Packaged size (W x D x H) | • 549 mm x 582 mm x 182 mm |
| Packaged weight | • 18.6 kg |
| Fan trays | • Non-removable (2 x fan trays) |
| Power supply | • Redundant AC PSUs (1+1) included |
| External power adapter input (AC) | • 100-240 V AC, 50-60 Hz |
| Maximum power draw (estimated) | • 232.26 W |
| Environmental | |
| Operating temperature | • 0°C to 40°C |
| Storage temperature | • -20°C to 70°C |
| Mean time between failures (MTBF) | • 156,467 hours |
SSR1200 : SSR1200 hardware only (1 U; 64 GB RAM; 256 GB SSD; redundant power supply (RPS); Intel-based NICs: 7x1GbE RJ45, 4x1GbE/10GbE SFP+; includes rackmounts). SSN software license and optics sold separately.
