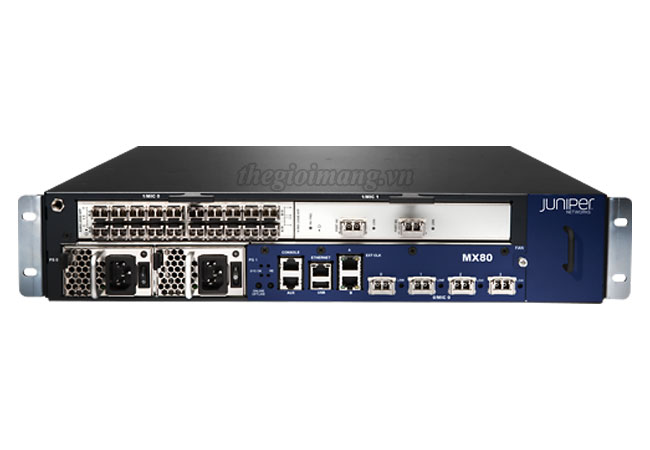

Router Juniper MX80BASE-T : MX80 chassis with timing support - includes one power supply, 2 empty MIC slots, 4x10GbE XFP built-in ports, fan tray with filter. Power supply cable needs to be ordered separately.
Thiết bị định tuyến Router Juniper MX80BASE-T
Model | MX80BASE-T |
Layout | |
System capacity | 80 Gbps |
Slot orientation | Horizontal |
Mounting | Front or center |
Physical Specification | |
Dimensions (W x H x D) | 17.5 x 3.5 x 23.46 in (44.5 x 8.9 x 59.6 cm) |
Weight fully loaded | 30 lb/13.7 kg |
Weight unloaded | NA |
Routing Engine | |
Default memory | 8 MB boot flash; 4GB on NAND flash storage; 2 GB of DDR2 RAM |
Number of cores | 1 core |
Redundancy | Power supplies and fans |
Environmental | |
Air flow | Side to side [forced air] |
Operating temperature | 32° to 115° F (0° to 46° C) at sea level |
Operating humidity | 5% to 90% |
Operating altitude | 10,000 ft (3048 m) |
Certifications | GR-63-Core Physical Protection GR-1089-Core:EMC and Electrical Safety |
MX80 Software Licenses
S-MX80-ADV-R | License to support full scale L3 route and L3 VPN on MX80 |
S-MX80-Q | License to support per VLAN queuing on MX80 |
S-MX80-SA-FP | Subscriber Management Feature Pack License |
S-MX80-SSM-FP | Subscriber Service Management Feature Packet License (RADIUS/SRC Series-based service activation and deactivation) per service accounting features for subscribers, MX80 |
MX80BASE-T : MX80 chassis with timing support - includes one power supply, 2 empty MIC slots, 4x10GbE XFP built-in ports, fan tray with filter. Power supply cable needs to be ordered separately.
