Name: Juniper EX4300-48T-AFI-TAA
Brand: Juniper
SKU: EX4300-48T-AFI-TAA
Rating: 5 (12 reviews)

Hỗ trợ trực tuyến

Tư vấn

Hỗ trợ Tư Vấn

0909648899

Kinh doanh

Kinh Doanh 01

0917684899

Kinh Doanh 02

0917993131

Kinh Doanh 03

0915793030

Kinh Doanh 04

0906641689

Kỹ thuật

Hỗ trợ Kỹ Thuật 1

02862578356

Hỗ trợ Kỹ Thuật 2

02862578355

Mô tả sản phẩm

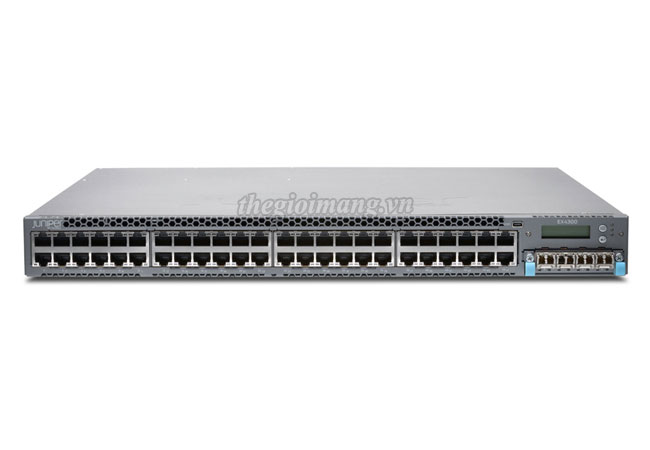

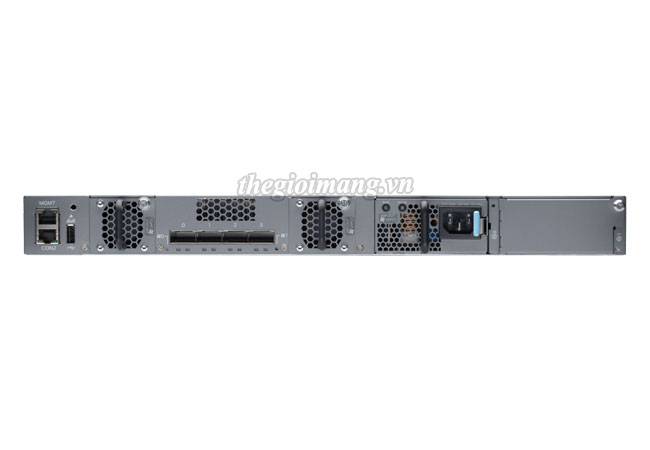

Thiết bị chuyển mạch Switch Juniper EX4300-48T-AFI-TAA

Model	EX4300-48T-AFI-TAA
Switching Engine Mode	• Store and forward
Memory	• 2 GB with ECC • Storage: 2 GB
CPU	• 1.5 GHz Dual-Core PowerPC CPU
GbE Port Density per System	• 56 (48 host ports + four 40GbE ports + optional four-port 1/10GbE uplink module)
Packet Switching Capacities (Maximum with 64 Byte Packets)	• 248 Gbps (unidirectional)/496 Gbps (bidirectional)
Layer 2/Layer 3 Throughput (Mpps) (Maximum with 64 Byte Packets)	• 369 Mpps
Maximum MAC addresses per system	• 64,000
Jumbo frames	• 9216 Bytes
Number of VLANs supported	• 4093
Virtual Spanning Tree (VST) instances	• 510
Backplane	320 Gbps Virtual Chassis interconnect to combine up to 10 units as a single logical device
Dimensions (W x H x D)	• Base unit: 17.36 x 1.72 x 16.38 in (44.1 x 4.37 x 41.6 cm) • With power supply installed: 17.36 x 1.72 x 17.51 in (44.1 x 4.37 x 44.47 cm) • With power supply and front module installed: 17.36 x 1.72 x 18 in (44.1 x 4.37 x 45.73 cm)
System Weight	• 13 lb (5.9 kg) (with no power supply or fan module) • 16.1 lb (7.3 kg) (with single power supply and two fan modules)
Environmental Ranges	• Operating temperature: - AFO models: 32° to 113° F (0° to 45° C) - AFI models: 32° to 95° F (0° to 35° C) • Storage temperature: -40° to 158° F (-40° to 70° C)v

Tùy chọn Uplink Module cho Switch Juniper EX4300-48T-AFI-TAA

EX-UM-4X4SFP

EX4300 4-port 1GbE/10GbE SFP+ Uplink Module

Tùy chọn License cho Switch Juniper EX4300-48T-AFI-TAA

EX4300-48-EFL	Enhanced Feature License (EFL) for EX4300- 48T, EX4300-48T-AFI, EX4300-48T-DC, EX4300-48T-AFI-DC, and EX4300-48P
EX4300-48-AFL	Advanced Feature License (AFL) for EX4300- 48T, EX4300-48T-AFI, EX4300-48T-DC, EX4300-48T-AFI-DC, and EX4300-48P
EX-QFX-MACSEC-ACC	MACsec Software License for EX4300 and EX4200 access switches

Tùy chọn Module quang SFP cho Switch Juniper EX4300-48T-AFI-TAA: Xem thêm

Xem thêm

Thông số kỹ thuật

EX4300-48T-AFI-TAA : Trade Agreement Act-compliant EX4300, 48-port 10/100/1000BASE-T + 350 W AC PS (back-to-front airflow) (QSFP+ DAC for Virtual Chassis and optics ordered separately)

Data sheet Juniper EX4300 Line Of Ethernet Switches

Xem thêm thông số kỹ thuật
