Trang chủ > Sản phẩm > Thiết bị mạng Juniper > Switch Juniper > Juniper EX4100-F-24T

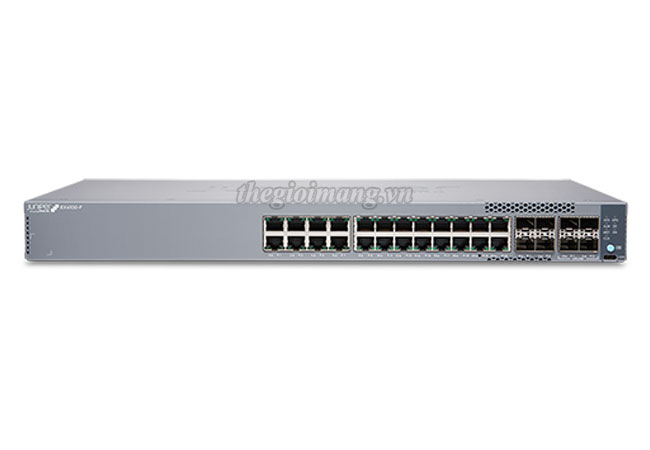

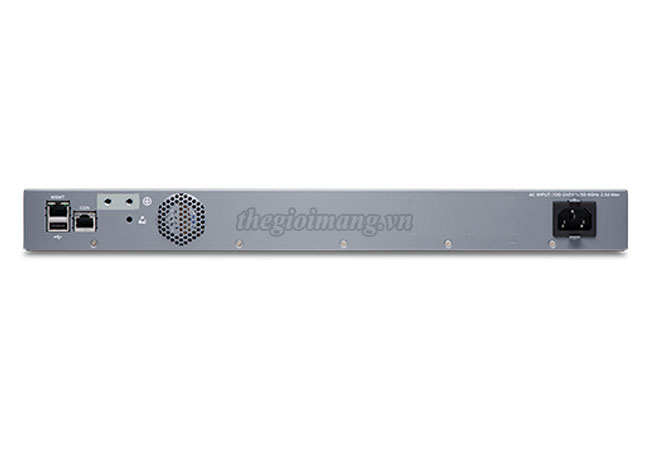

Juniper EX4100-F-24T

Juniper EX4100-F-24T Ethernet access switch :

  • 24 x 10/100/1000BASE-T ports
  • 4 x 1GbE/10GbE SFP/SFP+ uplinks
  • 4 x 10GbE stacking/uplink ports
  • Standard license
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị chuyển mạch Switch Juniper EX4100-F-24T

Model EX4100-F-24T
Switching Engine Mode • Store and forward
Memory • DRAM: 4 GB with Error Correcting Code (ECC)
• Storage: 8 GB
CPU • 1.7 GHz ARM CPU
Port Density per System • 24 host ports + 4 port SFP/SFP+ uplinks + 4 port 10GbE SFP+ Virtual Chassis/uplinks
Packet Switching Capacities
(Maximum with 64 Byte Packets)
• 104 Gbps (unidirectional)/208 Gbps (bidirectional)
Layer 2/Layer 3 Throughput (Mpps)
(Maximum with 64 Byte Packets)
• 154 Mpps
Backplane • 80 Gbps Virtual Chassis interconnect to combine up to 10 units as a single logical device
Dimensions (W x H x D) • 44.09 x 4.37 x 25.65 cm
• Height: 1 U
System Weight • 3.52 kg
Environmental Ranges • Operating temperature: 32° to 113° F (0° to 45°C)
• Storage temperature: -40° to 158° F (-40° to 70° C)
• Operating altitude: Up to 5000 ft at 40° C (1828.8 m)
• Nonoperating altitude: Up to 16,000 ft (4,877 m)
• Relative humidity operating: 5% to 90% (noncondensing)
• Relative humidity non-operating: 0% to 90% (noncondensing)

EX4100-F-24T : 24-port 10/100/1000BASE-T switch, 4x1GbE/10GbE SFP/SFP+ uplinks, 4x10GbE stacking/uplink ports, with Standard SW, optics sold separately, TAA compliant.

Data sheet Juniper EX4100-F Line Of Ethernet Switches
