Model	EX4100-48MP
Switching Engine Mode	• Store and forward
Memory	• DRAM: 4 GB with Error Correcting Code (ECC) • Storage: 8 GB
CPU	• 1.7 GHz ARM CPU on all models
Port Density per System	• EX4100-24P/24T: 32 (24 1GbE host ports + 4 10GbE/25GbE ports + 4 1GbE/10GbE ports) • EX4100-48P/48T: 56 (48 1GbE host ports + 4 10GbE/25GbE ports + 4 1GbE/10GbE ports) • EX4100-24MP: 32 (8 10GbE host ports + 16 1GbE host ports + 4 10GbE/25GbE ports + 4 1GbE/10GbE ports) • EX4100-48MP: 56 (16 2.5GbE host ports + 32 1GbE host ports + 4 10GbE/25GbE ports + 4 port 1GbE/10GbE ports)
Packet Switching Capacities (Maximum with 64 Byte Packets)	• EX4100-24P/24T: 164 Gbps (unidirectional)/328 Gbps (bidirectional) • EX4100-48P/48T: 188 Gbps (unidirectional)/376 Gbps (bidirectional) • EX4100-24MP: 236 Gbps (unidirectional)/472 Gbps (bidirectional) • EX4100-48MP: 212 Gbps (unidirectional)/424 Gbps (bidirectional)
Layer 2/Layer 3 Throughput (Mpps) (Maximum with 64 Byte Packets)	• EX4100-48P/T 279 Mpps • EX4100-24P/T 244 Mpps • EX4100-48MP 315 Mpps • EX4100-24MP 351 Mpps
Backplane	• 200 Gbps Virtual Chassis interconnect to combine up to 10 units as a single logical device
Power Options	• Power supplies: Autosensing; 100-120 V/200-240 V; 150 W, 920 W AC AFO, and 150 W AC AFI dual load sharing hot-swappable internal redundant power supplies • Maximum current inrush: 30 amps • DC power supply: 150 W DC AFO; input voltage range 48-60 V max; dual load-sharing hot-swappable internal redundant power supplies • Minimum number of PSUs required for fully loaded chassis: 1 per switch
Dimensions (W x H x D)	• Base Unit: 17.36 x 1.72 x 13.78 in (44.1 x 4.37 x 35 cm) • With power supply installed: 17.36 x 1.72 x 15.05 in (44.1 x 4.37 x 38.24 cm) • Height: 1 U
System Weight	• EX4100-24T switch (with no power supply or fan module): 9.72 lb (4.41 kg) • EX4100-24P switch (with no power supply or fan module): 10 lb (4.54 kg) • EX4100-48T switch (with no power supply or fan module): 10 lb (4.54 kg) • EX4100-48P switch (with no power supply or fan module): 10.27 lb (4.66 kg) • EX4100-24MP switch (with no power supply or fan module): 10.06 lb (4.57 kg) • EX4100-48MP switch (with no power supply or fan module): 10.41 lb (4.72 kg) • 150 W AC power supply: 1.43 lb (0.65 kg) • 150 W DC power supply: 1.43 lb (0.65 kg) • 920 W AC power supply: 1.87 lb (0.85 kg) • Fan module: 0.16 lb (0.07 kg)
Environmental Ranges	• Operating temperature: 32° to 113° F (0° to 45° C) • Storage temperature: -40° to 158° F (-40° to 70° C) • Operating altitude: Up to 5000 ft at 40° C (1828.8 m) • Nonoperating altitude: Up to 16,000 ft (4877 m) • Relative humidity operating: 5% to 90% (noncondensing) • Relative humidity non-operating: 0% to 90% (noncondensing)
Cooling	• Field-replaceable fans: 2

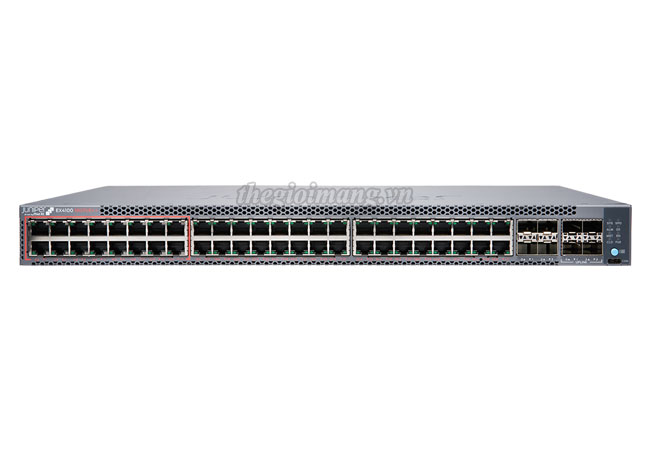

EX4100-48MP : Multigigabit 48 port, PoE++ (up to 90 W) switch with 16x100 MB/1GbE/2.5GbE + 32x10 MB/100 MB/1GbE, 4x10GbE uplinks, 4x25GbE stacking/uplink ports, MACsec AES256, redundant fans, 1x JPSU-920-AC-AFO included with Standard SW, optics sold separately, TAA-compliant.

Data sheet Juniper EX4100 Line Of Ethernet Switches
