Juniper AP63E-WW Outdoor Wi-Fi 6 Access Point :

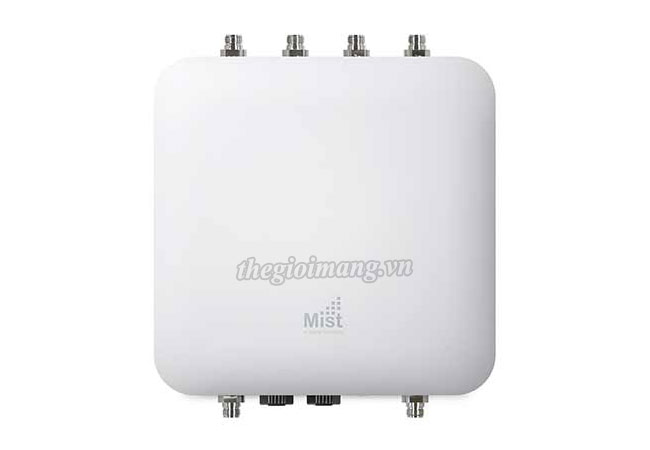

Thiết bị Wi-Fi 6 Juniper AP63E-WW Outdoor Access Point
| Model | AP63E-WW |
| SPECIFICATIONS | |
| Wi-Fi Standard | • 802.11ax (Wi-Fi 6), including support for OFDMA, 1024-QAM, MU MIMO, Target Wake Time (TWT), Spatial Frequency Reuse (BSS Coloring). • Backwards compatibility with 802.11a/b/g/n/ac |
| Combined Highest Supported Data Rates | • Dual-Band: 3.5 Gbps • Dual-5GHz (internal antenna model): 4.8 Gbps |
| 2.4 GHz | • 4×4 : 4 802.11ax up to 1,148 Mbps data rate |
| 5 GHz | • 4×4 : 4 802.11ax up to 2,400 Mbps data rate |
| MIMO Operation | • Four spatial stream Single User (SU) MIMO for up to 2,400 Mbps wireless data rate to individual 4×4 HE80 • Four spatial stream Multi User (MU) MIMO for up to 2,400 Mbps wireless data rate to up to four MU-MIMO capable client devices simultaneously |
| Dedicated Third Radio | • 2×2 : 2SS, Dual-band WIDS/WIPS, spectrum analysis, synthetic client and location analytics radio |
| Bluetooth 5.0 | • vBLE 16-element Directional Antenna Array + Omni Bluetooth Antenna |
| Beam Forming | • Transmit Beamforming and Maximal Ratio Combining |
| Power Options | • 802.3at PoE (no PoE out), 802.3bt PoE |
| Dimensions | • 285 x 285 x 86 mm |
| Weight | • 3.9kg excluding mount and accessories |
| Shipping Box | • Size: 473 x 390 x 153 mm |
| Operating Temperature | • -40° to 55° C with solar loading • -40° to 65° C without solar loading |
| Operating Humidity | • 10% to 90% maximum relative humidity, non-condensing |
| Operating Altitude | • 3,048m |
| Enclosure | • IP67 / NEMA 4 compliant |
| Electromagnetic Emission | • FCC Part 15 Class B |
| I/O & INDICATORS | |
| Eth0 | • 100/1000Base-T, 2.5GBase-T (802.3bz); RJ45; PoE PD (requires 802.3bt) |
| Eth1 | • 10/100/1000Base-T; RJ45 Optional 802.3af PoE PSE mode (requires 802.3bt on Eth0) |

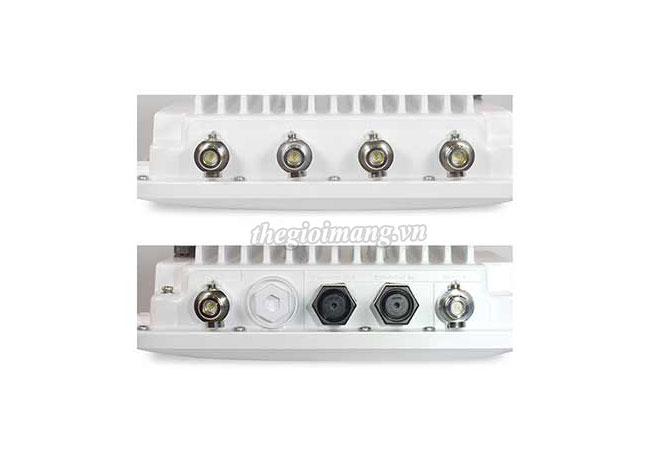

| External Antennas | • Six N-type Plugs (four dual- band for client radios; two dual-band for the 3rd radio) |
| Reset | • Reset to the factory default settings |
| Indicators | • One multi-color status LED |
