Juniper AP12-WW Wall Plate Wi-Fi 6 Access Point :
Thiết bị Wi-Fi 6 Juniper AP12-WW Wall Plate Access Point
| Model | AP12-WW |
| SPECIFICATIONS | |
| Wi-Fi Standard | • 802.11ax (Wi-Fi 6), including support for OFDMA, 1024-QAM, MU MIMO, Target Wake Time (TWT), Spatial Frequency Reuse (BSS Coloring). • Backwards compatibility with 802.11a/b/g/n/ac |
| Combined Highest Supported Data Rates | • 1.8 Gbps |
| 2.4 GHz | • 2×2 : 2 802.11b/g/n up to 400 Mbps data rate; 2×2 : 2 802.11ax up to 575 Mbps data rate |
| 5 GHz | • 2×2 : 2 802.11ax up to 1,200 Mbps data rate |
| MIMO Operation | • Two spatial stream Single User (SU) MIMO for up to 1,200 Mbps wireless data rate to individual 2×2 HE80 • Two spatial stream Multi User (MU) MIMO for up to 1,200 Mbps wireless data rate to up to four MU-MIMO capable client devices simultaneously |
| Dedicated Third Radio | • 2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis & location analytics radio |
| Internal Antennas | • Two 2.4GHz omni-directional antennas with 3 dBi peak gain • Two 5GHz omni-directional antennas with 6 dBi peak gain |
| Bluetooth | • Omni-directional Bluetooth Antenna • Supports superbeacon mode with iBeacon and Eddystone |
| Beam Forming | • Transmit Beamforming and Maximal Ratio Combining |
| Power Options | • 802.3af/at PoE |
| Dimensions | • 150 x 100 x 40 mm |
| Weight | • 0.6 kg excluding mount and accessories |
| Operating Temperature | • Internal antenna: 0° to 40° C |
| Operating Humidity | • 10% to 90% maximum relative humidity, non-condensing |
| Operating Altitude | • 3,048m |

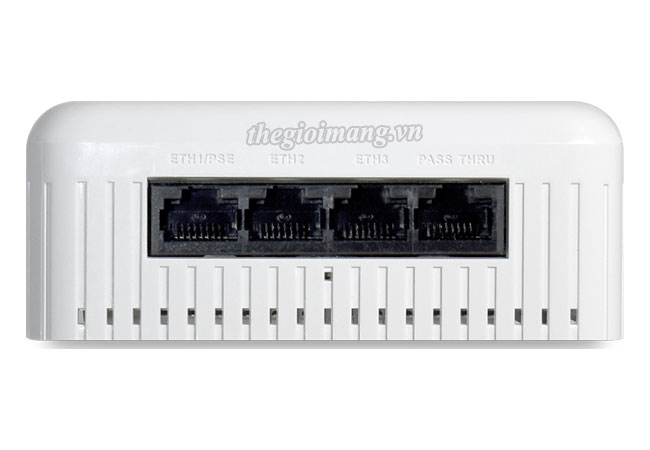

| I/O & INDICATORS | |
| Eth0 | • 10/100/1000Base-T, RJ45; PoE PD |
| Eth1 | • 10/100/1000Base-T; RJ45 PoE Out class 2 (requires .3at power) |
| Eth2-3 | • 10/100/1000 BaseT RJ45 |
| Reset | • Reset to the factory default settings |
| Indicators | • One multi-color status LED |
