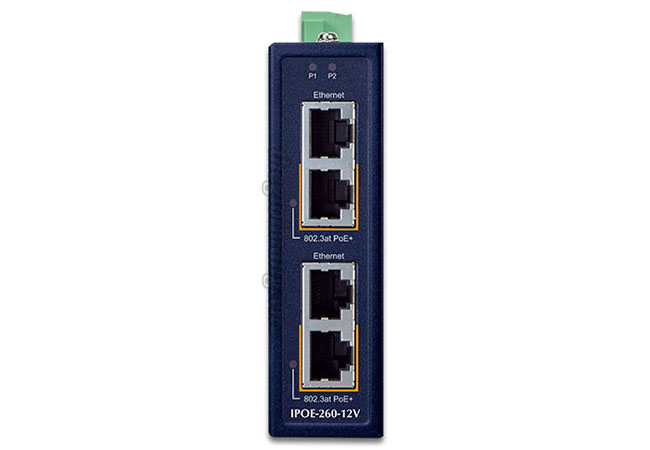

Planet IPOE-260-12V : Industrial 2-port 10/100/1000T 802.3at PoE+ Injector Hub w/ 12V Booster
Bộ cấp nguồn PoE Công nghiệp Planet IPOE-260-12V
| Model | IPOE-260-12V |
|---|---|
| Hardware Specifications | |
| Copper Ports | 2-pair 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports: Data input port 1 and PoE output port 1 Data input port 2 and PoE output port 2 |
| Connector | Removable 4-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for Power 2 |
| Data Rate | 10M/100M/1000 Mbps |
| Power Requirements | 12~56V DC, redundant power with reverse polarity protection |
| Power Consumption (Ethernet Full Loading) | Max. 4 watts/13.6 BTU (Power on without any connection) Max. 80 watts/272.9 BTU (Full loading with PoE function) |
| Dimensions (W x D x H) | 30 x 70 x 105 mm |
| Weight | 280 g |
| Enclosure | IP30 metal case |
| Installation | DIN-rail, wall-mount or side wall-mount design |
| ESD Protection | 6KV |
| Surge Protection | 6KV |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus / mid-span PSE |
| PoE Power Output | Per port 54V DC, max. 36 watts |
| PoE Power Supply Type | Mid-span |
| Power Pin Assignment | 4/5 (+), 7/8 (-) |
| PoE Power Budget (max.) | 60W @12~23V DC input 72W @24~56V DC input |
| Number of devices that can be powered | 2 |
| Environment & Standards | |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing) |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
Data sheet Planet IPOE-260 Series
