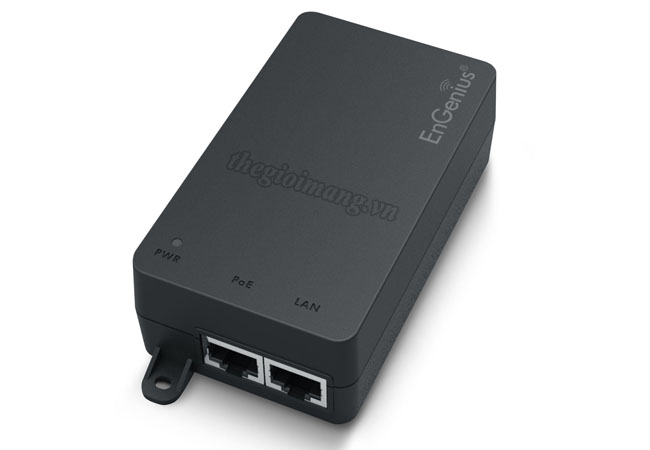

Bộ cấp nguồn EnGenius EPA5006HAT
| Product SKU# | EPA5006HAT |
|---|---|
| THÔNG SỐ KỸ THUẬT | |
| Standards | 802.3 10BaseT 802.3u 100BaseT 802.3ab 1000Base-T Ethernet 802.3bz 2500Base-T Ethernet Standard PoE |
| Compliance | IEC 60950-1:2005+A1 UL60950-1 ENS55022:2010 EN55024:2010 FCC Part 15 Class B FCC, CE |
| Physical Interface | (1) 2.5 Gigabit Data Port (1) Gigabit Data & Power Output Port (1) IEC-320 C6 AC Connector |
| Mounting | Wall (anchors & screws included) |
| POWER | |
| Input Voltage | 100 to 240VAC |
| Input Current | 0.8A @ 120V AC 0.4A @ 240V AC |
| AC Input Frequency | 50-60Hz |
| Maximum Output Power | 30W |
| Power Lines | Pin4(Vdc+) & Pin5(Vdc+); Pin7(Vdc-) & Pin8(Vdc-) |
| Data Lines | Pin1(Rx+) & Pin2(Rx-); Pin3(Tx+) & Pin6(Tx-) |
| Surge Protection | L-L: 2KV; L-G: 4KV |
| ESD | Contact 4KV; Air: 8KV |
| ENVIRONMENTAL & PHYSICAL | |
| Temperature Range | Operating: 32°F to 104°F (0°C to 40°C) Storage: -4°F to 158°F (-20°C to 70°C) |
| Humidity (non-condensing) | Operating: 5 to 90% or less Storage: 5 to 90% or less |
| DEVICE DIMENSIONS & WEIGHTS | |
| EPA5006HAT Device (Without Mounting Kit) | Weight: .33 lbs. (154 g) Length: 3.9” (99 mm) Width: 2.27” (68.5 mm) Height: 1.3” (33 mm) |
| Packaging | Weight: .57 lbs. (262 g) Length: 5.4” (139 mm) Width: 4.8” (122.5 mm) Height: 2” (52 mm) |
| Package Contents | EPA5006HAT Power cord |
The EnGenius EPA5006HAT 2.5 Gigabit standard Power-over-Ethernet adapter supports high-speed data and up to 30 watts of power. Compact port design provides easy installation, and built-in power surge protection preserves valuable equipment.
