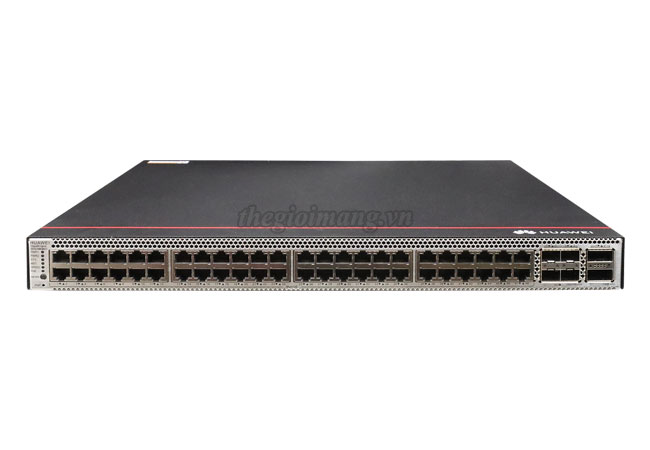

Thiết bị Switch Huawei S5732-H48UM2CC
Product Model | S5732-H48UM2CC |
Description | 48 × 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 1/10/25GE SFP28 + 2 x 40GE QSFP+ or 2 x 100GE QSFP28 ports One extended slot PoE++ 1+1 power backup Forwarding performance: 490 Mpps Switching capacity*: 1.76 Tbps/2.4 Tbps Note: All ports support GE by default. You can purchase right-to-use (RTU) licenses to upgrade the port rate (every 12 ports per RTU license) from GE to 2.5GE, 5GE, or 10GE. |
MAC address table | IEEE 802.1d standards compliance 128K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
VLAN | 4094 VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping |
Wireless service | AP access control, AP domain management, and AP configuration template management Radio management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis |
IP routing | Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy |
Dimensions (H x W x D) | 43.6 mm x 442 mm x 420 mm |
Chassis height | 1U |
Chassis weight | 8.4kg |
Power supply type | 1000 W PoE AC (pluggable) |
Rated voltage range | AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz |
S5732-H48UM2CC Base(48*100M/1G Ethernet ports,Optional RTU upgrade to 2.5/5/10G, 4*25GE SFP28 + 2*40GE or 2*100GE QSFP28 ports, 1*expansion slot, PoE++, without power module)
Data sheet Huawei CloudEngine S5732-H Series Multi-GE Switches
