Product
|

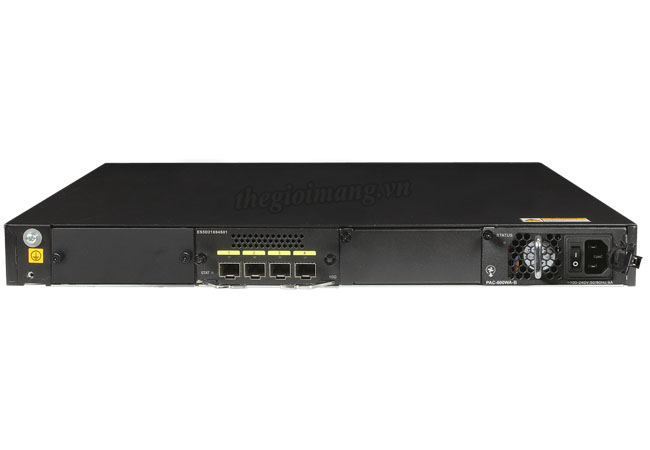

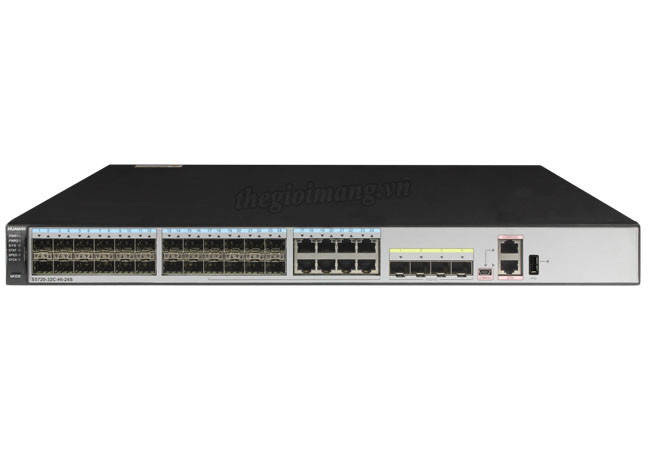

S5720-32C-HI-24S-AC |
|
Fixed port
|
24 x 100/1000Base-X ,8 of which are dual-purpose 10/100/1000 or SFP, 4 x 10GE SFP+
|
|
MAC address table
|
- IEEE 802.1d compliance
- MAC address learning and aging
- Static, dynamic, and blackhole MAC address entries
- Packet filtering based on source MAC addresses
- MAC address entries: 128K
|
|
VLAN
|
- 4K VLANs
- Guest VLAN and voice VLAN
- GVRP
- MUX VLAN
- VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
- 1:1 and N:1 VLAN Mapping
|
|
Ring protection
|
- RRPP ring topology and RRPP multi-instance
- Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
- SEP
- STP, RSTP, and MSTP
- BPDU protection, root protection, and loop protection
- BPDU Tunnel
|
|
Reliability
|
- Ethernet OAM (IEEE 802.3ah and 802.1ag)
- ITU-Y.1731
- DLDP
- LACP
|
|
MPLS features
|
- MPLS L3VPN
- MPLS L2VPN(VPWS/VPLS)
- MPLS-TE
- MPLS QoS
|
|
IP routing
|
Static routing
|
|
IPv6 features
|
- Neighbor Discovery (ND)
- Path MTU (PMTU)
- IPv6 ping, IPv6 tracert, and IPv6 Telnet
- ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
- MLD v1/v2 snooping
|
|
Multicast
|
- IGMP v1/v2/v3 snooping and IGMP fast leave
- Multicast forwarding in a VLAN and multicast replication between VLANs
- Multicast load balancing among member ports of a trunk
- Controllable multicast
- Port-based multicast traffic statistics
|
|
QoS/ACL
|
- Rate limiting on packets sent and received by an interface
- Packet redirection
- Port-based traffic policing and two-rate three-color CAR
- Eight queues on each port
- WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
- Re-marking of the 802.1p priority and DSCP priority
- Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID
- Rate limiting in each queue and traffic shaping on ports
|
|
Access Security
|
DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security
|
|
Management and maintenance
|
- Virtual cable test
- Port mirroring and RSPAN (remote port mirroring)
- Remote configuration and maintenance using Telnet
- SNMP v1/v2c/v3
- RMON
- Web NMS
- HGMP
- System logs and alarms of different levels
|
|
Interoperability
|
- Supports VBST (Compatible with PVST/PVST+/RPVST)
- Supports LNP (Similar to DTP)
- Supports VCMP (Similar to VTP)
|
|
Operating environment
|
- Operating temperature: 0℃–50℃
- Relative humidity: 10%–90% (non-condensing)
|
|
Input voltage
|
AC:
- Rated voltage range: 100 V to 240 V AC, 50/60 Hz
- Maximum voltage range: 90 V to 264 V AC, 47/63 Hz
|
|
Dimensions (W x D x H)
|
442 x 420 x 43.6 mm
|
|
Powerconsumption
|
<172.7W
|
