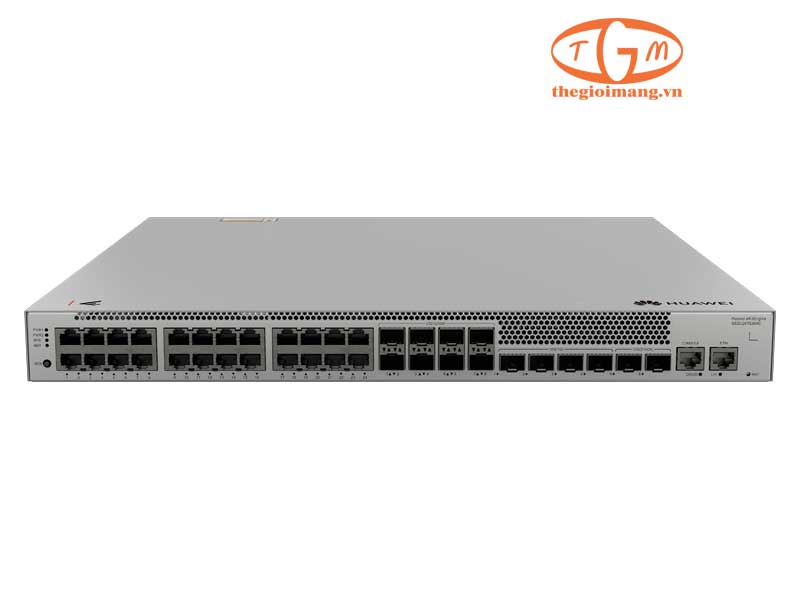

Switch Huawei eKitEngine S530-24T8J4XE L3 24x1GE RJ-45, 8x2.5GE SFP, 4xSFP+, 2xstack ports
Huawei eKitEngine S530-24T8J4XE là Switch Gigabit quản lý được thiết kế cho doanh nghiệp vừa và nhỏ (SMB). Với nhiều mẫu mã linh hoạt như 24 cổng 1GE RJ-45, 24 cổng hybrid quang/điện 1GE, và 48 cổng quang 1GE, eKitEngine S530 Series cung cấp khả năng kết nối Ethernet linh hoạt, bảo mật đa dạng, phương thức quản lý phong phú, hiệu suất cao và khả năng xử lý dịch vụ mở rộng. S530 phù hợp để sử dụng làm switch lõi trong mạng campus quy mô nhỏ hoặc switch truy cập trong mạng campus quy mô lớn hoặc trung bình, mang lại giải pháp mạng thông minh và dễ dàng hơn cho doanh nghiệp.
Đặc điểm nổi bật của Huawei eKitEngine S530
Thông số kỹ thuật
| Model | eKitEngine S530-24T8J4XE |
| Switching capacity | • 208 Gbps |
| Packet forwarding rate | • 155 Mpps |
| Fixed port | • 24 x 10/100/1000BASE-T ports, 8 x 2.5GE/GE/100M SFP ports, 4 x 10GE SFP+ ports, 2 x 10GE stack ports |
| Chassis dimensions (H x W x D) | • 43.6 mm x 442 mm x 420 mm |
| Chassis height | • 1 U |
| Weight in full configuration | • 6.98 kg |
| Power module type | • Built-in AC power module, 1+1 backup |
| Rated voltage | • AC input: 100 V AC to 240 V AC, 50/60 Hz • High-voltage DC input: 240 V DC |
| Maximum voltage | • AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz • High-voltage DC input: 190 V DC to 290 V DC |
| Maximum power consumption | • 53.12 W |
| Noise | • Sound power at normal temperature: 41.9 dB (A) • Sound power at high temperature: 58.6 dB (A) • Sound pressure at normal temperature: 29.9 dB (A) |
| Long-term operating temperature | • –5°C to +50°C (0 m to 1800 m) • From 1800 m to 5000 m: Operating temperature decreases by 1°C for every 220 m increase in altitude |
| Storage temperature | • –40°C to +70°C |
| Relative humidity | • 5% RH to 95% RH, non-condensing |
| Power port surge protection | • AC power port: ±6 kV in differential mode, ±6 kV in common mode |
| Heat dissipation mode | • Air cooling, intelligent fan speed adjustment |
| Service Features | |
| MAC address table | • Compliance with IEEE 802.1D • Automatic MAC address learning and aging • Static, dynamic, and blackhole MAC address entries • Source MAC address filtering • Interface-based MAC address learning limiting |
| VLAN features | • 4K VLANs • Voice VLAN • MUX VLAN • VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports • Basic QinQ and selective QinQ |
| Reliability | • Smart Link with millisecond-level protection on the active and standby links • ERPS (G.8032) • STP (IEEE 802.1D), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s) • BPDU protection, root protection, loop protection • BPDU tunnel • Link Layer Discovery Protocol (LLDP) |
| Multicast | • PIM DM, PIM SM, and PIM SSM • IGMPv1/v2/v3, IGMPv1/v2/v3 snooping, MLD snooping, and IGMP fast-leave • Multicast forwarding in a VLAN and multicast replication between VLANs • Multicast load balancing among member ports of a trunk • Port-based multicast traffic statistics • Multicast VLAN |
| IP routing | • Static routing and policy-based routing (PBR) • Up to 512 FIBv6 entries • RIP, RIPng, OSPF, OSPFv2, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, VRRP6 and ECMP |
| IPv6 features | • Neighbor discovery (ND) • Path MTU (PMTU) • IPv6 ping, IPv6 tracert, IPv6 Telnet, and DHCPv6 server |
| QoS/ACL | • Inbound and outbound traffic rate limiting on a port • Packet redirection • Port-based traffic policing and two-rate three-color CAR • Eight queues on each port • DRR, SP, and DRR+SP queue scheduling algorithms • Re-marking of 802.1p and DSCP priorities for packets • Packet filtering on Layer 2 to Layer 4 (source/destination MAC & IP, TCP/UDP port, VLAN, etc.) • Queue-based traffic shaping and rate limiting |
| Security features | • DHCP client, DHCP server, and DHCP snooping • DHCPv6 relay and DHCPv6 client • Defense against DoS, ARP, and ICMP attacks • Binding of IP/MAC/port/VLAN • Port isolation, port security, sticky MAC • Blackhole MAC address entries • MAC address authentication • MAC address learning limitation • IEEE 802.1X authentication • AAA, RADIUS, HWTACACS, NAC authentication • SSH v2.0, HTTPS • CPU protection, blacklist/whitelist • Hierarchical user management and password protection |
| Management and maintenance | • iStack • Cloud management via NETCONF or YANG • Virtual cable test (VCT) • Remote configuration and maintenance via Telnet • SNMPv1/v2/v3 • RMON • Web system • Network management system (NMS) • LLDP/LLDP-MED • System logs and multi-level alarms • IEEE 802.3az Energy Efficient Ethernet (EEE) • Port mirroring |
| Interoperability | • VLAN-based Spanning Tree (VBST), compatible with PVST, PVST+, RPVST • Link-type Negotiation Protocol (LNP), similar to Cisco DTP • VLAN Central Management Protocol (VCMP), similar to Cisco VTP |
S530-24T8J4XE : 24*10/100/1000BASE-T ports, 8*2.5GE/GE/100M SFP ports, 4*10GE SFP+ ports, 2*10GE stack ports, dual built-in AC power.
