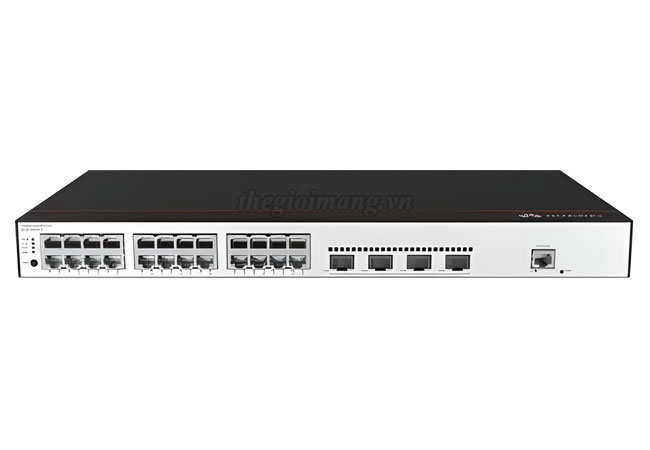

Huawei CloudEngine S3710-H24T4S-A Gigabit Ethernet switch :
Thiết bị chuyển mạch Switch Huawei CloudEngine S3710-H24T4S-A
| Model | CloudEngine S3710-H24T4S-A |
| Fixed port | 24 x 10/100/1000BASE-T ports, 4 x GE SFP ports |
| MAC address table | • MAC address learning and aging • 10K MAC entries (MAX) • Static, dynamic, and blackhole MAC address entries • Packet filtering based on source MAC addresses • Interface-based MAC learning limiting |
| VLAN features | • 4094 VLANs • Voice VLAN • MUX VLAN • VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and interfaces • VLAN Stacking |
| Dimensions (H x W x D) | 43.6 mm x 442 mm x 220 mm |
| Chassis height | 1 U |
| Chassis weight (including packaging) | 5.87 kg |
| Power supply type | Built-in AC power |
| Rated input voltage | 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range | • AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| Maximum power consumption | 33.4 W |
| Noise | • Under normal temperature (sound power): 47dB (A) • Under high temperature (sound power): 51dB (A) • Under normal temperature (sound pressure): 35dB (A) |
| Long-term operating temperature | • 0-1800 m altitude: -5°C to +50°C • 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
| Storage temperature | -40°C to +70°C |
| Relative humidity | 5% to 95% (noncondensing) |
| Surge protection Specification (service port) | ±7 kV in common mode |
| Surge protection specification (power port) | • Differential mode: ± 6 kV • Common mode: ± 6 kV |
| Heat dissipation | Air-cooled heat dissipation and intelligent speed adjustment |
| Physical security | One Kensington lock slot, can be used to lock the device to mounting bracket |
CloudEngine S3710-H24T4S-A : 24*10/100/1000BASE-T ports, 4*GE SFP ports, AC power
