Router Huawei NetEngine AR6710-L8T3TS1X2-T :

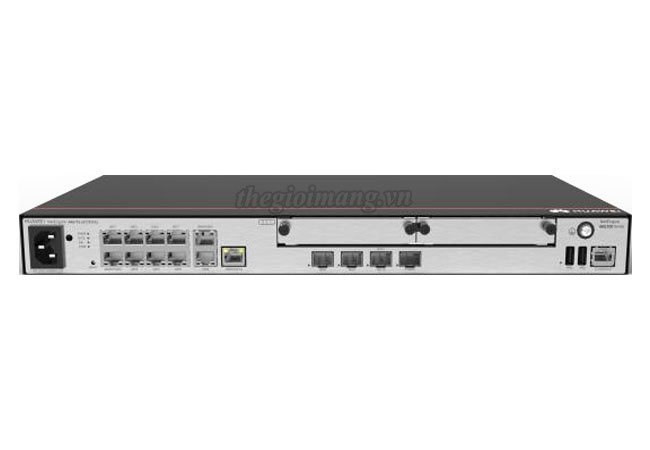

Thiết bị định tuyến Router Huawei NetEngine AR6710-L8T3TS1X2-T
| Model | AR6710-L8T3TS1X2-T |
| System parameters | |
| Processor | ARM64 (4-core) |
| SD-WAN service performance | 1.2G |
| Fixed WAN ports | 2*GE Combo, 1*10GE optical |
| Fixed LAN ports | 1*GE Combo, 8*GE electrical ( All LAN ports can be configured as WAN) |
| SIC slots | 2 |
| WSIC slots (default/maximum2) | 0/1 |
| Auxiliary or console port | 1 x RJ45 console port |
| USB port | 2*USB |
| Memory | 4GB |
| Flash | 2GB |
| TPM | Only NetEngine AR6710-L8T3TS1X2-T Supported |
| Hot swapping | Supported |
| Dimensions and Weight | |
| Dimensions without mounting brackets (H x W x D) | 44.4mm × 442mm × 220.4mm |
| Dimensions with packaging(H x W x D) | 390mm × 570mm × 390mm |
| Rack | IEC |
| Occupied rack space | 1U |
| Power specifications, power consumption, and heat dissipation | |
| Rated input voltage (AC) | 100 V to 240 V |
| Rated input frequency (AC) | 50 Hz/60 Hz |
| Maximum input voltage (AC) | 90 V to 264 V |
| Maximum input current (AC) | 2A |
| Maximum output power (AC) | 70 W |
| Power supply redundancy | NA |
| Fan modules | Built-in unpluggable fan modules |
| Airflow | Left to right |
| Noise | 49.6dB |
| Environmental specifications | |
| Operating temperature | 0℃～ 45℃ |
| Operating humidity | 5% to 95% (non condensing) |
| Operating altitude | < 5000 m |
| Storage temperature | –40°C to + 70°C |
| Storage altitude | < 5000 m |
