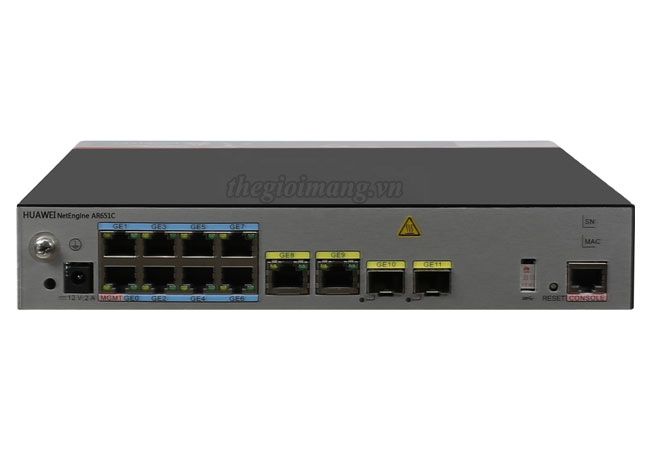

Thiết bị định tuyến Router Huawei NetEngine AR651C
Model | NetEngine AR651C |
System Parameters | |
Forwarding Performance (LAN - > WAN + WAN - > LAN, NAT + ACL + QoS, IMIX, Default) | 1 Gbps |
Forwarding Performance (LAN - > WAN + WAN - > LAN, NAT + ACL + QoS, IMIX, Boost License) | 1.5 Gbps |
SD-WAN Typical Scenarios Throughput | 400 Mbps |
SD-WAN Basic Scenarios Throughput | 600 Mbps |
IPsec performance (IMIX) | 1 Gbps |
IPsec performance (1400 bytes) | 2 Gbps |
Fixed WAN ports | 2 x GE SFP, 2 x GE RJ45 |
Fixed LAN ports | 8 x GE RJ45(can be configured as WAN) |
Service extension slot | - |
Wi-Fi | - |
PoE | - |
PoE capability | - |
USB port | 1 x USB 3.0 (compatible with USB 2.0) |
Auxiliary or console port | 1 x RJ45 console port |
Memory | 1 GB |
Flash memory | 1 GB |
Dimensions and Weight | |
Router dimensions, With no mounting bracket installed (H x W x D) | 43.6 mm x 250.0 mm x 210.0 mm |
Packaging dimensions (H x W x D) | 155 mm x 455 mm x 280 mm |
Weight | 1.75 kg |
Rack | IEC |
Occupied rack space | 1U |
Power Specifications, Power Consumption, and Heat Dissipation | |
Rated input voltage range (AC) | 100 V to 240 V |
Rated input frequency (AC) | 50 Hz/60 Hz |
Maximum input voltage range (AC) | 90 V to 264 V |
Maximum input current (AC) | 3:00 AM |
Maximum output power (AC) | 36 W |
Typical power consumption | 22.1 W |
Maximum power consumption | 25.2 W |
Fan module | Natural heat dissipation, without fans |
Airflow | N/A |
Noise level | N/A |
Environment Parameters | |
Operating temperature | 0 ºC to 45 ºC |
Operating humidity | 5% to 95% (non-condensing) |
Operating altitude | < 5000 m (16404.2 ft.) |
Storage temperature | –40 ºC to +70 ºC |
Storage altitude | < 5000 m (16404.2 ft.) |
NetEngine AR651C : AR651C AC host, 10*GE RJ45,2*GE SFP, 1*USB 3.0, with the AC/DC adapter
