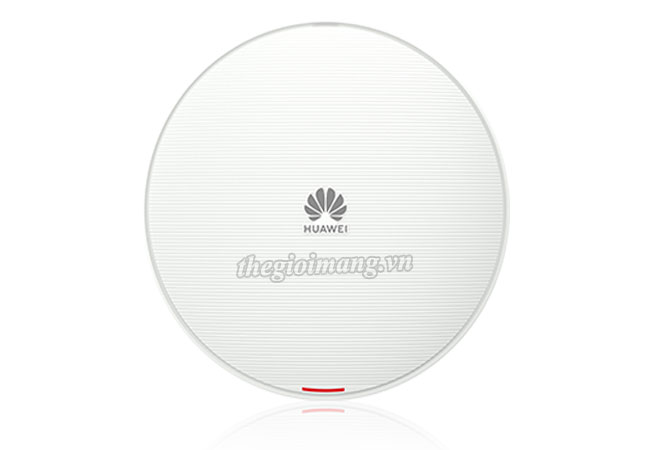

Thiết bị Wireless Huawei AirEngine 6761-22T indoor Wi-Fi 6E Access Point
| Model | AirEngine 6761-22T |
| Technical specifications | |
| Dimensions (Diameter × Height) | Φ220 mm x 50 mm |
| Weight | 1.07 kg |
| Interface type | • 1 x 100M/1G/2.5GE (RJ45) • 1 x 10M/100M/1GE (RJ45) • 1 x USB |
| Bluetooth | BLE 5.2 |
| LED indicator | Indicates the power-on, startup, running, alarm, and fault states of the system |
| Power specifications | |
| Power input | • DC: 12 V ± 10% • PoE power supply: In compliance with 802.3at NOTE : When 802.3af power is supplied, the AP will operate with restrictions, for example the USB port is disabled. |
| Maximum power consumption | • 24.2 W (excluding USB) NOTE : The actual maximum power consumption depends on local laws and regulations |
| Environmental specifications | |
| Operating temperature | -10℃ to +50℃ |
| Storage temperature | -40°C to +70°C |
| Operating humidity | 5% to 95% (non-condensing) |
| Altitude | -60 m to +5000 m |
| Atmospheric pressure | 53 kPa to 106 kPa |
| Radio specifications | |
| Antenna type | Built-in smart antennas |
| Antenna gain | • 2.4 GHz: 4 dBi • 5 GHz: 5 dBi • 6 GHz: 5 dBi NOTE - The gains above are the single-antenna peak gains. - The equivalent antenna gain after all 2.4 GHz or 5 GHz antennas are combined is 2 dBi in 2.4 GHz, 3 dBi in 5 GHz, 3 dBi in 6 GHz. |
| Maximum number of SSIDs for each radio | ≤ 16 |
| Maximum number of users | ≤ 1536 (512/Radio) NOTE : The actual number of users varies according to the environment. |
| Maximum transmit power | • 2.4 GHz: 23 dBm (combined power) • 5 GHz: 23 dBm (combined power) • 6 GHz: 25 dBm (combined power) NOTE : The actual transmit power depends on local laws and regulations. |
| Power increment | 1 dBm |
