Trang chủ > Sản phẩm > Thiết bị mạng HPE > Router HPE > HPE FlexNetwork MSR1003 8S AC Router (JH060A)

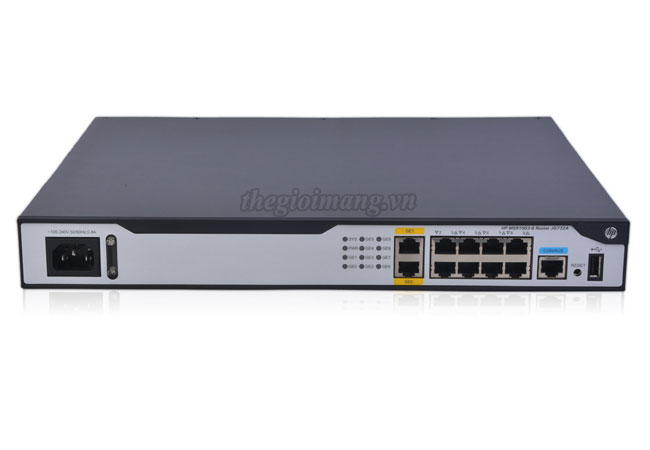

HPE FlexNetwork MSR1003 8S AC Router (JH060A)

Bộ đinh tuyến Router HPE FlexNetwork MSR1003 8S AC (JH060A) : ● 3 SIC slots, or 1 DSIC slot, and 1 SIC slot ● 2 RJ-45 autosensing 10/100/1000 WAN ports ● 8 RJ-45 autosensing 10/100/1000 LAN ports ● 1 USB 2.0 port ● 1 RJ-45 console port to access limited CLI port
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị định tuyến Router HPE FlexNetwork MSR1003 8S AC (JH060A)

Model HPE FlexNetwork MSR1003 8S AC Router (JH060A)
System Specification
I/O ports and slots 3 SIC slots, or 1 DSIC slot, and 1 SIC slot
2 RJ-45 autosensing 10/100/1000 WAN ports
8 RJ-45 autosensing 10/100/1000 LAN ports
Additional portsand slots 1 USB 2.0 port
1 RJ-45 console port to access limited CLI port
Access Point characteristics Radios (via optional modules): 3G, 4G LTE
Memory andprocessor RISC @ 667 MHz
1 GB DDR3 SDRAM
256 MB flash
Performance Throughput:
up to 500 Kp/s (64-byte packets)
Routing table size:
30000 entries (IPv4)
30000 entries (IPv6)
Forwarding table size:
30000 entries (IPv4)
30000 entries (IPv6)
Mounting andenclosure Desktop or can be mounted in a EIA standard 19-inch telco rack when used with the rack-mount kit in thepackage
Physical specifications
Dimensions (H x W x D) 4.42 x 36 x 30 cm (1.74 x 14.17 x 11.81 in)
1U height
Weight 3.15 kg (6.94 lb)
Electrical specifications
Voltage 100 - 240 V ac, rated
Maximum power rating 30 W
Frequency 50/60 Hz
Reliability MTBF (years) :137.5
Environmental specifications
Operating temperature 0° to 45° C (32° to 113° F)
Non-operating/Storagerelative humidity 45% to 98% non-condensing
Altitude 5 km (up to 16,404 ft)
Maximum heat dissipation 65 BTU/hr (68.58 kJ/hr)
