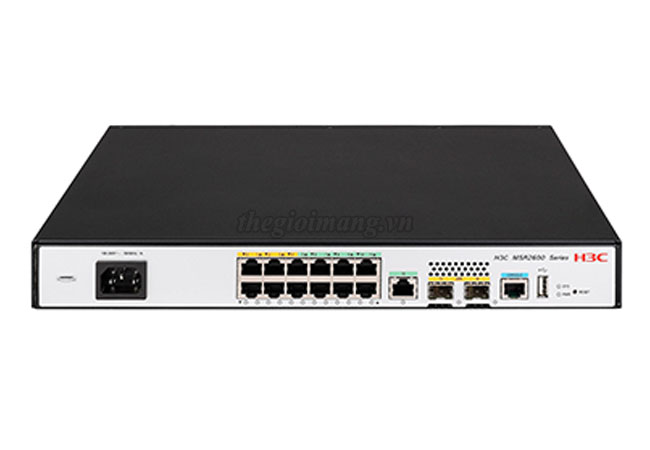

Model	MSR2600-15-X1
Hardware specifications
CPU	• 1.6GHz
Forwarding Performance In Service (IMIX)	• 1 Gbps
Memory	• 1GB
Flash	• 512MB(NAND FLASH)
USB ports	• 1
CON ports	• 1
WAN ports	• 5 × GE copper port • 2 × SFP port
LAN ports	• 8 x GE(RJ45)
SIC slots	• 2
Maximum power consumption	• 36W
Power input	• 100 to 240 VAC @ 50 Hz/60 Hz
Rack height	• 1 RU
Dimensions (H × W × D)	• 44.2 × 360 × 300 mm (1.74 × 14.17 × 11.81 in)
Weight	• 2.9 kg (6.39 lb)
Operating temperature	• 0ºC to 45ºC (32°F to 113°F)
Operating humidity	• 5% RH to 95% RH, non-condensing
EMC	• FCC Part 15 (CFR 47) CLASS A • ICES-003 CLASS A • VCCI-3 CLASS A • VCCI-4 CLASS A • CISPR 22 CLASS A • EN 55022 CLASS A • AS/NZS CISPR22 CLASS A • CISPR 24 • EN 55024 • EN 61000-3-2 • EN 61000-3-3 • EN 61000-6-1 • ETSI EN 300 386 • EN 301 489-1 • EN 301 489-17
Security	• UL 60950-1 • CAN/CSA C22.2 No 60950-1 • IEC 60950-1 • EN 60950-1/A11 • AS/NZS 60950 • EN 60825-1 • EN 60825-2 • FDA 21 CFR Subchapter J • GB 4943
Software specifications
Layer 2 switching	• Ethernet, Ethernet II, VLAN (port-based VLAN, guest VLAN), 802.3x, 802.1p, 802.1Q, 802.1X, STP (802.1D), RSTP (802.1w), MSTP (802.1s), PPP, PPPoE client, PPPoE server, HDLC, and DDR
IP services	• Unicast/multicast, TCP, UDP, IP option, IP unnumbered, policy-based routing, NetStream, and sFlow
IP application	• Ping, Tracert, ICMP, DHCP server, DHCP relay, DHCP client, DNS client, DNS proxy, DDNS, NTP, and SNTP
IPv4 routing	• Static routing • Dynamic routing: RIPv1/v2, OSPFv2, BGP, IS-IS • Route iteration • Policy routing • Equal-cost multi-path routing (ECMP) • Multicast routing: IGMPv1/v2/v3, PIM-DM, PIM-SM, MBGP, MSDP
IPv6	• IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, NAT-PT, 6PE, and DS-LITE • IPv6 tunneling: Manual tunneling, automatic tunneling, GRE tunnel, 6to4, ISATAP • Static routing • Dynamic routing: RIPng, OSPFv3, IS-ISv6, BGP4+ • IPv6 multicast: MLDv1/v2, PIM-DM, PIM-SM
QoS	• LR, port-based mirroring, Port Trust Mode, and port priority • Committed access rate (CAR) • FIFO, WFQ, CBQ • Generic Traffic Shaping (GTS) • Traffic classification
3G/4G	• Support for TDD/FDD LTE, TD-SCDMA, CDMA2000/EVDO, and WCDMA/HSPA+
Security	• PPPoE client & server, portal, 802.1X • Local authentication, RBAC, RADIUS, TACACS+ • Basic Firewall Function, ASPF, ACL, filter, connection limit • IKE, IPsec • L2TP, NAT/NAPT, PKI, RSA, SSH v1.5/2.0, URPF, mGRE, GRE • ARP attack prevention • SSL VPN, ADVPN, GDVPN • AES, DES, 3DES,MD5, SHA1
MPLS	• LDP, Static LSP • L3VPN: Inter-AS MPS VPN (Option 1/2/3), MPLS nested VPN, hierarchy of PE (HoPE), dual-homed CE, MCE, and multirole host • L2VPN: Martini, Kompella, CCC PWs and static PWs • MPLS TE, RSVP TE
High availability	• VRRP, VRRPv3 • Bandwidth-based load balancing and backup • IP address-based load balancing and backup • NQA collaboration with routing, VRRP or interface backup
Management and maintenance	• SNMP v1/v2c/v3, MIB, SYSLOG, RMON • BiMS remote management, booting from USB drive • CLI, file system, and dual image • DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private, and SNMP • Console port login, Telnet (VTY) login, SSH login, and FTP login
