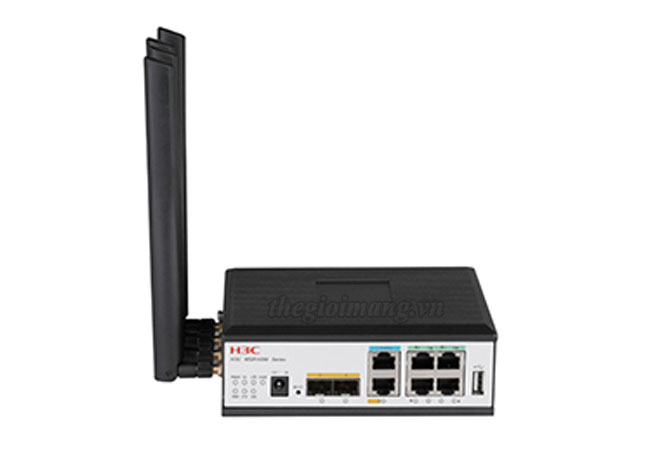

Model	MSR1004S-5G-GL
Hardware specifications
Forwarding Performance In Service (IMIX)	• 1 Gbps
Memory	• 1 GB
Flash	• 512 MB
Console port	• 1
USB 2.0 port	• 1
WAN Ethernet port	• 1 × GE copper port • 2 × GE fiber ports
LAN Ethernet port	• 4 × GE copper ports
5G/4G	• 5G NR SA/NSA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 • LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 • LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48 • LAA: B46 • WCDMA: B1/B2/B3/B4/B5/B6/B8/B19
5G/4G antenna	• 4
SIM cards	• 2
Wi-Fi	• N/A
Wi-Fi antenna	• N/A
Dying gasp	• Supported
Max power consumption	• 24 W
Power supply	• External power adapter 100 to 240 V, 50/60 Hz
Dimensions (H × W × D)	• 52.4 × 150 × 127 mm (2.06 × 5.91 × 5 in)
Operating temperature	• 0°C～55℃
Ambient relative temperature	• 5 % to 95%, noncondensing
Software specifications
Layer 2 switching	• Ethernet, Ethernet II, VLAN, 802.3x, 802.1p, 802.1q, 802.1X, STP (802.1D), RSTP (802.1w), MSTP (802.1s), PPP, PPPoE client, PPPoE server
IP services	• TCP, UDP, IP option, IP unnumbered • Policy-based routing, NetStream, sFlow • ECMP • UCMP
IP applications	• Ping, Tracert, ICMP, DHCP server, DHCP relay, DHCP client, DNS client, DNS proxy, DDNS, UDP Helper, NTP, SNTP
IPv4 routing	• Static routing • Dynamic routing: RIPv1/v2, OSPFv2, BGP, IS-IS • Route iteration • Routing policy • Multicast routing protocols: IGMPv1/v2/v3, PIM-DM, PIM-SM, MBGP, MSDP
IPv6	• IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, NAT-PT, 6PE, DS-LITE • IPv6 tunnel: manually configured IPv6 tunnel, automatic IPv6 tunnel, GRE tunnel, 6to4 tunnel, ISATAP tunnel • Static routing • Dynamic routing protocols: RIPng, OSPFv3, IS-ISv6, BGP4+ • IPv6 multicast protocols: MLDv1/v2, PIM-DM, PIM-SM
QoS	• LR, port-based mirroring, priority trust mode on a port, and port priority • Committed access rate (CAR) • FIFO, WFQ, CBQ • Generic Traffic Shaping (GTS) • Traffic classification
5G/4G	• 5G NR, TDD/FDD LTE, WCDMA/HSPA+
Security	• Portal, 802.1X • Local authentication, RBAC authentication, RADIUS authentication, TACACS+ authentication • ASPF, ACL, filter, security zone-based firewall, connection limit, IPS • IKE/IPsec VPN, ADVPN, GDVPN, L2TP VPN, GRE VPN • NAT/NAPT, PKI, RSA, URPF • DDoS attack prevention, ARP attack prevention, URL filtering • EAD • DPI • SM2, SM3, SM4 encryption algorithms
SDN	• NETCONF, OpenFlow, telemetry • VXLAN, EVPN • Segment routing • ZTP through USB drive, URL, and DHCP • SRv6: OSPFv3 for SRv6 IS-IS for SRv6 SRv6 policy SRv6 policy-based traffic steering EVPN L3VPN over SRv6 EVPN L3VPN over SRv6 policy SRv6 policy-based traffic statistics SRv6 OAM BFD for SRv6 SRv6 TI-LFA
MPLS	• LDP, Static LSP • L3VPN: Inter-domain MPLS VPN (Option1/2/3), nested MPLS VPN, hierarchy PE (HoPE), CE dual homing, MCE, and multi-role host • L2VPN: Martini, Kompella, CCC and SVC • MPLS TE, RSVP TE
High availability	• VRRP, VRRPv3 • Multi-link load balancing and backup • Network quality analyzer (NQA), supporting collaboration with routing, VRRP, and interface backup
Management and maintenance	• SNMP v1/v2c/v3, TR069, syslog, RMON • Telnet, SSHv1.5/2.0, FTP • EAA • CLI management, file system management, dual image • NQA DHCP test, NQA FTP test, NQA HTTP test, NQA ICMP test, NQA UDP public test, NQA UDP private test, NQA TCP public test, NQA TCP private test, and NQA SNMP test
