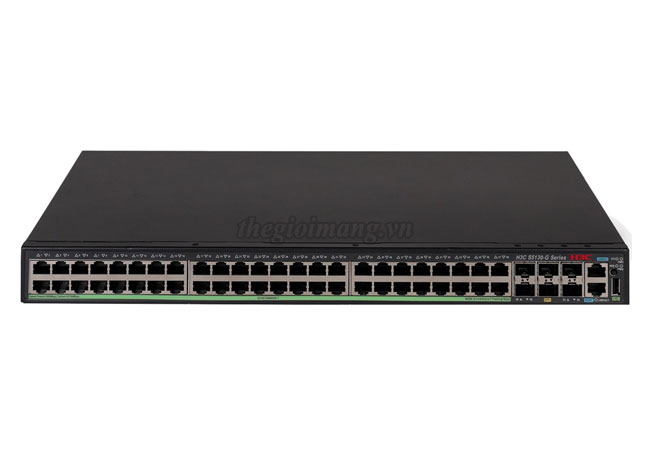

LS-S5130S-54S-EI-G - H3C S5130S-54S-EI-G L2 Ethernet Switch :
Thiết bị chuyển mạch Switch H3C LS-S5130S-54S-EI-G
| Model | LS-S5130S-54S-EI-G |
| Hardware Specifications | |
| Port Switching Capacity | • 216Gbps |
| Forwarding Capacity | • 161Mpps |
| Box Switching Capacity | • 336Gbps |
| FLASH/RAM | • 3.5GB / 1GB |
| Memory Capacity of Packet Buffer(bytes) | • 3MB |
| Latency (64byte/µs) | • GE: < 5µs • 10GE < 3µs |
| Dimensions(W× D×H) | • 440×260×43.6 mm |
| Weight | • 3.9kg (with APD 70W) |
| 10/100/1000 Base-T Port | • 48 |
| SFP+ Port | • 6 |
| Maximum Stacking Num | • 9 |
| Input Voltage | • AC: Rated voltage range: 100V~240V AC, 50/60Hz |
| Power Consumption(full configuration) | • MIN: SINGLE AC：26.3W Dual AC：27.0W • MAX: SINGLE AC：59.7W Dual AC：60.1W |
| Fan NUM(fiexd) | • 2 |
| MTBF(Year) | • 151.15 |
| MTTR(Hour) | • 1 |
| NOISE(ISO7779) | • 36.7dB/45.2dB |
| Operating Temperature |
• -5℃ ~ 50℃(normal operating temperature) • -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) • -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) |
| Storage Temperature | • -40℃ ~ 70℃ |
| Operating & Storage Relative Humidity (noncondensing) | • 5% ~ 95% |
| Software Specifications | |
| Port Aggregation | • GE/10GE port aggregation • Dynamic aggregation • Static aggregation • Cross-device aggregation |
| Ethernet Interface | • MDIX |
| Broadcast/Multicast/Unicast storm suppression | • Storm suppression based on port bandwidth percentage • Storm suppression based on PPS • Storm suppression based on BPS • Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression |
| IRF2 | • Distributed device management, distributed link aggregation, and distributed resilient routing • Stacking through standard Ethernet interfaces • Local device stacking and remote device stacking |
| MAC Address Table | • Static MAC address • Blackhole MAC address • Mac address authentication |
| VLAN | • Port-based VLAN • MAC-based VLAN • Protocol-based VLAN • QinQ and selective QinQ • VLAN mapping • Voice VLAN • GVRP • LLDP/ LLDP-MED • Dynamic VLAN assignment • Guest VLAN |
| DHCP | • DHCP Client • DHCP Snooping • DHCP Snooping option82 • DHCP Relay • DHCP Server • DHCP auto-config |
| IP Routing | • Static routing • RIPv1/v2 and RIPng • OSPFv1/v2 and OSPFv3 • Inter VLAN routing |
| Multicast | • IGMP Snooping V2/V3 • MLD Snooping • Multicast VLAN |
| Layer 2 ring Network Protocol | • STP/RSTP/MSTP/PVST/PVST+ • Smart Link • RRPP • G.8032 ERPS (Ethernet Ring Protection Switching) |
| ACL | • Packet filtering at Layer 2 through layer 4 Traffic classification based on source MAC addresses, destination MAC addresses, source IPv4/IPv6 addresses, address, destination, IP (IPv4/IPv6) address, TCP/UDP port number, VLAN traffic classification • Time range-based ACL • VLAN-based ACL • Bidirectional ACL |
| QoS | • Port rate limit (receiving and transmitting) • Packet redirection • Committed access rate (CAR) • Eight output queues on each port • Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR • 802.1p DSCP remarking • IPv4 and IPv6 CoS |
| Traffic Statistic | • Sflow |
| Forwarding | • Wire-speed/Line-rate architecture |
| Mirroring | • Port mirroring • Proportion of Port Miirroring (N:1) • Traffic Mirroring • Proportion of Traffic Mirroring(N:1) • RSPAN |
| Security | • Hierarchical user management and password protection • AAA authentication support • RADIUS authentication • HWTACACS • SSH2.0 • Port isolation • 802.1X authentication, centralized MAC authentication • Port security • IP Source Guard • HTTPs • EAD • Dynamic ARP Inspection • Support BPDU guard, Root guard • CPU Protection |
| Management and Maintenance | • Loading and upgrading through XModem/FTP/TFTP • Multiplesystemimagesstored • Zero Touch Provisioning • Configuration through CLI, Telnet, and console port • SNMPv1/v2c/v3 and Web-based NMS • SNMP FOR IPV6 • Restful • Python • Remote monitoring (RMON1 and RMON2 ) alarm, event, and history recording IMC NMS • System log, alarming based on severities, and output of debugging information • NTP • SCP • SFTP6 • HTTP/HTTPS • Ping, Tracert • Virtual cable test (VCT) • Device link detection protocol (DLDP) • Loopback-detection |
| Performance Specification | |
| MAC address entries | • 32K |
| VLAN table | • 4K |
| VLAN interface | • 32 |
| Active VLAN | • 4K |
| IPv4 routing entries | • 12K |
| IPv4 ARP entries | • 1024 |
| IPv4 ACL entries | • Ingress: 3750 (Keep 100) Egress: 512 |
| IPv4/IPv6 multicast L2 entries | • 8000 |
| IPv4/IPv6 multicast L3 entries | • 4000 |
| QOS forward queues | • 8 |
| IPv4 ACL entries | • Ingress: 3750(keep 100) Egress: 512 |
| IPv6 ACL entries | • Ingress: 1875(Keep 100) Egress: 256 |
| IPv6 ND entries | • 12000 |
| Jumbo frame length | • 13312 |
| MAX frame length | • 1536 |
| MAX num in one link group | • 64 |
| Link group num | • 256 |
| MAX num of VPN | • 2000 |
| Static ARP num | • 12000 |
| Dynamic ARP num | • 12000 |
| Group of RMON | • 4 |
LS-S5130S-54S-EI-G : H3C S5130S-54S-EI-G L2 Ethernet Switch with 48*10/100/1000BASE-T Ports and 6*1G/10G BASE-X SFP Plus Ports,(AC)
Data sheet H3C S5130S-EI-G Series Enhanced Gigabit Access Switches
LS-5130S-28P-EI-GL - H3C S5130S-EI Gigabit Access Switch :
Liên hệ để có giá tốt
LS-5130S-52P-EI-GL - H3C S5130S-EI Gigabit Access Switch :
Liên hệ để có giá tốt
LS-5130S-52P-PWR-EI-GL - H3C S5130S-EI Gigabit Access Switch...
Liên hệ để có giá tốt

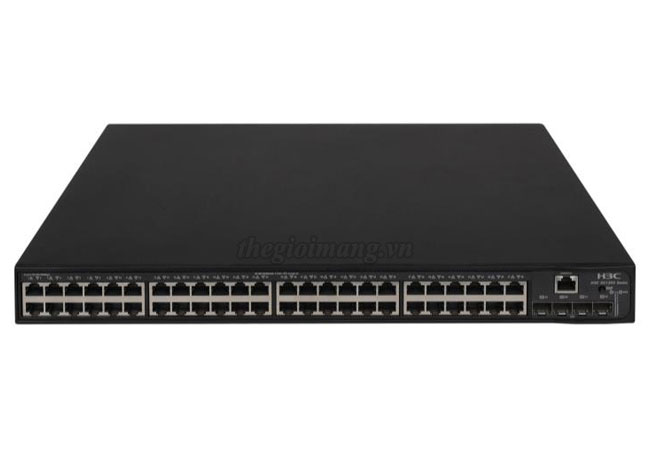

LS-5130S-52P-PWR-EI-AC-GL - H3C S5130S-EI Gigabit Access Switch...
Liên hệ để có giá tốt
LS-5130S-28S-EI-GL - H3C S5130S-EI Gigabit Access Switch :
Liên hệ để có giá tốt

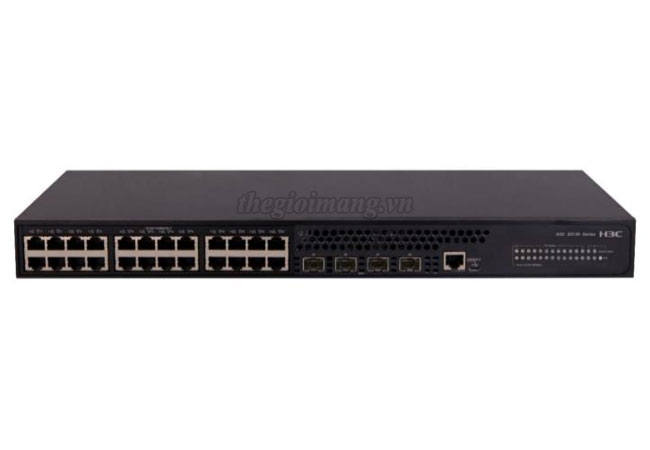

LS-5130S-28S-EI-H1-GL - H3C S5130S-EI Gigabit Access Switch...
