LS-6805-54HT - H3C S6805-54HT L3 Ethernet Switch :
Thiết bị chuyển mạch Switch Layer 3 H3C LS-6805-54HT
| Model | LS-6805-54HT |
| Hardware Specification | |
| Dimensions (H × W × D) | • 44 × 440 × 460 mm |
| Weight | • ≤ 10 kg |
| Serial console port | • 1 |
| Out-of-band management port | • One GE copper port and one GE fiber port |
| Mini USB console port | • 1 |
| USB port | • 1 |
| QSFP28 port | • 6 |
| SFP+ port | • N/A |
| 10G Base-T port | • 48 |
| CPU | • 2.4 GHz@4 Cores |
| Flash/ SDRAM | • 4G/8G |
| Latency | • <1μs (64 byte) |
| Switching capacity | • 2.16 Tbps |
| Forwarding capacity | • 1001.7 Mpps |
| Buffer | • 32M |
| AC-input voltage | • 90v AC to 290v AC |
| DC-input voltage | • –36v DC to –72v DC |
| Power module slot | • 2 |
| Fan tray slot | • 5 Hot-swappable fan, fan speed adjustable and wind invertible |
| Air flow direction | • From front to rear or from rear to front |
| Typical power consumption | • AC : 222W • Double AC : 229W • DC : 230W • Double DC : 236W |
| Maximum heat consumption (BTU/hour) | • AC : 757 • Double AC : 781 • DC : 784 • Double DC : 805 |
| MTBF(years) | • 35.4 |
| MTTR(hours) | • 1 |
| Operating temperature | • 0°C to 45°C (32°F to 113°F) |
| Operating humidity (noncondensing) | • 5% to 95% |
| Performance and scalability | |
| Virtualization | |
| IRF2.0 stack | • 9 |
| M-LAG device number | • 2 |
| ED group | • 8 |
| ACL | |
| max number of ingress ACL | • 18K |
| max number of ingress Car | • 2304 |
| max number of ingress Counter | • 10752 |
| max number of egress ACL | • 2048 |
| max number of egress Car | • 1K |
| max number of egress Counter | • 1K |
| Forwarding table | |
| Jumbo frame length(byte) | • 9416 |
| Mirroring group | • 4 |
| PBR policy | • 1000 |
| PBR node | • 256 |
| max number of MAC per switch | • 288K max |
| max number of ARP entries IPv4 | • 272K max |
| max ND table size for IPv6 | • 136K max |
| max number of unicast routes IPv4 | • 324K max |
| max number of unicast routes IPv6 | • 162K max |
| IPv4 l2 multicast group | • 4000 |
| IPv4 l3 multicast group | • 4000 |
| IPv4 multicast routing | • 16K |
| IPv6 l2 multicast group | • 4000 |
| IPv6 l3 multicast group | • 4000 |
| IPv6 multicast routing | • 8K |
| LAGG group | • 1024 |
| LAGG member per group | • 256 |
| ECMP group | • max 4K |
| ECMP member per group | • 2-128 |
| VRF | • 4095 |
| Interface | |
| Loopback interface number | • 1K |
| L3 sub interface number | • 2500 |
| SVI interface number | • 2K |
| VxLAN AC number | • 16K |
| VxLAN VSI number | • 16K |
| VxLAN tunnel number | • 2K |
| VSI interface number | • 8K |
| IPv4 tunnel number | • 2K |
| IPv6 tunnel number | • 2K |
| VLAN number | • 4094 |
| Performance | |
| RIB | • 500K |
| MSTP instance | • 64 |
| PVST instance | • 510 |
| PVST logical port number | • 2000 |
| VRRP VRID | • 255 |
| VRRP group | • 256 |
| NQA group | • 32 |
| Static table | |
| static mac-address | • 4000 |
| static multicast mac-address | • 1K |
| static ARP | • 1K |
| static ND | • 4K |
| static IPv4 routing table | • 2K |
| static IPv6 routing table | • 4000 |

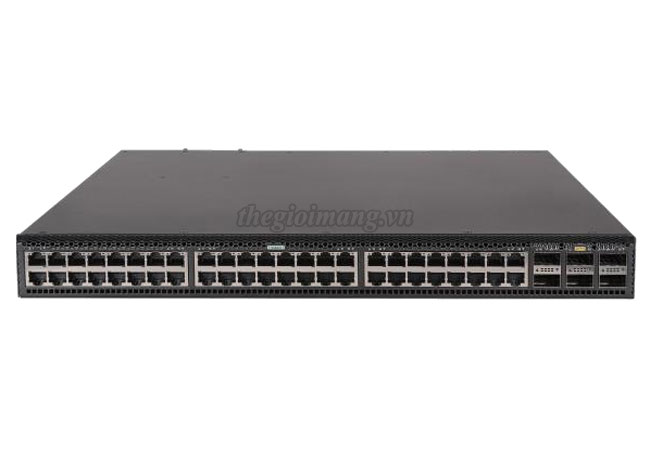

LS-6805-54HT : H3C S6805-54HT L3 Ethernet Switch with 48 10G BASE-T Ports and 6 QSFP28 Ports
