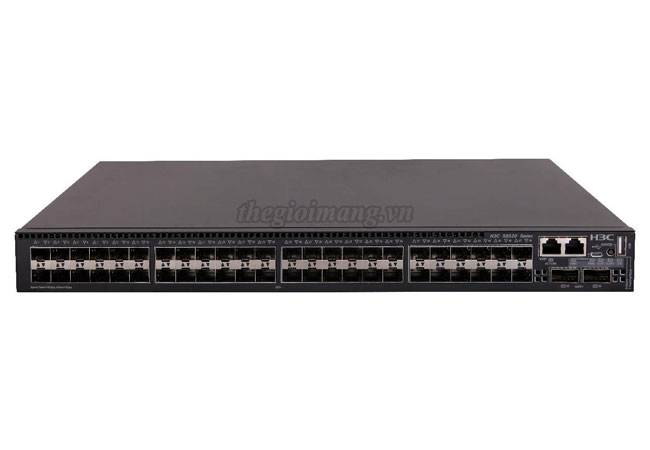

LS-6520X-54QC-EI-GL - H3C S6520X-EI Enhanced 10GE Switch :
Thiết bị chuyển mạch Switch H3C LS-6520X-54QC-EI-GL
| Model | LS-6520X-54QC-EI-GL |
| Hardware Specifications | |
| Port switching capacity | • 1440Gbps |
| Packet forwarding rate | • 1050Mpps |
| System Switching Capacity | • 2.56Tbps |
| Dimensions (H × W × D) | • 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) |
| Weight | • ≤ 7.2KG |
| CPU | • Dual Core, 1.6GHz |
| Flash/SDRAM | • 1GB/2GB |
| Packet Buffer | • 10M |
| Console ports | • 1 |
| Management Ethernet ports | • 1 |
| USB ports | • 1 |
| 100M/1G/2.5G/5G/10G Base-T PoE++ ports | - |
| SFP+ | • 48 |
| QSFP+ | • 2 |
| QSFP28 | - |
| Expansion slots | • 2 |
| Expansion modules | • 2-Port 10G SFP+ Ethernet Optical Interface Module • 4-Port 10G SFP+ Ethernet Optical Interface Module • 8-Port 10G SFP+ with MACSec Interface Module • 8-Port 1/2.5/5G BASE-T Ethernet Copper Interface Module • 8-Port 1/2.5/5/10G BASE-T Ethernet Copper Interface Module • 2-port 25GE SFP28 interface module • 2-port 40GE QSFP+ interface module |
| Input voltage range | • Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz • Max.: 90 VAC to 264 VAC @ 47 Hz to 63 Hz • Rated voltage range: –48 to–60VDC • Max voltage range: –36 to–72VDC |
| Fan trays | • 2 hot swappable fan trays, adjustable speed, and invertible airflow |
| Power Supply slots | • 2 |
| Idle power consumption | • Single AC: 39W • Dual AC: 44W |
| Max. power Consumption | • Single AC: 231W • Dual AC: 234W |
| Operating Temperature | • 0ºC to 45ºC (32°F to 113°F) • -60m-5000m altitude: From 0m, the maximum operating temperature reduce by 0.33℃ for every time 100 the altitude increases by 100m. |
| Storage Temperature | • -40℃ to 70℃(-40℉ to 158℉) |
| Operating & storage humidity | • 5% RH to 95% RH, non-condensing |
| MTBF(Year) | • 60.2 |
| MTTR(Hour) | • 1 |
| Performance Specification | |
| MAC address entries(max) | • 131072 |
| VLAN table | • 4094 |
| VLAN interface | • 1024 |
| IPv4 routing entries(max) | • 65536 |
| IPv4 ARP entries(max) | • 65536 |
| IPv4 ACL entries | • Ingress:2048 • Egress:256 |
| IPv4 multicast L2 entries | • 4000 |
| IPv4 multicast L3 entries | • 4000 |
| IPv6 unicast routing entries | • 32768 |
| QOS forward queues | • 8 |
| IPv6 ACL entries | • Ingress:2048 • Egress:256 |
| IPv6 ND entries | • 32768 |
| IPv6 multicast L2 entries | • 2000 |
| IPv6 multicast L3 entries | • 2000 |
| Jumbo frame length | • 10000 |
| Max Stacking Members | • 9 |
| Max Stacking Bandwidth | • 480Gbps |
LS-6520X-54QC-EI-GL : H3C S6520X-54QC-EI L3 Ethernet Switch(48SFP Plus+2QSFP Plus+2Slot),No Power
