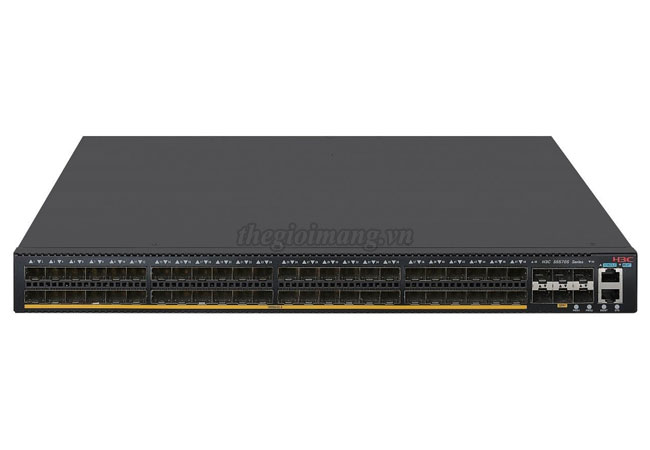

LS-5570S-54F-EI-GL - H3C S5570S-EI High Performance Ethernet Switch :
Thiết bị chuyển mạch Switch H3C LS-5570S-54F-EI-GL
| Model | LS-5570S-54F-EI-GL |
| Hardware Specifications | |
| Port switch capacity(bps) | • 216Gbps |
| System Switching Capacity(bps) | • 598Gbps |
| Packet forwarding rate | • 161Mpps |
| Flash | • 512M |
| SDRAM | • 1G |
| Buffer(byte) | • 2M |
| CPU | • 1GHz, 2Cores |
| Console port | • 1 console port(RJ45) |
| Eth management | • 1 |
| USB Port | / |
| Service port description | • 48*100 /1000BASE-X SFP ports, 6*10G SFP+ ports |
| PoE+ | / |
| Dimensions (W×D×H, unit: mm ) | • 440× 360×43.6 |
| weight | • ≤ 4.5KG |
| Input voltage | • AC - Rated voltage range: 100V ~ 240V AC , 50/60Hz - Maximum voltage range: 90V ~ 264V AC , 47 ~ 63Hz • DC - Rated voltage range: -48V～-60V DC - Maximum voltage range: -36V～-72V DC |
| Power consumption (static) | • Single AC: 36W • Single DC: 38W • Dual AC: 43W • Dual DC: 43W |
| Power consumption (at full load) | • Single AC: 77W • Single DC: 77W • Dual AC: 80W • Dual DC: 84W |
| Fan | • 3 |
| MTBF(Year) | • 60.98 |
| MTTR(Hour) | • 1 |
| Working temperature | • -5℃～45℃ |
| Relative humidity of working environment (non-condensing) | • 5%～95% |
| Performance Specification | |
| MAC address entries | • 32768 |
| VLAN table | • 4094 |
| VLAN interface | • 1022 |
| IPv4 routing entries | • 12288 |
| IPv4 ARP entries | • 8192 |
| IPv4 ACL entries | • Ingress: 1280 • Egress: 512 |
| IPv4 multicast L2 entries | • 4000 |
| IPv4 multicast L3 entries | • 4000 |
| IPv6 unicast routing entries | • 4096 |
| QOS forward queues | • 8 |
| IPv6 ACL entries | • Ingress: 1280 • Egress: 512 |
| IPv6 ND entries | • 4096 |
| IPv6 multicast L2 entries | • 2000 |
| IPv6 multicast L3 entries | • 2000 |
| Jumbo frame length (Bytes) | • 12288 |
| Max Stacking Members | • 9 |
| Max Stacking Bandwidth | • 80Gbps |
| MAX num in one link group | • 8 |
| Link group num | • 126 |
LS-5570S-54F-EI-GL : H3C S5570S-54F-EI L3 Ethernet Switch with 48*1000BASE-X SFP Ports and 6*1G/10G BASE-X SFP Plus Ports, Without Power Supplies
Data sheet H3C S5570S-EI Series High Performance Intelligent Ethernet Switch
