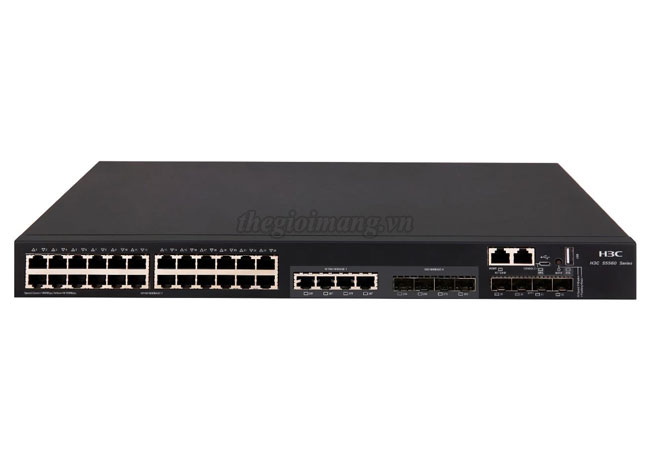

LS-5560X-34S-EI-GL - H3C S5560X-EI L3 Gigabit Switch :
Thiết bị chuyển mạch Switch H3C LS-5560X-34S-EI-GL
| Model | LS-5560X-34S-EI-GL |
| Hardware Specifications | |
| Port Switching capacity | • 288Gbps |
| Packet forwarding rate | • 216 Mpps |
| Box switching capacity | • 598Gbps |
| Dimensions (H × W × D) | • 43.6 × 440 × 260 mm (1.72 × 17.32 × 10.24 in) |
| Weight | • ≤ 3.6 kg (7.94 lb) |
| CPU | • Dual Core, 800MHz |
| Flash/SDRAM | • 1GB/2GB |
| Packet buffer | • 4M |
| Management Ethernet ports | • 1 |
| Console ports | • 1 × RJ-45 console port • 1 × Micro-USB console port • Only the Micro-USB console port is available when you connect both ports. |
| Service ports | • 28 × 10/100/1000Base-T autosensing Ethernet ports (including 4 combo interfaces) • 4 × 10G SFP+ ports • 2 × 40G QSFP+ ports |
| Expansion slots | • N/A |
| Compatible interface modules | • N/A |
| AC input voltage | • Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz • Max: 90 VAC to 264 VAC @ 47 Hz to 63 Hz |
| DC input voltage | • Rated: –48 VDC to –60 VDC • Max: –36 VDC to –72 VDC • You can use a –48 VDC power source in the equipment room or an H3C RPS (RPS800-A or RPS1600-A). |
| Min. power consumption | • Single AC input: 19 W |
| Max. power consumption | • Single AC input: 56 W • Single DC input: 57 W |
| MTBF(Year) | • 109.8 |
| MTTR(Hour) | • 1 |
| Operating temperature | • 0ºC to 45ºC (32°F to 113°F) • -60m-5000m altitude: From 0m, the maximum operating temperature reduce by 0.33℃ for every time 100 the altitude increases by 100m. |
| Storage temperature | • -40℃ to 70℃(-40℉ to 158℉) |
| Operating &storage humidity | • 5% RH to 95% RH, non-condensing |
| Performance Specification | |
| MAC address entries | • 65536 |
| VLAN table | • 4094 |
| VLAN interface | • 1024 |
| IPv4 routing entries | • 32768 |
| IPv4 ARP entries | • 32768 |
| IPv4 ACL entries | • Ingress: 2048 • Egress: 512 |
| IPv4 multicast L2 entries | • 4000 |
| IPv4 multicast L3 entries | • 4000 |
| IPv6 unicast routing entries | • 16384 |
| QOS forward queues | • 8 |
| IPv6 ACL entries | • Ingress: 2048 • Egress: 512 |
| IPv6 ND entries | • 16384 |
| IPv6 multicast L2 entries | • 4000 |
| IPv6 multicast L3 entries | • 2000 |
| Jumbo frame length (Bytes) | • 10000 |
| Max Stacking Members | • 9 |
| Max Stacking Bandwidth | • 160Gbps |
LS-5560X-34S-EI-GL : H3C S5560X-34S-EI L3 Ethernet Switch(28GE(4SFP Combo)+4SFP Plus+2QSFP Plus),(AC/DC)
