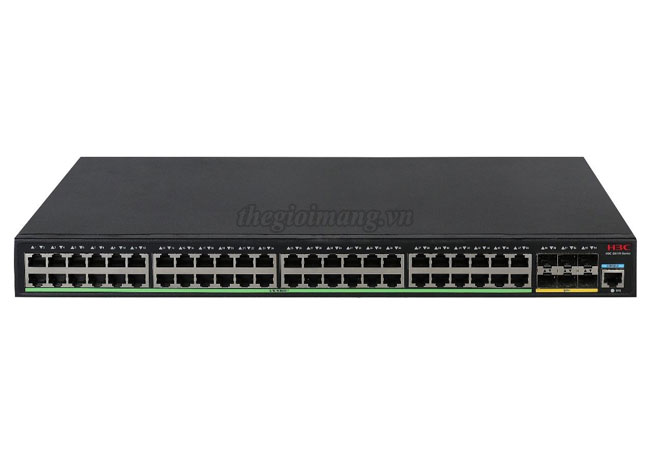

LS-5170-54S-EI-GL - H3C S5170-EI Gigabit Access Switch :
Thiết bị chuyển mạch Switch H3C LS-5170-54S-EI-GL
| Model | LS-5170-54S-EI-GL |
| Hardware Specifications | |
| Port Switching capacity(bps) | • 216Gbps |
| System Switching Capacity(bps) | • 598Gbps |
| Forwarding capacity | • 161Mpps |
| Flash | • 512M |
| SDRAM | • 1G |
| Buffer(byte) | • 2M |
| CPU | • 1GHz, 2Cores |
| Latency (64byte/µs) | • GE: < 5µs • 10GE < 3µs |
| Dimensions (W × D × H) | • 440mm×260mm ×43.6mm |
| Weight | • ≤ 4.0kg |
| 10/100/1000Base-T port | • 48 |
| SFP+ port | • 6 |
| Input voltage |
• AC: - Rated voltage range: 100V~240V AC, 50/60Hz - Max voltage range: 90V~ 264V AC, 47~63HZ |
| Power consumption (full configuration) | • 53W |
| Number of Fan | • 1 |
| MTBF(Year) | • 34.74 |
| MTTR(Hour) | • 1 |
| Operating temperature | • -5~45℃ |
| Storage temperature | • -40～+70℃ |
| Operating & storage relative humidity(noncondensing) | • 5%~95% |
| Performance Specification | |
| MAC address entries | • 32768 |
| VLAN table | • 4094 |
| VLAN interface | • 32 |
| IPv4 routing entries | • 6144 |
| IPv4 ARP entries | • 4096 |
| IPv4 ACL entries | • Ingress:1280 • Egress:512 |
| IPv4 multicast L2 entries | • 2000 |
| IPv4 multicast L3 entries | • 2000 |
| IPv6 unicast routing entries | • 2048 |
| QOS forward queues | • 8 |
| IPv6 ACL entries | • Ingress:1280 • Egress:512 |
| IPv6 ND entries | • 2048 |
| IPv6 multicast L2 entries | • 1000 |
| IPv6 multicast L3 entries | • 1000 |
| Jumbo frame length | • 12288 |
| Max Stacking Members | • 9 |
| Max Stacking Bandwidth | • 80Gbps |
| Max num in one link group | • 8 |
| Link group num | • 126 |
LS-5170-54S-EI-GL : H3C S5170-54S-EI L2 Ethernet Switch with 48*10/100/1000BASE-T Ports and 6*1G/10G BASE-X SFP Plus Ports,(AC)
Data sheet H3C S5170-EI Series Intelligent Gigabit Access Switches
