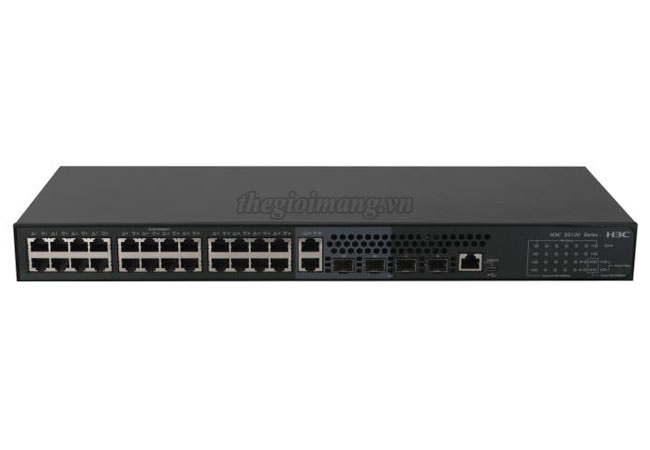

LS-5130S-28TP-EI-GL - H3C S5130S-EI Gigabit Access Switch :
Thiết bị chuyển mạch Switch H3C LS-5130S-28TP-EI-GL
Model | S5130S-28TP-EI |
Hardware Specifications | |
Port Switching Capacity | • 56Gbps |
Forwarding Capacity | • 42Mpps |
Box Switching Capacity | • 336Gbps |
CPU | • 1 Core, 800MHz |
Flash/SDRAM | • 256MB/512MB |
Latency (64byte/µs) | • GE: < 5µs • 10GE < 3µs |
Dimensions(W× D×H) | • 440×160×43.6 mm |
Weight | • ≤ 2kg |
10/100/1000 Base-T port | • 26 (2*SFP combo) |
SFP Port | • 2 |
SFP+ Port | / |
Multigiga Port | / |
Maximum Stacking Bandwidth | • 16Gbps |
Maximum Stacking num | • 9 |
Input Voltage | • AC: Rated voltage range: 100V~240V AC, 50/60Hz |
Power Consumption (full configuration) | • MIN: AC:10W • MAX: AC:24W |
Fan NUM | • Fanless |
MTBF(Year) | • 97.94 |
MTTR(Hour) | • 1 |
Operating Temperature | • -5℃ ~ 50℃(normal operating temperature) • -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) • -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) |
Storage Temperature | • -40℃ ~ 70℃ |
Operating & Storage Relative Humidity (noncondensing) | • 5% ~ 95% |
Performance Specification | |
MAC address entries | • 16K |
VLAN table | • 4094 |
VLAN interface | • 32 |
IPv4 routing entries | • 1024 |
IPv4 ARP entries | • 1024 |
IPv4 ACL entries | • 512 |
IPv4 multicast L2 entries | • 1000 |
IPv6 unicast routing entries | • 240 |
QOS forward queues | • 8 |
IPv6 ACL entries | • 512 |
IPv6 ND entries | • 240 |
Jumbo frame length | • 10240 |
MAX num in one link group | • 8 |
Link group num | • 124 |
LS-5130S-28TP-EI-GL : H3C S5130S-28TP-EI L2 Ethernet Switch with 24*10/100/1000Base-T Ports and 2*GE Combo Ports and 2*100/1000Base-X SFP Combo Ports and 2*1000Base-X SFP Ports,(AC)
Data sheet H3C S5130S-EI Series Enhanced Gigabit Access Switches
