LS-5130S-28MP-EI-GL - H3C S5130S-EI Gigabit Access Switch :
Thiết bị chuyển mạch Switch H3C LS-5130S-28MP-EI-GL
| Model | S5130S-28MP-EI |
| Hardware Specifications | |
| Port Switching Capacity | • 72Gbps |
| Forwarding Capacity | • 54Mpps |
| Box Switching Capacity | • 336Gbps |
| CPU | • 1 Core, 800MHz |
| Flash/SDRAM | • 256MB/512MB |
| Latency (64byte/µs) | • GE: < 5µs • 10GE < 3µs |
| Dimensions (W× D×H) | • 440×160×43.6 mm |
| Weight | • ≤ 2.5kg |
| 10/100/1000 Base-T Port | • 24 |
| SFP Port | • 2 |
| Multigiga Port | • 2*1/2.5/5G BASE-T |
| Maximum Stacking Bandwidth | • 16Gbps |
| Maximum Stacking Num | • 9 |
| Input Voltage | • AC: Rated voltage range: 100V~240V AC, 50/60Hz |
| Power Consumption(full configuration) | • MIN: AC:14W • MAX: AC:28W |
| Fan NUM | • 1 |
| MTBF(Year) | • 94.7 |
| MTTR(Hour) | • 1 |
| Operating Temperature | • -5℃ ~ 50℃(normal operating temperature) • -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) • -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) |
| Storage Temperature | • -40℃ ~ 70℃ |
| Operating & Storage Relative Humidity (noncondensing) | • 5% ~ 95% |
| Performance Specification | |
| MAC address entries | • 16K |
| VLAN table | • 4094 |
| VLAN interface | • 32 |
| IPv4 routing entries | • 1024 |
| IPv4 ARP entries | • 1024 |
| IPv4 ACL entries | • 512 |
| IPv4 multicast L2 entries | • 1000 |
| IPv6 unicast routing entries | • 240 |
| QOS forward queues | • 8 |
| IPv6 ACL entries | • 512 |
| IPv6 ND entries | • 240 |
| Jumbo frame length | • 10240 |
| MAX num in one link group | • 8 |
| Link group num | • 124 |

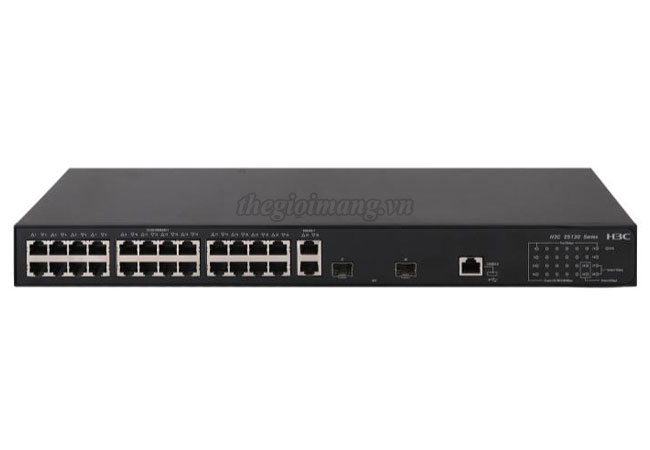

LS-5130S-28MP-EI-GL : H3C S5130S-28MP-EI L2 Ethernet Switch with 24*10/100/1000Base-T Ports,2*100/1000Base-X SFP Ports and 2*1/2.5/5GBase-T Ports, (AC)
Data sheet H3C S5130S-EI Series Enhanced Gigabit Access Switches
